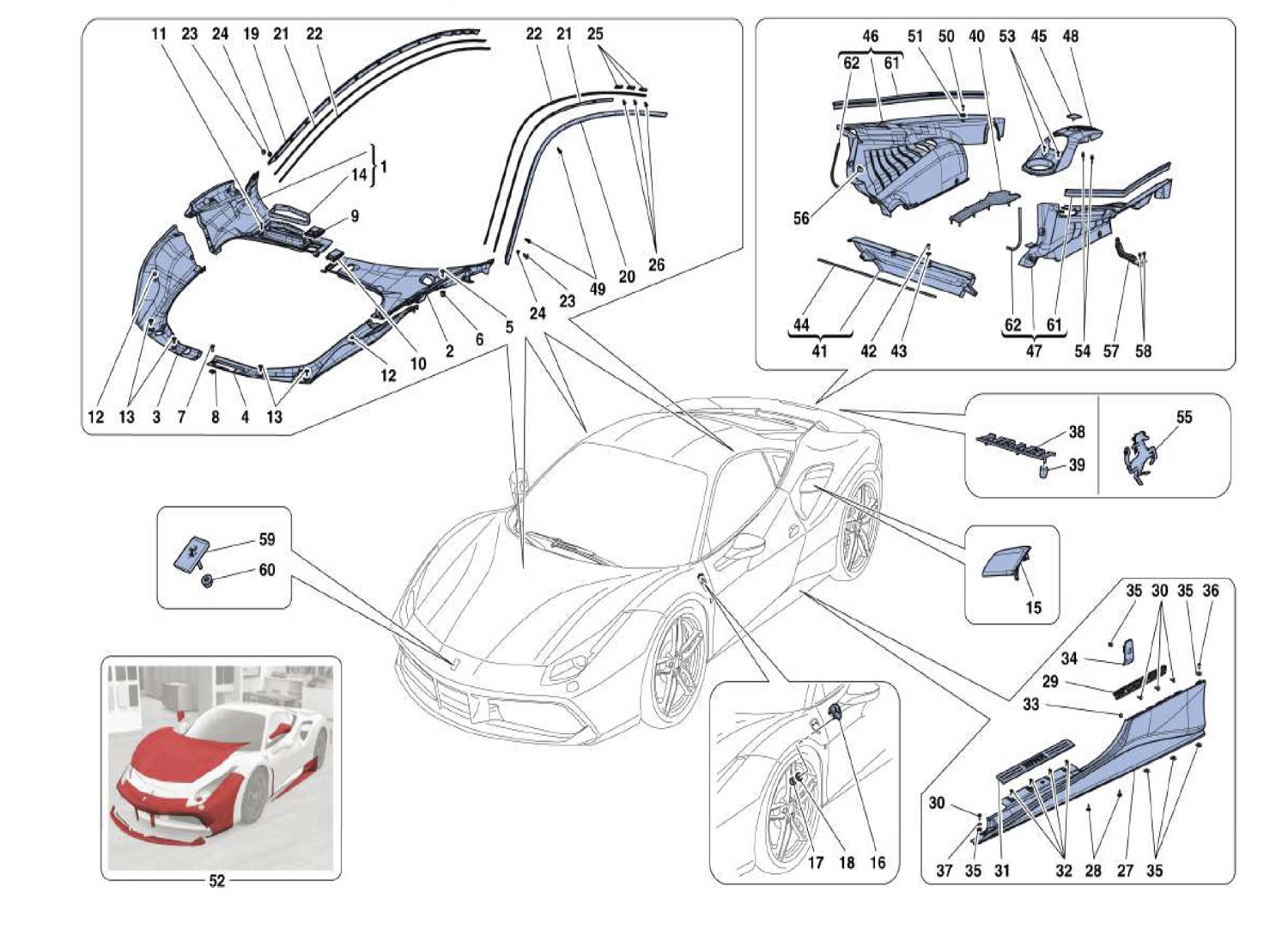

SHIELDS - EXTERNAL TRIM

Go to Split View

SHIELDS - EXTERNAL TRIM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 87980600 *Qty: 1 COMPL. RH UNDERWINDSCREEN TRAY -Not for GD- -Applicable up to Ass. No. 132691- -Applicable until depletion- $196.71
Location: 1 Prev | Next Part: 87980600 *Qty: 1 COMPL. RH UNDERWINDSCREEN TRAY -Not for GD- -Applicable from Ass. No. 132692- -Applicable after depletion of 87520200- $196.71
Location: 1 Prev | Next Part: 87980800 *Qty: 1 COMPL. RH UNDERWINDSCREEN TRAY -Applicable for GD- -Applicable up to Ass. No. 132691- -Applicable until depletion- $119.06
Location: 1 Prev | Next Part: 87980800 *Qty: 1 COMPL. RH UNDERWINDSCREEN TRAY -Applicable for GD- -Applicable from Ass. No. 132692- -Applicable after depletion of 87149300- $119.06
Location: 2 Prev | Next Part: 87519900 *Qty: 1 COMPL. LH UNDERWINDSCREEN TRAY -Not for GD- -Applicable up to Ass. No. 132691- -Applicable until depletion- Unavailable
Location: 2 Prev | Next Part: 87980500 *Qty: 1 COMPL. LH UNDERWINDSCREEN TRAY -Not for GD- -Applicable from Ass. No. 132692- -Applicable after depletion of 87519900- $119.06
Location: 2 Prev | Next Part: 87980700 *Qty: 1 COMPL. LH UNDERWINDSCREEN TRAY -Applicable for GD- -Applicable up to Ass. No. 132691- -Applicable until depletion- $196.71
Location: 2 Prev | Next Part: 87980700 *Qty: 1 COMPL. LH UNDERWINDSCREEN TRAY -Applicable for GD- -Applicable from Ass. No. 132692- -Applicable after depletion of 87149000- $196.71
Location: 3 Prev | Next Part: 87981300 *Qty: 1 COMPL. RH COSMETIC TRIM -Applicable up to Ass. No. 132691- -Applicable until depletion- $99.22
Location: 3 Prev | Next Part: 87981300 *Qty: 1 COMPL. RH COSMETIC TRIM -Applicable from Ass. No. 132692- -Applicable after depletion of 87520600- $99.22
Location: 4 Prev | Next Part: 87520400 *Qty: 1 COMPL. LH COSMETIC TRIM -Applicable up to Ass. No. 132691- -Applicable until depletion- Unavailable
Location: 4 Prev | Next Part: 87981200 *Qty: 1 COMPL. LH COSMETIC TRIM -Applicable from Ass. No. 132692- -Applicable after depletion of 87520400- $99.22
Location: 5 Prev | Next Part: 15538777 *Qty: 6 SCREW $0.90
Location: 6 Prev | Next Part: 14115885 *Qty: 6 BLOCK $0.90
Location: 7 Prev | Next Part: 85833800 *Qty: 12 SCREW Unavailable
Location: 8 Prev | Next Part: 62764200 *Qty: 0 CLIP FOR SCREW $0.90
Location: 9 Prev | Next Part: 82139100 *Qty: 1 RH UNDERWINDSCREEN TRAY PLUG -Not for GD- $8.83
Location: 10 Prev | Next Part: 82665700 *Qty: 1 LH UNDERWINDSCREEN TRAY PLUG -Not for GD- $8.83
Location: 10 Prev | Next Part: 87258900 *Qty: 1 LH UNDERWINDSCREEN TRAY PLUG -Applicable for GD- $12.46
Location: 11 Prev | Next Part: 15689809 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 14506587 *Qty: 2 CAP $0.90
Location: 13 Prev | Next Part: 83442900 *Qty: 4 SCREW -M6 X 22- $0.90
Location: 14 Prev | Next Part: 83807300 *Qty: 1 UPPER AIR DUCT SEAL -Not for GD- $12.46
Location: 15 Prev | Next Part: 87029400 *Qty: 1 LH FLANK FLOW SPLITTER -Carbon version- $1,559.85
Location: 15 Prev | Next Part: 87080600 *Qty: 1 RH FLANK FLOW SPLITTER -Carbon version- $1,559.85
Location: 16 Prev | Next Part: 86921300 *Qty: 2 "SQUADRA CORSE" SHIELD BADGE $971.94
Location: 17 Prev | Next Part: 16101711 *Qty: 6 NUT $0.90
Location: 18 Prev | Next Part: 12642878 *Qty: 6 WASHER $0.90
Location: 19 Prev | Next Part: 86728110 *Qty: 1 RH ROOF GUTTER MOULDING $498.43
Location: 20 Prev | Next Part: 86728210 *Qty: 1 LH ROOF GUTTER MOULDING $498.43
Location: 21 Prev | Next Part: 87015700 *Qty: 2 ROOF GUTTER MOULDING SEAL $25.98
Location: 22 Prev | Next Part: 87546900 *Qty: 2 ADHESIVE SPACER -No longer supplied- -Replaced by 87546900- Unavailable
Location: 22 Prev | Next Part: 87546900 *Qty: 2 ADHESIVE SPACER Unavailable
Location: 23 Prev | Next Part: 15538777 *Qty: 18 SCREW $0.90
Location: 24 Prev | Next Part: 14214880 *Qty: 18 BLOCK -No longer supplied- -Replaced by 14215480- $0.90
Location: 24 Prev | Next Part: 14215480 *Qty: 18 BLOCK Superseded
Location: 25 Prev | Next Part: 86746200 *Qty: 6 CLIP $2.76
Location: 26 Prev | Next Part: 64460500 *Qty: 6 SCREW -No longer supplied- -Replaced by 85692000- $1.29
Location: 26 Prev | Next Part: 85692000 *Qty: 6 SCREW -M5 X 10- $0.90
Location: 27 Prev | Next Part: 86612310 *Qty: 1 LH UNDERDOOR TRIM $1,000.79
Location: 27 Prev | Next Part: 86936410 *Qty: 1 LH UNDERDOOR TRIM -Carbon version- $9,594.87
Location: 27 Prev | Next Part: 86612010 *Qty: 1 RH UNDERDOOR TRIM $1,000.79
Location: 27 Prev | Next Part: 86936210 *Qty: 1 RH UNDERDOOR TRIM -Carbon version- $9,594.87
Location: 28 Prev | Next Part: 83442900 *Qty: 10 SCREW -M6 X 22- $0.90
Location: 29 Prev | Next Part: 86785800 *Qty: 1 LH SILL FASTENER BRACKET $14.84
Location: 29 Prev | Next Part: 86785900 *Qty: 1 RH SILL FASTENER BRACKET $14.84
Location: 30 Prev | Next Part: 11625824 *Qty: 8 SCREW -M6 X 18- $0.90
Location: 31 Prev | Next Part: 86786000 *Qty: 1 LH KICKPLATE $246.75
Location: 31 Prev | Next Part: 86538200 *Qty: 1 LH KICKPLATE -Carbon version- $914.52
Location: 31 Prev | Next Part: 86786100 *Qty: 1 RH KICKPLATE $246.75
Location: 31 Prev | Next Part: 86538300 *Qty: 1 RH KICKPLATE -Carbon version- $914.52
Location: 32 Prev | Next Part: 80874200 *Qty: 8 SCREW $0.97
Location: 33 Prev | Next Part: 80874800 *Qty: 2 CLIP $3.91
Location: 34 Prev | Next Part: 86612400 *Qty: 1 LOWER LH SILL BRACKET $186.91
Location: 34 Prev | Next Part: 86612500 *Qty: 1 LOWER RH SILL BRACKET $186.91
Location: 35 Prev | Next Part: 14189071 *Qty: 10 BRACKET FOR SCREWS $0.90
Location: 35 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.90
Location: 36 Prev | Next Part: 65864100 *Qty: 2 SCREW -M6 X 15- $1.61
Location: 37 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 38 Prev | Next Part: 63482200 *Qty: 1 "FERRARI" BADGE $80.99
Location: 39 Prev | Next Part: 88074800 *Qty: 3 CLIP -No longer supplied- -Replaced by 88074800- $0.90
Location: 39 Prev | Next Part: 88074800 *Qty: 3 CLIP $0.90
Location: 40 Prev | Next Part: 325368 *Qty: 1 COSMETIC COVER MESH -No longer supplied- -Replaced by 325368- $423.68
Location: 40 Prev | Next Part: 325368 *Qty: 1 COSMETIC MESH TRIM $423.68
Location: 41 Prev | Next Part: 86422300 *Qty: 1 COMPL. UNDERSCREEN COSMETIC SHIELD $125.10
Location: 41 Prev | Next Part: 86421900 *Qty: 1 COMPL. UNDERSCREEN COSMETIC SHIELD -Carbon- $1,811.78
Location: 42 Prev | Next Part: 85833800 *Qty: 4 SCREW Unavailable
Location: 43 Prev | Next Part: 62769800 *Qty: 4 WASHER $0.90
Location: 44 Prev | Next Part: 86422300 *Qty: 1 UNDERSCREEN SHIELD SEAL $125.10
Location: 44 Prev | Next Part: 86421900 *Qty: 1 UNDERSCREEN SHIELD SEAL -Applicable for carbon shield- $1,811.78
Location: 45 Prev | Next Part: 87422500 *Qty: 1 PLATE $74.77
Location: 46 Prev | Next Part: 86258200 *Qty: 1 COMPL. RH LATERAL COSMETIC SHIELD $106.12
Location: 46 Prev | Next Part: 86422600 *Qty: 1 COMPL. RH LATERAL COSMETIC SHIELD -Carbon- $2,236.25
Location: 47 Prev | Next Part: 86258000 *Qty: 1 COMPL. LH LATERAL COSMETIC SHIELD $106.12
Location: 47 Prev | Next Part: 86423100 *Qty: 1 COMPL. LH LATERAL COSMETIC SHIELD -Carbon- $2,236.25
Location: 48 Prev | Next Part: 86921700 *Qty: 1 COMPL. CENTRAL COSMETIC SHIELD $38.82
Location: 48 Prev | Next Part: 86935100 *Qty: 1 COMPL. CENTRAL COSMETIC SHIELD -Carbon- $1,199.22
Location: 49 Prev | Next Part: 15689501 *Qty: 6 SCREW Superseded
Location: 50 Prev | Next Part: 85833800 *Qty: 8 SCREW Unavailable
Location: 51 Prev | Next Part: 62769800 *Qty: 8 WASHER $0.90
Location: 52 Prev | Next Part: 70003771 *Qty: 1 COMPL. FILM KIT -Not for USA $2,565.89
Location: 52 Prev | Next Part: 70004018 *Qty: 1 COMPL. FILM KIT -Applicable for USA $3,078.26
Location: 52 Prev | Next Part: 70003772 *Qty: 1 FRONT ADHESIVE FILM KIT -Not for USA $1,772.33
Location: 52 Prev | Next Part: 70004019 *Qty: 1 FRONT ADHESIVE FILM KIT -Applicable for USA $1,958.89
Location: 52 Prev | Next Part: 70003773 *Qty: 1 RH SIDE FILM KIT $1,495.89
Location: 52 Prev | Next Part: 70003774 *Qty: 1 LH SIDE FILM KIT $1,495.89
Location: 52 Prev | Next Part: 70003775 *Qty: 1 HIGH WEAR FILM KIT $310.52
Location: 53 Prev | Next Part: 65864100 *Qty: 2 SCREW -M6 X 15- $1.61
Location: 54 Prev | Next Part: 85797600 *Qty: 2 SPECIAL SCREW $32.43
Location: 55 Prev | Next Part: 82059100 *Qty: 1 CAVALLINO RAMPANTE -No longer supplied- -Replaced by 60032109- $78.13
Location: 55 Prev | Next Part: 60032109 *Qty: 1 CAVALLINO RAMPANTE BADGE $41.50
Location: 56 Prev | Next Part: 14054077 *Qty: 2 NUT $2.33
Location: 57 Prev | Next Part: 87347300 *Qty: 1 LOWER LH SHIELD BRACKET $36.24
Location: 57 Prev | Next Part: 87347400 *Qty: 1 LOWER RH SHIELD BRACKET $36.24
Location: 58 Prev | Next Part: 16296934 *Qty: 4 SCREW -M6 X 14- $0.90
Location: 59 Prev | Next Part: 65394800 *Qty: 1 FRONT BADGE $231.22
Location: 60 Prev | Next Part: 169180 *Qty: 1 NUT -Not for GD- Unavailable
Location: 61 Prev | Next Part: 86553700 *Qty: 2 LATERAL SEAL FOR LATERAL SHIELD -Not for carbon centre bulkhead- -After depletion Unavailable
Location: 62 Prev | Next Part: 86553800 *Qty: 2 FRONT SEAL FOR LATERAL SHIELD -Not for carbon centre bulkhead- -After depletion Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
