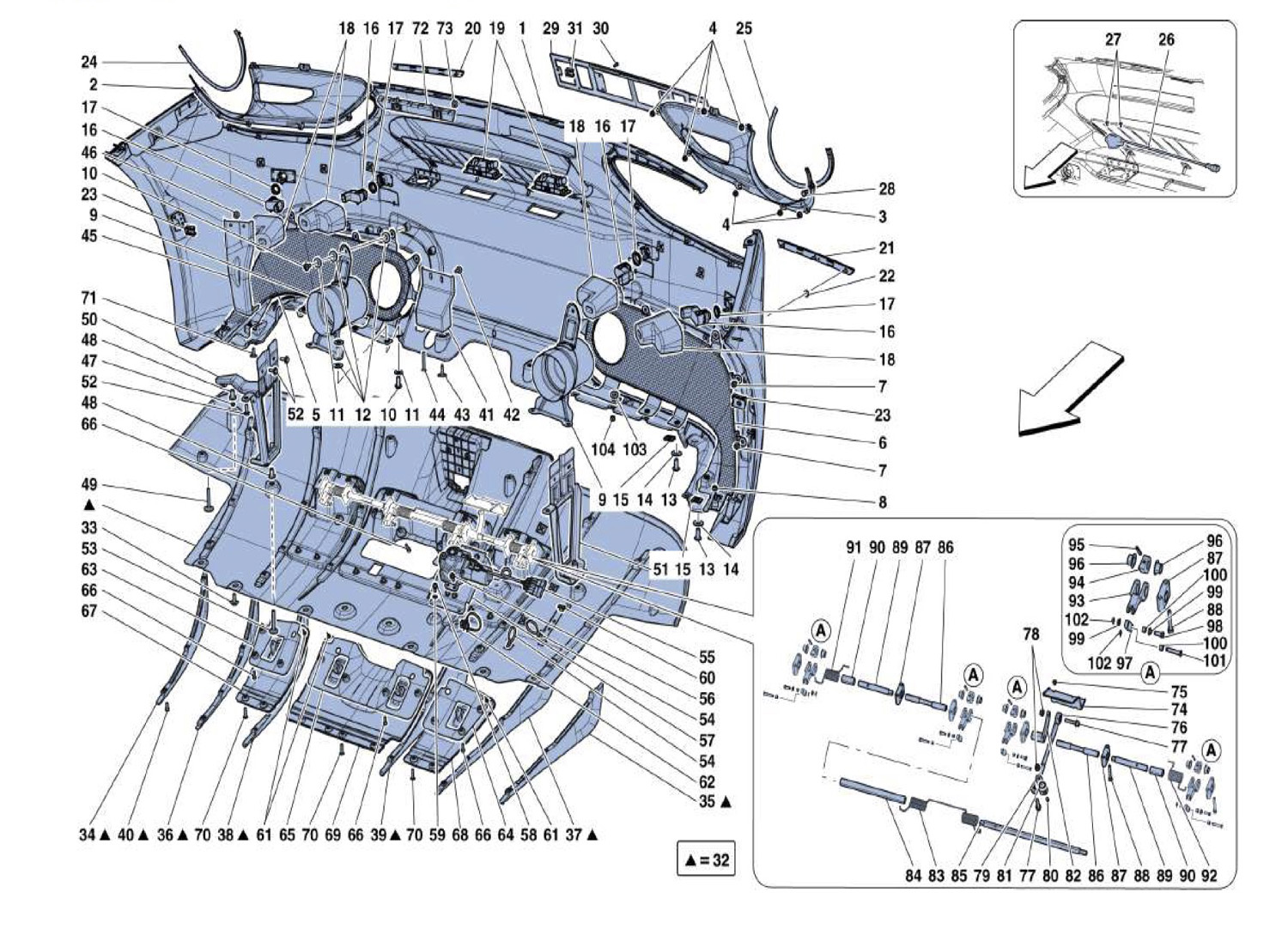

REAR BUMPER

Location Part # Quantity* Description Price Add To Cart
1 86637810 1 COMPL. REAR BUMPER -Applicable for Korea- -Not for USA Unavailable
1 86813610 1 COMPL. REAR BUMPER -Not applicable for Korea- -Applicable for USA Unavailable
2 86638900 1 RH LIGHT LATERAL SURROUND Unavailable
2 86937700 1 RH LIGHT LATERAL SURROUND -Carbon- $4,089.41
3 86638800 1 LH LIGHT LATERAL SURROUND Unavailable
3 86937600 1 LH LIGHT LATERAL SURROUND -Carbon- $4,089.41
4 14039414 14 NUT -No longer supplied- -Replaced by 87940800- $0.90
4 87940800 14 NUT $4.75
5 86639000 1 LOWER RH GRILLE $535.90
6 86639100 1 LOWER LH GRILLE $535.90
7 289834 14 SCREW -M6 X 10- Unavailable
8 14039414 2 NUT $0.90
9 86648400 2 COMPL. TAILPIPE TIP $535.90
9 86370800 2 COMPL. TAILPIPE TIP -Black- $1,153.02
9 86371000 2 COMPL. TAILPIPE TIP -Titanium- $3,113.72
10 65864100 2 SCREW -M6 X 15- Unavailable
10 67653800 4 SCREW -M6 X 25- $9.18
11 12642878 6 WASHER Unavailable
12 81078500 12 WASHER $1.42
13 65864100 6 SCREW -M6 X 15- Unavailable
14 12642878 6 WASHER Unavailable
15 14369274 4 BRACKET Unavailable
16 295361 4 PARKING SENSOR $87.68
17 81544800 4 CLEAR SILICONE RING $11.71
18 85309700 4 CENTRE HEAT SHIELD -No longer supplied- -Replaced by 88135100- Unavailable
18 88135100 4 CENTRE HEAT SHIELD $122.49
19 264480 2 REAR LICENSE PLATE LIGHT Unavailable
20 84806800 1 RH REFLECTOR $19.47
21 84806900 1 LH REFLECTOR $19.47
22 84784600 6 WASHER FOR PIN Unavailable
23 62766300 2 CLIP -Not for carbon bumpers- Unavailable
23 14371574 2 CLIP FOR SCREW -Applicable for carbon bumpers- $2.52
24 87380500 1 RH LIGHT SEAL -Not for carbon bumpers- $178.62
25 87380400 1 LH LIGHT SEAL -Not for carbon bumpers- $143.60
26 314630 1 BATTERY CONDITIONER SOCKET $483.12
27 65752800 2 SCREW -M4 X 10- $2.88
28 15687970 2 SCREW -Not for USA Unavailable
28 15687909 2 SCREW $4.59
29 87387100 1 REAR LICENSE PLATE MOUNTING -Applicable for EU GS $126.57
29 87387200 1 REAR LICENSE PLATE MOUNTING -Applicable for J- $103.23
29 87387000 1 REAR LICENSE PLATE MOUNTING -Applicable for CINA- $285.44
29 87387300 1 REAR LICENSE PLATE MOUNTING -Applicable for AUS- $162.48
29 87386900 1 REAR LICENSE PLATE MOUNTING -Applicable for USA $149.90
29 87941900 1 REAR LICENSE PLATE MOUNTING -Applicable for GOLFO- $149.08
30 15688075 4 SCREW $0.90
31 62766300 2 CLIP Unavailable
32 86639400 1 COMPL. AERODYNAMIC EXTRACTOR $2,106.84
32 86371600 1 COMPL. AERODYNAMIC EXTRACTOR -Carbon- Unavailable
33 81290900 8 SCREW Unavailable
34 86640100 1 RH OUTER FIN $1,121.55
35 86639900 1 LH OUTER FIN $1,121.55
36 86640300 1 RH CENTRAL FIN $1,156.06
37 86640200 1 LH CENTRAL FIN $1,156.06
38 86640500 1 RH INNER FIN $1,156.06
39 86640400 1 LH INNER FIN $1,156.06
40 65752800 20 SCREW -M4 X 10- $2.88
41 86843500 1 RH INTERNAL BRACKET Unavailable
41 88135300 1 LH INTERNAL BRACKET $94.88
42 11625824 4 SCREW -M6 X 18- Unavailable
43 83442900 2 SCREW -M6 X 22- Unavailable
44 83554200 2 SCREW $0.90
45 86842900 1 RH OUTER BRACKET Unavailable
45 88135500 1 LH OUTER BRACKET $75.90
46 11625824 4 SCREW -M6 X 18- Unavailable
47 83314300 2 SHIM Unavailable
48 320219 4 PIN $5.16
49 85687400 2 SCREW -M6 X 47- $4.55
50 86843900 1 COMPL. FLOOR BRACKET AND VACUUM TANK $148.37
51 86844100 1 COMPL. LH AERODYNAMIC FLOOR BRACKET -Not for USA $151.82
51 86844100 1 COMPL. LH AERODYNAMIC FLOOR BRACKET -Applicable for USA $151.82
51 86844100 1 COMPL. LH AERODYNAMIC FLOOR BRACKET -Applicable for USA $151.82
52 11625824 6 SCREW -M6 X 18- Unavailable
53 85687400 2 SCREW -M6 X 47- $4.55
54 10815787 2 RING CLAMP Unavailable
55 318998 1 ELECTRIC ACTUATOR $1,991.00
56 231618 4 SCREW -M6 X 20- Unavailable
57 85837700 1 ACTUATOR MOUNT $84.53
58 231616 4 SCREW -M6 X 14- Unavailable
59 13579221 4 WASHER Unavailable
60 204781 1 FASTENER CLIP $1.16
61 84918500 6 RUBBER BUMPER $5.16
62 255869 1 ANGLE CLIP $2.72
63 86640700 1 RH ACTIVE AERO LATERAL COVER $13.46
64 86640800 1 LH ACTIVE AERO LATERAL COVER $15.69
65 86640600 1 ACTIVE AERO CENTRE COVER $16.16
66 14304624 10 SCREW Unavailable
67 86641000 1 RH LATERAL HATCH $327.82
67 86372500 1 RH LATERAL HATCH -Carbon- $1,938.83
68 86641200 1 LH LATERAL HATCH $327.82
68 86372600 1 LH LATERAL HATCH -Carbon- $1,938.83
69 86640900 1 CENTRAL HATCH $465.86
69 86372400 1 CENTRAL HATCH -Carbon- $3,195.61
70 85692300 8 SCREW -M5 X 20- Unavailable
71 65933500 2 SCREW Unavailable
72 86670300 1 RH SPOILER BRACKET $15.25
72 86647800 1 LH SPOILER BRACKET $15.25
73 11625824 4 SCREW -M6 X 18- Unavailable
74 309215 1 HEAT SHIELD $12.59
75 309629 2 SCREW -M4 X 8- -No longer supplied- -Replaced by 309629- $3.33
75 309629 2 SCREW -M4 X 8- $3.33
76 85950400 1 TIE-ROD $207.04
77 231621 2 SCREW -M6 X 30- Unavailable
78 301909 2 SELF-LOCKING NUT $2.27
79 85710400 1 DRIVE LEVER -No longer supplied- -Replaced by 318985- $94.64
79 318985 1 DRIVE LEVER $101.78
80 301918 1 GRUB SCREW $1.16
81 14453181 1 GASKET $1.40
82 318983 1 SHAFT DRIVE LEVER -No longer supplied- -Replaced by 318983- $81.08
82 318983 1 SHAFT DRIVE LEVER $81.08
83 85709000 1 CENTRE RETURN SPRING $34.49
84 85709300 1 CENTRAL SPACER $24.34
85 85708700 1 CENTRE SHAFT SECTION $134.57
86 85709900 2 RH FLEXIBLE SHAFT Unavailable
87 85708900 6 SHAFT MOUNT $24.14
88 301785 12 SCREW Unavailable
89 85708800 2 LATERAL SHAFT SECTION $67.27
90 85709400 2 LATERAL SPACER $11.25
91 310109 1 RH RETURN SPRING $18.96
92 310110 1 LH RETURN SPRING $18.96
93 85709500 4 HATCH ACTUATOR LINK -No longer supplied- -Replaced by 318981 $107.61
93 318981 4 HATCH ACTUATOR LINK $91.43
94 85709800 4 CONTROL CAM -No longer supplied- -Replaced by 328330- $132.84
94 328330 4 CONTROL CAM $5.16
95 85711800 4 DRIVE PIN $1.97
96 85711700 8 BUSHING $4.41
97 85709700 4 LATERAL LINK $46.57
98 306757 4 PIN $13.97
99 87804600 8 BUSHING $1.97
100 85712200 8 BUSH FOR LINK PIN $2.27
101 85712100 4 LOWER LINK PINS $18.96
102 306350 8 SAFETY CLIP $1.97
103 288610 4 WASHER $5.22
104 15896211 4 NUT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
