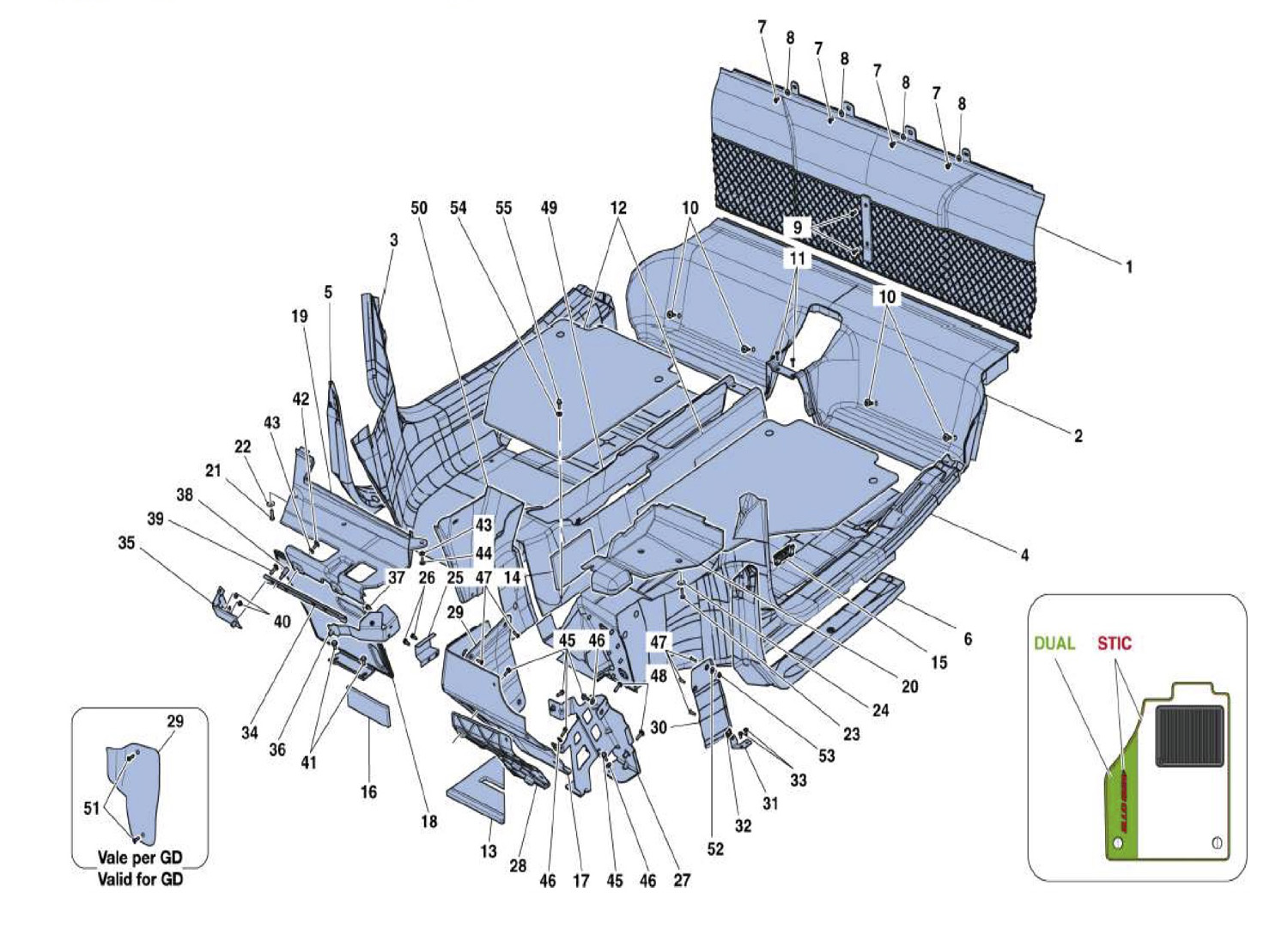

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86488600 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -1MAT- -Mat- -Not for USA $4,321.45
Location: 1 Prev | Next Part: 87179500 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -1MAT- -Mat- -Applicable for USA $4,321.45
Location: 1 Prev | Next Part: 87373512 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -INTP- -Leather- -Not for USA $4,321.45
Location: 1 Prev | Next Part: 87374600 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -INTP- -Leather- -Applicable for USA Unavailable
Location: 1 Prev | Next Part: 87303900 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -INTA- -Alcantara- -Code not currently orderable- -Not for USA Unavailable
Location: 1 Prev | Next Part: 87304400 *Qty: 1 COMPL. REAR VERTICAL WALL TRIM -INTA- -Alcantara- -Code not currently orderable- -Applicable for USA Unavailable
Location: 2 Prev | Next Part: 86421700 *Qty: 1 REAR BENCH MAT -1MAT- -Mat- $1,271.00
Location: 2 Prev | Next Part: 87304200 *Qty: 1 REAR BENCH MAT -INTP- -Leather- -Version with lower centre tunnel console in leather- -Code not currently orderable- Unavailable
Location: 2 Prev | Next Part: 87350000 *Qty: 1 REAR BENCH MAT -INTA- -Alcantara- -Version with lower centre tunnel console in Alcantara- -Code not currently orderable- Unavailable
Location: 3 Prev | Next Part: 86578112 *Qty: 1 RH FLOOR MAT -1MAT- -Mat- -Not for GOLFO $3,813.03
Location: 3 Prev | Next Part: 87348312 *Qty: 1 RH FLOOR MAT -1MAT- -Mat- -Version with extinguisher- -Not for GD- Unavailable
Location: 3 Prev | Next Part: 87186800 *Qty: 1 RH FLOOR MAT -1MAT- -Mat- -Applicable for GD- Unavailable
Location: 4 Prev | Next Part: 86495612 *Qty: 1 LH FLOOR MAT -1MAT- -Mat- -Not for GD- Unavailable
Location: 4 Prev | Next Part: 87186600 *Qty: 1 LH FLOOR MAT -1MAT- -Mat- -Applicable for GD- $3,813.03
Location: 4 Prev | Next Part: 87186300 *Qty: 1 LH FLOOR MAT -1MAT- -Mat- -Version with extinguisher- -Applicable for GD- Unavailable
Location: 5 Prev | Next Part: 84097200 *Qty: 1 PAD FOR RH SILL -Not for GD- $63.02
Location: 5 Prev | Next Part: 84097400 *Qty: 1 PAD FOR RH SILL -Applicable for GD- $92.47
Location: 6 Prev | Next Part: 84097300 *Qty: 1 PAD FOR LH SILL -Not for GD- $64.12
Location: 6 Prev | Next Part: 84097500 *Qty: 1 PAD FOR LH SILL -Applicable for GD- $76.44
Location: 7 Prev | Next Part: 85833700 *Qty: 4 SCREW -M5 X 14- Unavailable
Location: 8 Prev | Next Part: 12647600 *Qty: 4 WASHER Unavailable
Location: 9 Prev | Next Part: 86077300 *Qty: 2 SCREW Unavailable
Location: 10 Prev | Next Part: 83956900 *Qty: 4 SCREW $7.54
Location: 11 Prev | Next Part: 13311077 *Qty: 2 SCREW -Not for USA $0.90
Location: 12 Prev | Next Part: 832360 *Qty: 1 REMOVABLE MAT KIT -Mat- -Not for GOLFO Unavailable
Location: 12 Prev | Next Part: 836347 *Qty: 1 REMOVABLE MAT KIT -Mat- -Applicable for GD- Unavailable
Location: 12 Prev | Next Part: 832363 *Qty: 1 REMOVABLE MAT KIT -Mat- -Version with extinguisher- -Not for GD- Unavailable
Location: 12 Prev | Next Part: 839131 *Qty: 1 REMOVABLE MAT KIT -Mat- -Version with extinguisher- -Applicable for GD-REMOVABLE MAT KIT -1MAT- -Mat- -Version with logo- -DUAL- -STIC- -1MAT for mat colour Unavailable
Location: 12 Prev | Next Part: 87528212 *Qty: 1 selection $1,513.61
Location: 12 Prev | Next Part: 87528412 *Qty: 1 selection $1,513.61
Location: 12 Prev | Next Part: 87528312 *Qty: 1 REMOVABLE MAT KIT -1MAT- -Mat- -Version with logo- -Version with extinguisher- -DUAL- -STIC- -1MAT for mat colour selection $1,513.61
Location: 12 Prev | Next Part: 87528512 *Qty: 1 REMOVABLE MAT KIT -1MAT- -Mat- -Version with logo- -Version with extinguisher- -DUAL- -STIC- -1MAT for mat colour selection $1,513.61
Location: 13 Prev | Next Part: 87510200 *Qty: 1 DRIVER SIDE FLOOR ETHOFOAM -Not for GD- $13.20
Location: 14 Prev | Next Part: 87510300 *Qty: 1 DRIVER SIDE TUNNEL ETHOFOAM $9.33
Location: 15 Prev | Next Part: 69987700 *Qty: 2 MAT FASTENER PROFILE $15.63
Location: 16 Prev | Next Part: 142798 *Qty: 1 RUBBER SHIM -Standard- -Not for AUS- $1.60
Location: 17 Prev | Next Part: 87511000 *Qty: 1 ACCELERATOR PEDAL GUARD -1MAT- -Mat- -Not for GD- $381.30
Location: 17 Prev | Next Part: 827927 *Qty: 1 ACCELERATOR PEDAL GUARD -Mat- -Applicable for GD- Unavailable
Location: 18 Prev | Next Part: 842591 *Qty: 1 PASSENGER SIDE FOOTREST -Mat- -Not for GD- Unavailable
Location: 18 Prev | Next Part: 87548600 *Qty: 1 PASSENGER SIDE FOOTREST -1MAT- -Mat- -Applicable for GD- Unavailable
Location: 19 Prev | Next Part: 86578300 *Qty: 1 RH UNDERDASHBOARD SHIELD -1MAT- -Mat- -Not for GD- $381.30
Location: 19 Prev | Next Part: 87541700 *Qty: 1 RH UNDERDASHBOARD SHIELD -1MAT- -Mat- -Applicable for GD- Unavailable
Location: 20 Prev | Next Part: 86578400 *Qty: 1 LH UNDERDASHBOARD SHIELD -1MAT- -Mat- -Not for GD- $381.30
Location: 20 Prev | Next Part: 87541600 *Qty: 1 LH UNDERDASHBOARD SHIELD -1MAT- -Mat- -Applicable for GD- $177.93
Location: 21 Prev | Next Part: 64830600 *Qty: 2 SCREW -M6 X 22- $1.92
Location: 22 Prev | Next Part: 12647727 *Qty: 2 WASHER Unavailable
Location: 23 Prev | Next Part: 85833900 *Qty: 2 SCREW -M5 X 16- Unavailable
Location: 24 Prev | Next Part: 12647727 *Qty: 2 WASHER Unavailable
Location: 25 Prev | Next Part: 87499000 *Qty: 1 AIRBAG ECU CONNECTION GUARD BRACKET $9.68
Location: 26 Prev | Next Part: 11584821 *Qty: 2 SCREW -Not for GD- $1.07
Location: 27 Prev | Next Part: 85184000 *Qty: 1 DRIVER SIDE FOOTREST MOUNTING BRACKET -Not for GD- $120.72
Location: 27 Prev | Next Part: 84293400 *Qty: 1 DRIVER SIDE FOOTREST MOUNTING BRACKET -Applicable for GD- $73.44
Location: 28 Prev | Next Part: 83868700 *Qty: 1 REINFORCEMENT PLATE $34.96
Location: 29 Prev | Next Part: 85853400 *Qty: 1 RH STAINLESS STEEL COSMETIC COVER $24.66
Location: 29 Prev | Next Part: 83029100 *Qty: 1 RH STAINLESS STEEL COSMETIC COVER $50.85
Location: 30 Prev | Next Part: 82679200 *Qty: 1 LH STAINLESS STEEL COSMETIC COVER $20.65
Location: 31 Prev | Next Part: 82925800 *Qty: 1 LH COSMETIC COVER FASTENER BRACKET -Not for GD- $12.08
Location: 32 Prev | Next Part: 66927700 *Qty: 1 BRACKET WITH COLLAR $1.24
Location: 33 Prev | Next Part: 85692200 *Qty: 2 SCREW -M5 X 12- Unavailable
Location: 34 Prev | Next Part: 87549500 *Qty: 1 FOOTREST MOUNTING BRACKET -Not for USA $48.40
Location: 34 Prev | Next Part: 87837700 *Qty: 1 FOOTREST MOUNTING BRACKET -Applicable for USA $48.40
Location: 35 Prev | Next Part: 83216100 *Qty: 1 RH TUBE FASTENER BRACKET -Not for USA $44.50
Location: 35 Prev | Next Part: 87837800 *Qty: 1 RH TUBE FASTENER BRACKET -Applicable for USA $61.60
Location: 35 Prev | Next Part: 87500300 *Qty: 1 RH TUBE FASTENER BRACKET -Applicable for GD- $108.24
Location: 36 Prev | Next Part: 83216200 *Qty: 1 LH TUBE FASTENER BRACKET -Not for GD- $68.64
Location: 36 Prev | Next Part: 83216400 *Qty: 1 LH TUBE FASTENER BRACKET -Applicable for GD- $43.60
Location: 37 Prev | Next Part: 16285124 *Qty: 2 SCREW -M5 X 16- Unavailable
Location: 38 Prev | Next Part: 212519 *Qty: 1 STUD BOLT $7.11
Location: 39 Prev | Next Part: 64830600 *Qty: 2 SCREW -M6 X 22- $1.92
Location: 40 Prev | Next Part: 14059111 *Qty: 2 NUT Unavailable
Location: 41 Prev | Next Part: 11625714 *Qty: 2 SCREW -M6 X 16- Unavailable
Location: 42 Prev | Next Part: 85833700 *Qty: 2 SCREW -M5 X 14- Unavailable
Location: 43 Prev | Next Part: 12644401 *Qty: 3 WASHER Superseded
Location: 44 Prev | Next Part: 85692200 *Qty: 1 SCREW -M5 X 12- Unavailable
Location: 45 Prev | Next Part: 16285124 *Qty: 8 SCREW -M5 X 16- Unavailable
Location: 46 Prev | Next Part: 12638124 *Qty: 5 WASHER $0.90
Location: 47 Prev | Next Part: 13311117 *Qty: 7 SCREW Unavailable
Location: 48 Prev | Next Part: 66091000 *Qty: 2 SCREW $3.32
Location: 49 Prev | Next Part: 86495400 *Qty: 1 REAR TUNNEL TRIM -1MAT- -Mat- $635.50
Location: 49 Prev | Next Part: 87304100 *Qty: 1 REAR TUNNEL TRIM -INTP- -Leather- -Code not currently orderable- Unavailable
Location: 49 Prev | Next Part: 87350100 *Qty: 1 REAR TUNNEL TRIM -INTA- -Alcantara- -Code not currently orderable- Unavailable
Location: 50 Prev | Next Part: 87510100 *Qty: 1 FRONT TUNNEL TRIM -1MAT- -Mat- -Not for GD- $419.43
Location: 50 Prev | Next Part: 87466000 *Qty: 1 FRONT TUNNEL TRIM -1MAT- -Mat- -Applicable for GD- Unavailable
Location: 50 Prev | Next Part: 87804500 *Qty: 1 FRONT TUNNEL TRIM -INTP- -Leather- -Code not currently orderable- -Not for GD- Unavailable
Location: 50 Prev | Next Part: 87465800 *Qty: 1 FRONT TUNNEL TRIM -INTP- -Leather- -Code not currently orderable- -Applicable for GD- Unavailable
Location: 51 Prev | Next Part: 13311477 *Qty: 2 SCREW -M5 X 25- -Applicable for GD- Unavailable
Location: 52 Prev | Next Part: 12640678 *Qty: 2 WASHER $2.10
Location: 53 Prev | Next Part: 14059111 *Qty: 2 NUT Unavailable
Location: 54 Prev | Next Part: 13337507 *Qty: 8 WASHER FOR SCREW $1.60
Location: 55 Prev | Next Part: 13310877 *Qty: 8 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
