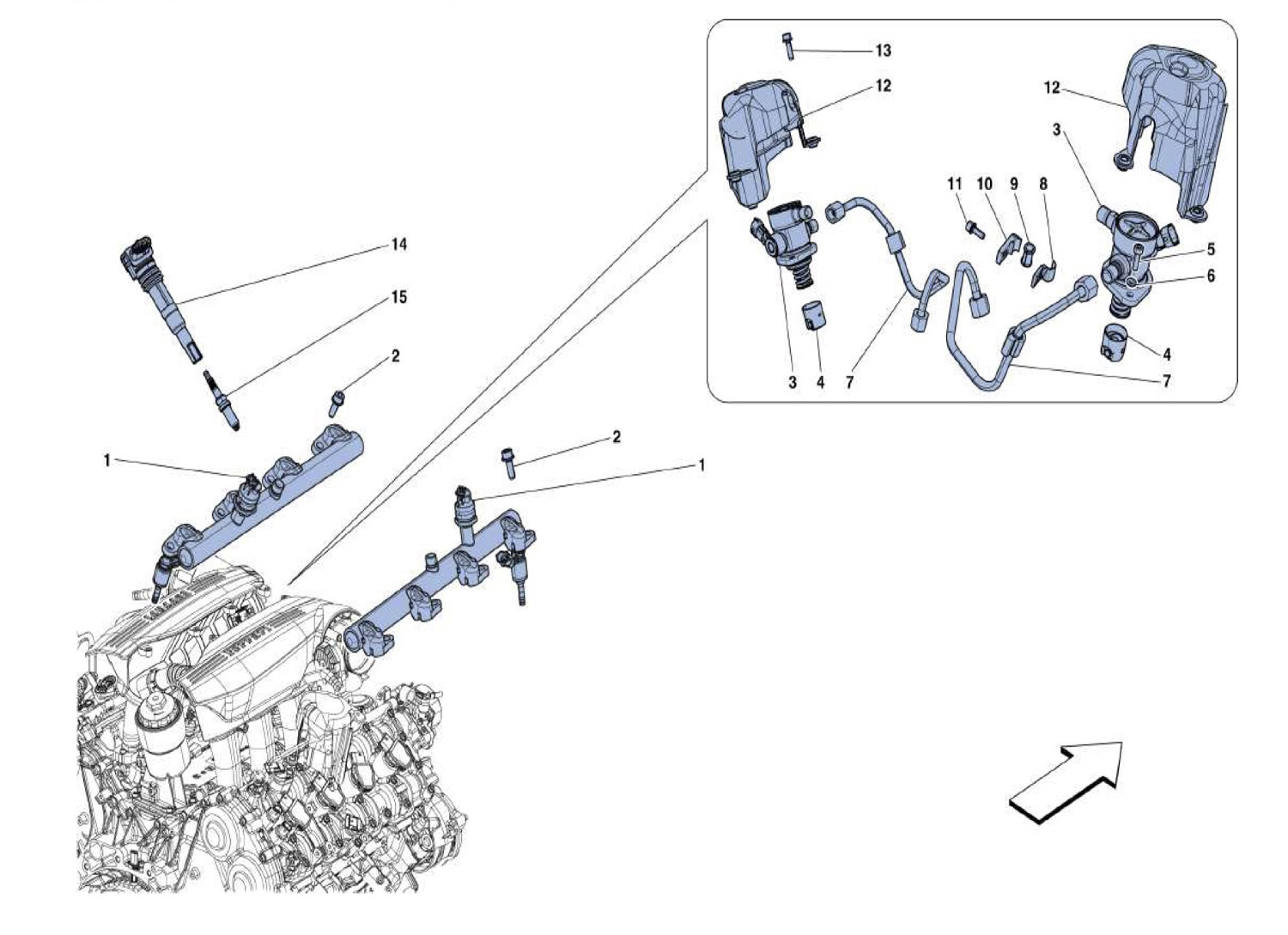

INJECTION - IGNITION

Go to Split View

INJECTION - IGNITION

Location Part # Quantity* Description Price Add To Cart
1 327090 2 FUEL PIPE COMPLETE WITH INJECTORS -No longer supplied- -Replaced by 326631 Unavailable
1 326631 2 FUEL PIPE COMPLETE WITH INJECTORS $1,743.14
2 231628 8 SCREW -M8 X 25- Unavailable
3 303191 2 FUEL PUMP Unavailable
4 270601 2 CUP $66.60
5 14305334 4 SCREW $0.90
6 12639724 4 WASHER $0.90
7 321485 2 FUEL PIPE $109.34
8 322042 2 BRACKET $252.80
9 319850 2 RUBBER PAD $24.06
10 322041 2 BRACKET $110.39
11 231617 2 SCREW -M6 X 18- Unavailable
12 297021 2 GDI PUMP SOUNDPROOFING COVER $103.82
13 231619 6 SCREW -M6 X 22- Unavailable
14 291150 8 INDIVIDUAL IGNITION COIL Superseded
15 310840 8 IGNITION SPARK PLUG $49.90

* Quantity shown indicates the number of pieces used in the diagram.
