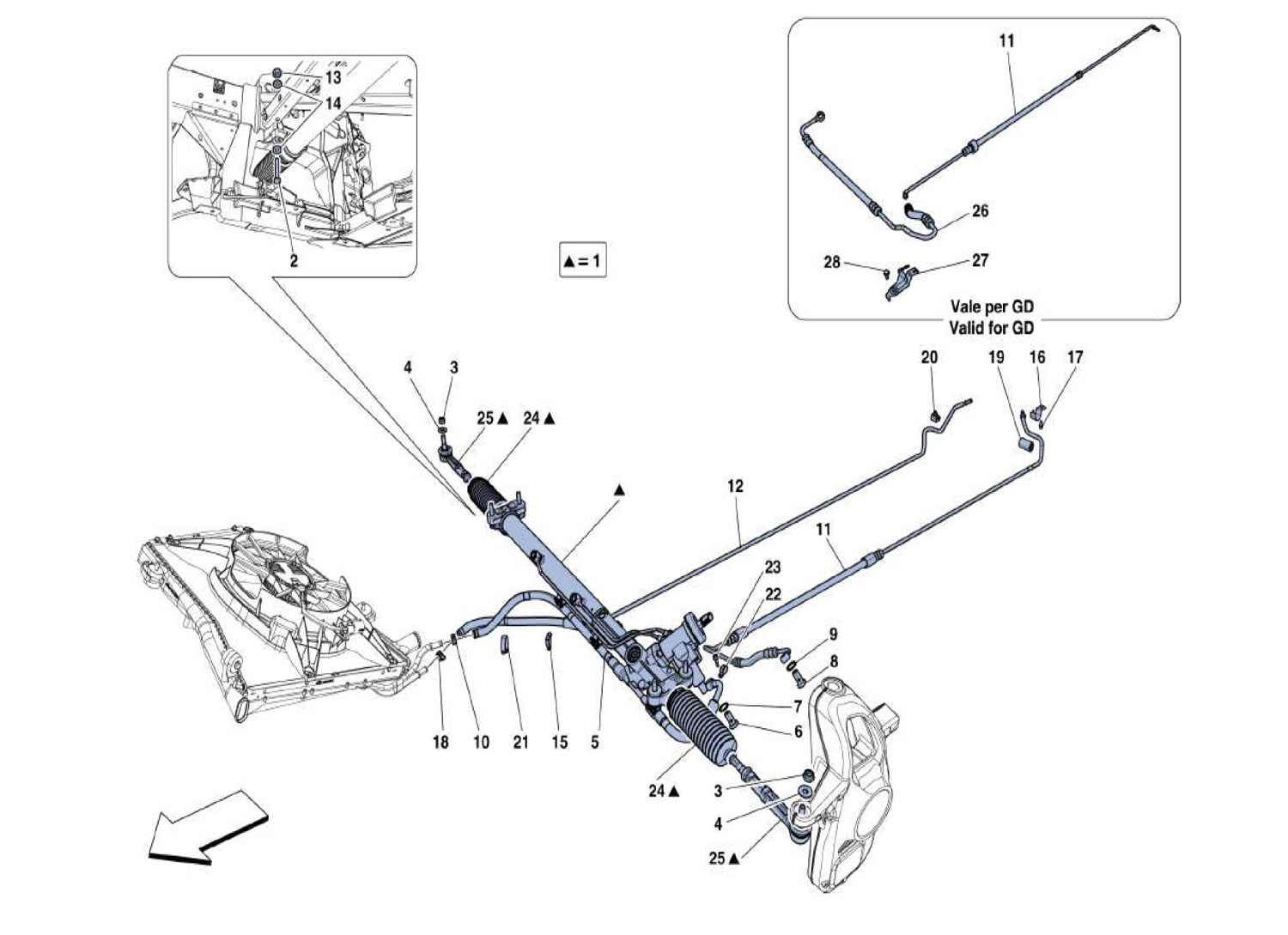

HYDRAULIC STEERING BOX

Location Part # Quantity* Description Price Add To Cart
1 291133 1 STEERING BOX -Not for GD- $4,582.91
1 301996 1 STEERING BOX -Applicable for GD- $6,717.35
2 16237374 4 SCREW $8.36
3 102742 2 NUT Unavailable
4 12626224 2 WASHER Unavailable
5 305041 1 PIPE FROM STEERING BOX TO RADIATOR -Not for GD- $170.80
5 262429 1 PIPE FROM STEERING BOX TO RADIATOR -Applicable for GD- $89.71
6 277407 1 CONNECTOR $12.24
7 10280060 2 GASKET $0.90
8 184727 1 CONNECTOR $7.45
9 11270360 2 GASKET Unavailable
10 13127070 1 COLLAR $2.88
11 317214 1 UNDERBODY POWER STEERING DELIVERY PIPE -Not for GD- $333.89
11 319930 1 UNDERBODY POWER STEERING DELIVERY PIPE -Applicable for GD- $333.89
12 320025 1 UNDERBODY POWER STEERING RETURN PIPE -No longer supplied- -Replaced by 320025 $103.23
12 320025 1 UNDERBODY POWER STEERING RETURN PIPE $103.23
13 14058621 4 NUT Unavailable
14 14496624 8 WASHER $0.90
15 267177 4 CLIP Unavailable
16 322054 1 POWER STEERING PIPE MOUNTING BRACKET $7.19
17 231616 1 SCREW -M6 X 14- -No longer supplied- -Replaced by 231617- Unavailable
17 231617 1 SCREW -M6 X 18- Unavailable
18 13126070 1 COLLAR -No longer supplied- -Replaced by 13127070- $1.38
18 13127070 1 COLLAR $2.88
19 322605 1 SPACER $2.60
20 263230 1 CLIP Unavailable
21 259508 1 CLIP Unavailable
22 10441290 1 BRACKET WITH SHEATH Unavailable
23 231616 1 SCREW -M6 X 14- Unavailable
24 229521 1 STEERING BOX GAITER REPLACEMENT KIT $517.63
25 250196 1 ROD END FOR STEERING BOX $483.12
26 316543 1 OIL DELIVERY PIPE TO STEERING BOX -Applicable for GD- $376.99
27 265838 1 POWER STEERING PIPE MOUNTING BRACKET -Applicable for GD- $16.14
28 11625824 1 SCREW -M6 X 18- -Applicable for GD- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
