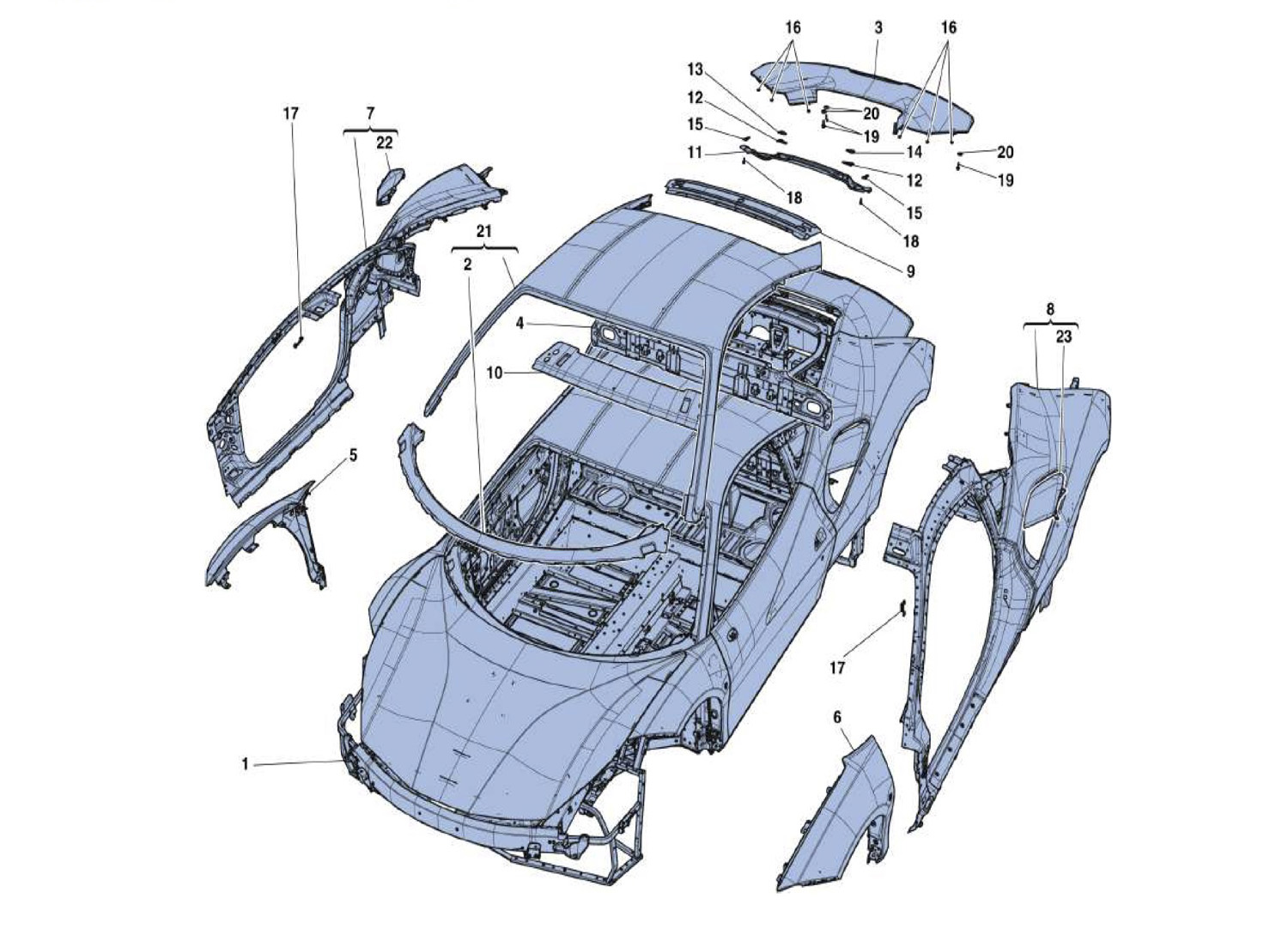

EXTERIOR BODY

Location Part # Quantity* Description Price Add To Cart
1 -0 1 COMPLETE BODYSHELL -Only to specific order by fax or e-mail Unavailable
2 87286711 1 WINDSCREEN CROSS-MEMBER UPPER COVER $2,594.89
3 86130811 1 REAR SPOILER $3,111.99
4 86269811 1 REAR SCREEN BULKHEAD SUBFRAME -Version for 3-point seat belts- $511.62
5 87523811 1 FRONT RH FENDER $2,746.98
5 87524011 1 FRONT RH FENDER -Shield badge- Unavailable
6 87523711 1 FRONT LH FENDER $2,746.98
6 87523911 1 FRONT LH FENDER -Shield badge- $2,754.06
7 86314111 1 RH FLANK $9,204.85
8 86312711 1 LH FLANK $9,204.85
9 86247100 1 UPPER REAR SCREEN CROSS MEMBER $622.04
10 86321300 1 UPPER WINDSCREEN CROSS-MEMBER $527.14
11 86821700 1 FLANK LINK CROSS MEMBER $202.75
12 86821900 6 SPOILER DUCT ADJUSTMENT BRACKET SHIM $4.12
13 86872500 1 RH SPOILER DUCT ADJUSTMENT BRACKET $9.60
14 86821800 1 LH SPOILER DUCT ADJUSTMENT BRACKET $9.60
15 86847700 2 FORK ADJUSTER SHIM -Th. 0.5 mm- -No longer supplied- Unavailable
15 86847600 2 FORK ADJUSTER SHIM -Th. 1 mm- $6.11
16 14039614 6 NUT Unavailable
17 87472400 2 BRACKET $30.53
18 16286121 2 SCREW $0.90
19 16286121 6 SCREW $0.90
20 12647724 6 WASHER Unavailable
21 87523311 1 ROOF TRIM -Not for USA $4,796.81
21 86886511 1 ROOF TRIM -Applicable for USA $4,796.81
22 86682500 1 COMPL. RH FLANK FLOW SPLITTER $780.90
23 86683400 1 COMPL. LH FLANK FLOW SPLITTER $780.90

* Quantity shown indicates the number of pieces used in the diagram.
