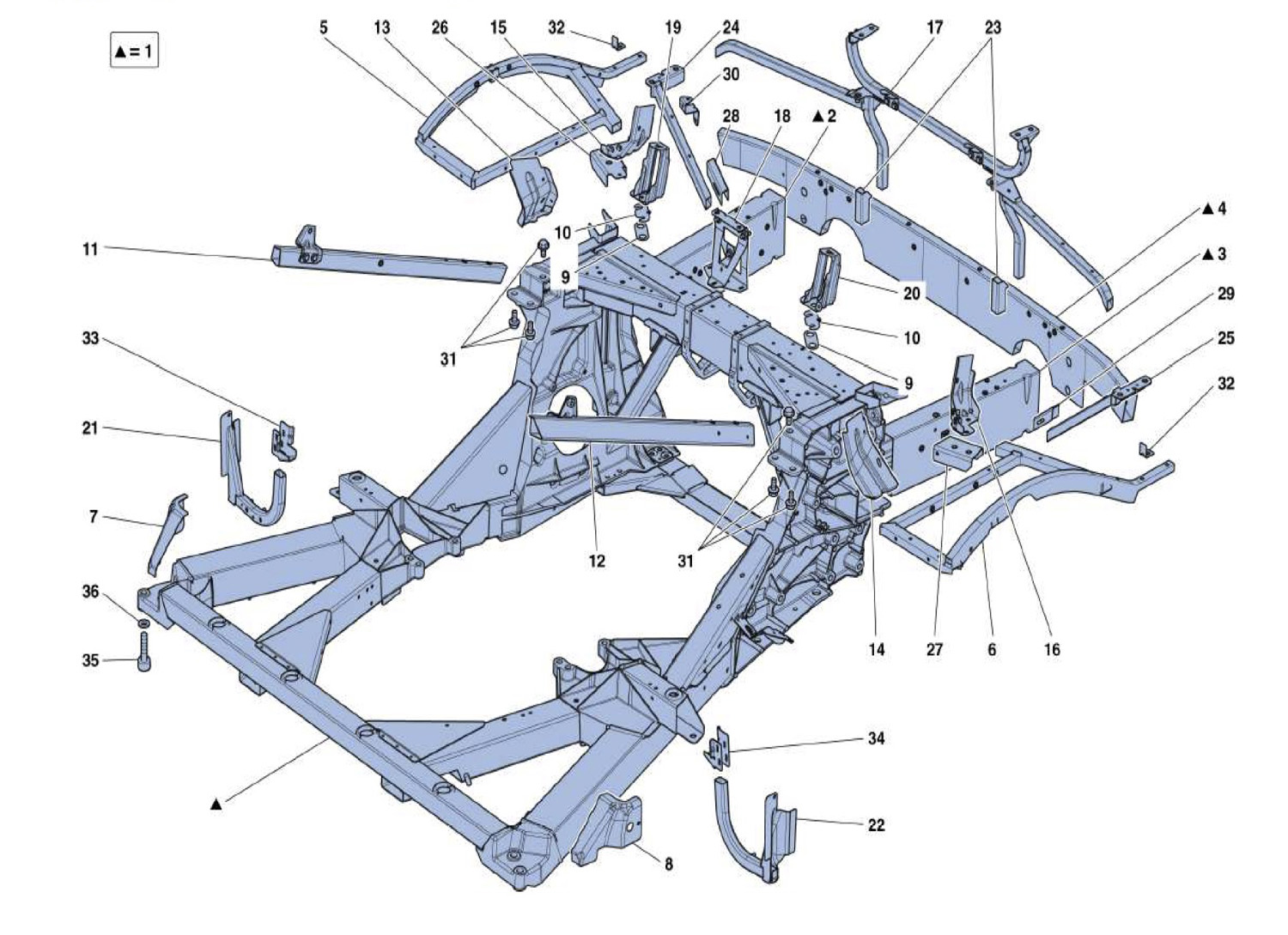

CHASSIS – STRUCTURE, REAR ELEMENTS AND PANELS

Location Part # Quantity* Description Price Add To Cart
1 985300624 1 REAR SUBFRAME -Request ASM authorisation- $20,723.95
2 305362 1 REAR RH STRUT -Request ASM authorisation- Unavailable
3 305361 1 REAR LH STRUT -Request ASM authorisation- Unavailable
4 309018 1 REAR BUMPER FASTENING CROSS MEMBER -Request ASM authorisation- Unavailable
5 86674300 1 RH REAR FLANK TRELLIS Unavailable
6 86674500 1 LH REAR FLANK TRELLIS Unavailable
7 86696100 1 FRONT LOWER MOUNTING BRACKET FOR RH FENDER $29.33
8 86695900 1 FRONT LOWER MOUNTING BRACKET FOR LH FENDER $29.33
9 81905100 2 SPACER FOR BUFFER BRACKET $2.07
10 81905000 2 SHIM -Th. 1 mm- $4.12
10 82119700 2 SHIM -Th. 3 mm- $5.08
11 86676800 1 RH BOX ELEMENT REINFORCEMENT TUBE $125.98
12 86676700 1 LH BOX ELEMENT REINFORCEMENT TUBE $125.98
13 86675000 1 CENTRE RH SUBSTRUCTURE MOUNTING BRACKET $36.24
14 86675200 1 CENTRE LH SUBSTRUCTURE MOUNTING BRACKET $36.24
15 86696000 1 REAR RH SUBSTRUCTURE MOUNTING BRACKET $48.31
16 86695800 1 REAR LH SUBSTRUCTURE MOUNTING BRACKET $48.31
17 86238800 1 REAR FRAME -Request ASM authorisation- Unavailable
18 87388600 1 ENGINE COMPARTMENT LID LOCK BRACKET $58.70
19 86495800 1 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH -Applicable up to Ass. No '133468- $388.93
19 87915900 1 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH -Applicable from Ass. No 133469- $388.93
20 86495700 1 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $388.93
21 87441800 1 RH INTERCOOLER SUPPORT TUBE -Not for USA $453.77
21 87762300 1 RH INTERCOOLER SUPPORT PIPE -Not for USA $210.72
21 87762300 1 RH INTERCOOLER SUPPORT PIPE -Applicable for USA $210.72
22 87442000 1 LH INTERCOOLER SUPPORT TUBE -Not for USA $453.77
22 87762200 1 LH INTERCOOLER SUPPORT PIPE -Not for USA $179.56
22 87762200 1 LH INTERCOOLER SUPPORT PIPE -Applicable for USA $179.56
23 86743600 2 BRACKET FOR REAR ADJUSTER $16.39
24 86439300 1 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS $46.59
25 86439100 1 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS $46.59
26 86675600 1 RH UPPER REAR TRELLIS MOUNTING BRACKET $25.88
27 86675700 1 LH UPPER REAR TRELLIS MOUNTING BRACKET $25.88
28 86743500 1 BRACKET FOR RH LATERAL ADJUSTER $15.53
29 86743400 1 BRACKET FOR LH LATERAL ADJUSTER $15.53
30 87168900 1 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET $9.49
31 239959 6 SCREW $9.50
32 86634500 2 HEADLIGHT MOUNTING BRACKET $9.16
33 321394 1 LH REAR SUBSTRUCTURE MOUNTING BRACKET $86.28
34 321393 1 LH REAR SUBSTRUCTURE MOUNTING BRACKET $86.28
35 239965 4 SCREW $53.77
36 10520004 4 WASHER $7.48

* Quantity shown indicates the number of pieces used in the diagram.
