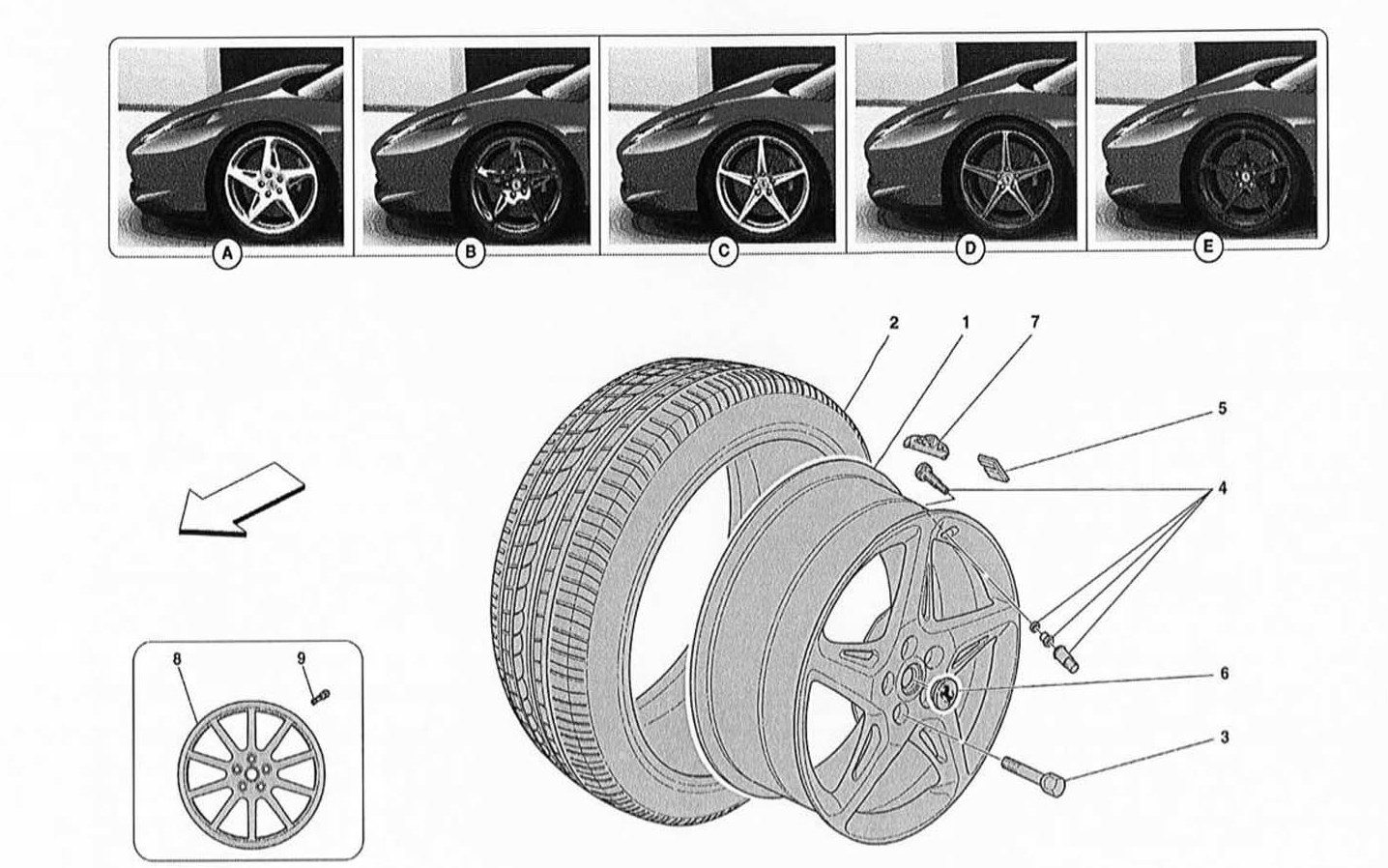

WHEELS

chevron-left
chevron-right
Go to Split View view-grid

WHEELS

Location Part # Quantity* Description Price Add To Cart
1 282332 1 20in. FRONT WHEEL RIM -Cast- -See box A- -Applicable until depletion- $1,461.58
1 282332 1 20in. FRONT WHEEL RIM -Cast- -See box A- -Applicable after depletion of 258156- $1,461.58
1 282334 1 20in. FRONT WHEEL RIM -Cast- -Painted and chromed- -See box B- -Applicable until depletion- $1,700.47
1 282334 1 20in. FRONT WHEEL RIM -Cast- -Painted and chromed- -See box B- -Applicable after depletion of 262892- $1,700.47
1 255225 1 20in. FRONT WHEEL RIM -Forged- -Diamond cut- -See box D- Unavailable
1 262949 1 20in. FRONT WHEEL RIM -Forged- -Painted silver- -See box C- $4,017.76
1 268641 1 20in. FRONT WHEEL RIM -Forged- -Ferro grey- -See box E- $4,815.14
1 258157 1 20in. REAR WHEEL RIM -Cast- -See box A- -Applicable until depletion- $1,561.23
1 282333 1 20in. REAR WHEEL RIM -Cast- -See box A- -Applicable after depletion of 258157- $1,242.64
1 282335 1 20in. REAR WHEEL RIM -Cast- -Painted and chromed- -See box B- -Applicable until depletion- $2,004.00
1 282335 1 20in. REAR WHEEL RIM -Cast- -Painted and chromed- -See box B- -Applicable after depletion of 262893- $2,004.00
1 255226 1 20in. REAR WHEEL RIM -Forged- -Diamond cut- -See box D- Unavailable
1 262950 1 20in. REAR WHEEL RIM -Forged- -Painted silver- -See box C- $4,027.50
1 268642 1 20in. REAR WHEEL RIM -Forged- -Ferro grey- -See box E- $5,156.18
2 -0 1 FRONT TYRE Unavailable
2 -0 1 REAR TYRE Unavailable
3 247702 20 WHEEL STUD Superseded
4 185328 4 VALVE $27.59
5 212174 0 COUNTERWEIGHT $4.67
5 212175 0 COUNTERWEIGHT $5.46
6 340066 4 HUBCAP Superseded
6 174226 4 HUBCAP -With chrome cavallino emblem- $90.93
6 281089 4 HUBCAP -Carbon- $241.48
7 282189 4 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR $211.10
8 248736 1 20in. SPARE WHEEL RIM Unavailable
9 317250104 1 VALVE $22.72

* Quantity shown indicates the number of pieces used in the diagram.
