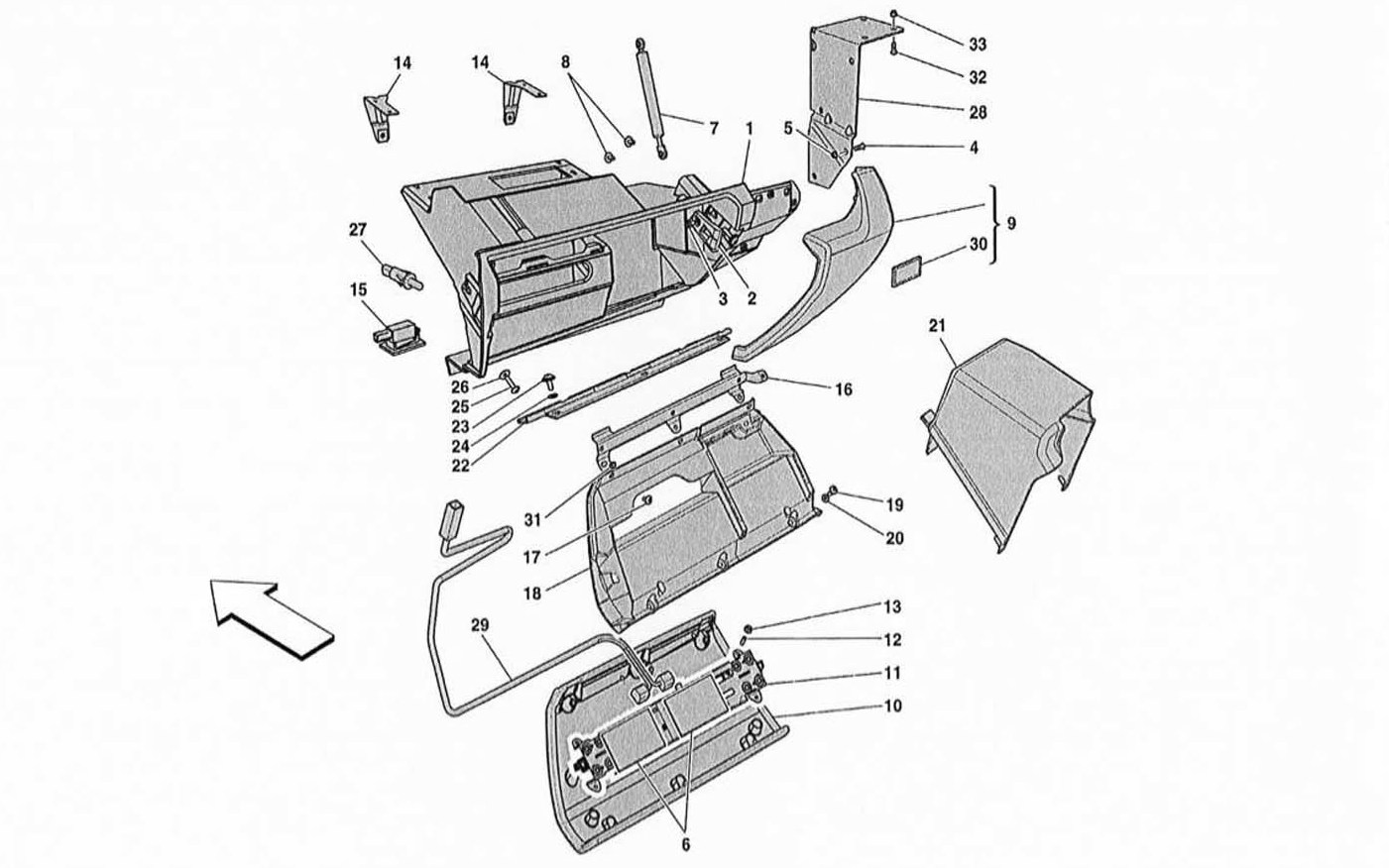

DASHBOARD DRAWER

Go to Split View

DASHBOARD DRAWER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 82042800 *Qty: 1 GLOVE COMPARTMENT HOUSING -Not for RHD- $177.93
Location: 1 Prev | Next Part: 82875000 *Qty: 1 GLOVE COMPARTMENT HOUSING -Applicable for RHD- $285.98
Location: 2 Prev | Next Part: 67332500 *Qty: 1 RH LOCK STRIKER PLATE $3.24
Location: 2 Prev | Next Part: 67332600 *Qty: 1 LH LOCK STRIKER PLATE $3.24
Location: 3 Prev | Next Part: 14304187 *Qty: 2 SCREW -M5X 12- Unavailable
Location: 4 Prev | Next Part: 64460500 *Qty: 4 SCREW Unavailable
Location: 5 Prev | Next Part: 14059111 *Qty: 4 NUT Unavailable
Location: 6 Prev | Next Part: 179309 *Qty: 2 ADHESIVE FOAM RUBBER Unavailable
Location: 7 Prev | Next Part: 83983000 *Qty: 1 GAS STRUT $48.51
Location: 8 Prev | Next Part: 62239900 *Qty: 2 PIN $5.97
Location: 9 Prev | Next Part: 814987 *Qty: 1 LOWER RH PANEL -Leather- -STC1 - -STC2- -Not for RHD- Unavailable
Location: 9 Prev | Next Part: 827604 *Qty: 1 LOWER RH PANEL -Leather- -STC1- -STC2- -Applicable for RHD- Unavailable
Location: 10 Prev | Next Part: 814982 *Qty: 1 TRIMMED DOOR -Leather- -STC1- -STC2- -Not for RHD- Unavailable
Location: 10 Prev | Next Part: 828756 *Qty: 1 TRIMMED DOOR -Leather- -STC1- -STC2- -Applicable for RHD- Unavailable
Location: 11 Prev | Next Part: 82607800 *Qty: 1 COMPL. LOCK -Not for RHD- $317.75
Location: 11 Prev | Next Part: 82951000 *Qty: 1 COMPL. LOCK -Applicable for RHD- $317.75
Location: 12 Prev | Next Part: 13804821 *Qty: 4 SCREW Unavailable
Location: 13 Prev | Next Part: 14059111 *Qty: 4 NUT Unavailable
Location: 14 Prev | Next Part: 82428200 *Qty: 1 RH BRACKET $9.54
Location: 14 Prev | Next Part: 82428200 *Qty: 1 LH BRACKET $9.54
Location: 15 Prev | Next Part: 188250 *Qty: 1 LIGHT UNIT $4.64
Location: 16 Prev | Next Part: 83008900 *Qty: 1 LOWER DAMPER MOUNTING BRACKET $151.29
Location: 17 Prev | Next Part: 68176200 *Qty: 2 SCREW $1.14
Location: 18 Prev | Next Part: 82479700 *Qty: 1 GLOVE COMPARTMENT DOOR BACKING -Not for RHD- $444.87
Location: 18 Prev | Next Part: 82908000 *Qty: 1 GLOVE COMPARTMENT DOOR BACKING -Applicable for RHD- $172.84
Location: 19 Prev | Next Part: 169814 *Qty: 4 SCREW $1.57
Location: 20 Prev | Next Part: 12637801 *Qty: 4 WASHER Superseded
Location: 21 Prev | Next Part: 82657800 *Qty: 1 COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING -Not for RHD- $61.96
Location: 21 Prev | Next Part: 82908100 *Qty: 1 COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING -Applicable for RHD- $123.29
Location: 22 Prev | Next Part: 82436900 *Qty: 1 COMPL. DOOR HINGE $371.36
Location: 23 Prev | Next Part: 169814 *Qty: 7 SCREW $1.57
Location: 24 Prev | Next Part: 13577701 *Qty: 7 WASHER Unavailable
Location: 25 Prev | Next Part: 13274872 *Qty: 3 SCREW Unavailable
Location: 25 Prev | Next Part: 13273977 *Qty: 2 SCREW Unavailable
Location: 26 Prev | Next Part: 61148700 *Qty: 5 WASHER Unavailable
Location: 27 Prev | Next Part: 188266 *Qty: 1 GLOVE COMPARTMENT LIGHT BUTTON $28.75
Location: 28 Prev | Next Part: 83008600 *Qty: 1 DAMPER MOUNTING BRACKET $27.23
Location: 29 Prev | Next Part: 264977 *Qty: 1 GLOVE COMPARTMENT WIRING HARNESS -Applicable until depletion- Superseded
Location: 29 Prev | Next Part: 283725 *Qty: 1 GLOVE COMPARTMENT WIRING HARNESS -Applicable after depletion of 264977 $37.12
Location: 30 Prev | Next Part: 83125600 *Qty: 1 CAMPIONI DELMONDO 2010 LABEL $170.38
Location: 31 Prev | Next Part: 14093910 *Qty: 3 NUT $4.51
Location: 32 Prev | Next Part: 14440721 *Qty: 3 SCREW -M5X 16- Superseded
Location: 33 Prev | Next Part: 14059111 *Qty: 3 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
