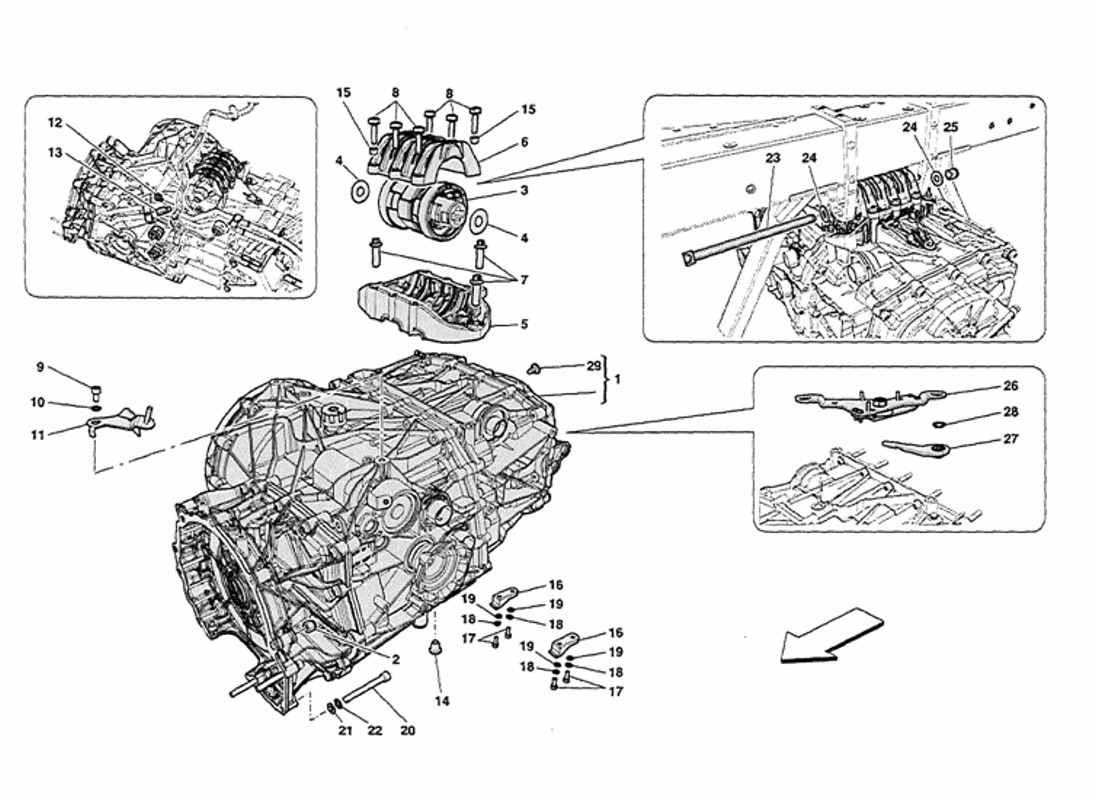

GEARBOX HOUSINGS

Go to Split View

GEARBOX HOUSINGS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 263938 *Qty: 1 CAMBIO DUAL CLUTCH CPL. -Restricted - Not available for sale- Unavailable
Location: 2 Prev | Next Part: 14059421 *Qty: 7 DADO E CON FLANGIA M10X1,25 Unavailable
Location: 3 Prev | Next Part: 247723 *Qty: 1 GEARBOX ANTI-VIBRATION MOUNT $248.44
Location: 4 Prev | Next Part: 255731 *Qty: 3 SHIM -Thickness 0.40 mm- $4.42
Location: 4 Prev | Next Part: 255732 *Qty: 3 SHIM -Thickness 1.00 mm- $4.78
Location: 5 Prev | Next Part: 259440 *Qty: 1 BUSHING-GEARBOX CONNECTOR PLATE $266.54
Location: 6 Prev | Next Part: 259441 *Qty: 1 BUSHING COVER COLLAR $169.77
Location: 7 Prev | Next Part: 259443 *Qty: 3 SCREW M12X36 $3.44
Location: 8 Prev | Next Part: 216576 *Qty: 6 SCREW M8X30 Unavailable
Location: 9 Prev | Next Part: 14360524 *Qty: 1 SCREW M12X1.25X20 $1.71
Location: 10 Prev | Next Part: 127498 *Qty: 1 WASHER D. 12-21.1X2.1 $0.90
Location: 11 Prev | Next Part: 292361 *Qty: 1 OIL TUBE BRACKET $38.12
Location: 12 Prev | Next Part: 11628126 *Qty: 1 SCREW M8 X 25 $2.80
Location: 13 Prev | Next Part: 10448890 *Qty: 1 STAFFETTA CON GUAINA Unavailable
Location: 14 Prev | Next Part: 273038 *Qty: 2 Clutch gearbox drain plug $22.52
Location: 15 Prev | Next Part: 102032 *Qty: 2 DOWEL BOLT D. 10X8 $4.40
Location: 16 Prev | Next Part: 248689 *Qty: 2 RETENTION BRACKET $58.34
Location: 17 Prev | Next Part: 14814234 *Qty: 4 VITE TCEI M 8X 20 $2.02
Location: 18 Prev | Next Part: 12601374 *Qty: 4 WASHER D. 8,40-15X Unavailable
Location: 19 Prev | Next Part: 12638524 *Qty: 4 WASHER D. 8.15-15X1 $0.90
Location: 20 Prev | Next Part: 14309024 *Qty: 3 SCREW M 8X 70 $1.57
Location: 21 Prev | Next Part: 12638524 *Qty: 3 WASHER D. 8.15-15X1 $0.90
Location: 22 Prev | Next Part: 12601374 *Qty: 3 WASHER D. 8,40-15X Unavailable
Location: 23 Prev | Next Part: 248535 *Qty: 1 SCREW M14X1.5X210 $15.36
Location: 24 Prev | Next Part: 10552324 *Qty: 2 WASHER D 15X32 Unavailable
Location: 25 Prev | Next Part: 14048921 *Qty: 1 DADO AUTOFR.M14X1,5 $2.24
Location: 26 Prev | Next Part: 252661 *Qty: 1 STAFFA SUPPORTO CURSORE SBLOCCO Unavailable
Location: 27 Prev | Next Part: 238370 *Qty: 1 COMPLETE RELEASE LEVER $61.55
Location: 28 Prev | Next Part: 11066176 *Qty: 1 ANELLO ELASTICO DI SICUR.D13 Unavailable
Location: 29 Prev | Next Part: 263679 *Qty: 1 OIL LEVEL PLUG M18X1.5 $55.34

* Quantity shown indicates the number of pieces used in the diagram.
