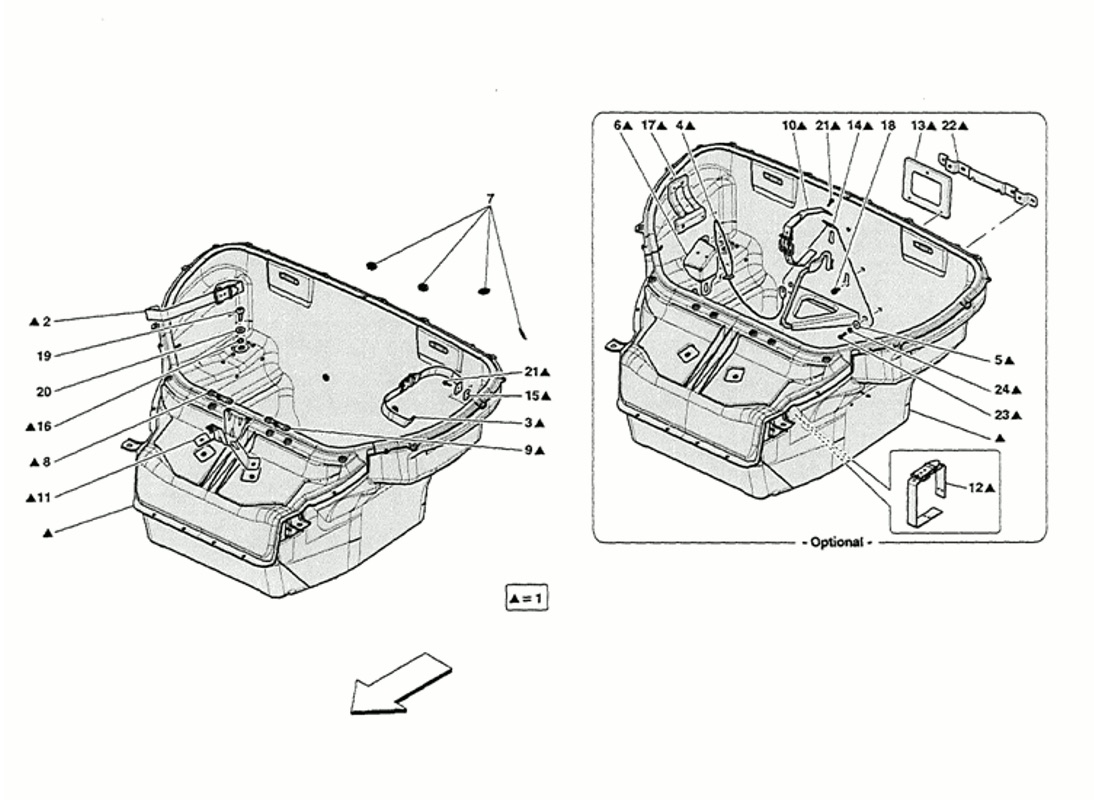

FRONT COMPARTMENT TRIMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 85672900 *Qty: 1 VASCA BAULE COMPLETO Unavailable
Location: 1 Prev | Next Part: 85673800 *Qty: 1 VASCA BAULE COMPLETO -Optional Ruotino- Unavailable
Location: 2 Prev | Next Part: 81365200 *Qty: 1 RETAINER STRAP $103.74
Location: 3 Prev | Next Part: 81365100 *Qty: 1 RETAINER STRAP $103.74
Location: 4 Prev | Next Part: 83606300 *Qty: 1 SPACE SAVER SPARE WHEEL RETAINER $87.07
Location: 5 Prev | Next Part: 12624178 *Qty: 2 WASHER D. 5.45-22X2 $0.90
Location: 6 Prev | Next Part: 85726400 *Qty: 1 STAFFA DX. APPOGGIO RUOTINO -Optional ruotino- Unavailable
Location: 6 Prev | Next Part: 85726500 *Qty: 1 STAFFA SX. APPOGGIO RUOTINO -Optional ruotino- Unavailable
Location: 7 Prev | Next Part: 67315400 *Qty: 4 WASHER (ORIG.188AE DIS.N.465) $0.90
Location: 8 Prev | Next Part: 85653100 *Qty: 1 STAFFA DX. Unavailable
Location: 9 Prev | Next Part: 85653200 *Qty: 1 STAFFA SX. Unavailable
Location: 10 Prev | Next Part: 83559200 *Qty: 1 UPPER RETAINER STRAP FOR SPACE $177.93
Location: 11 Prev | Next Part: 85581000 *Qty: 1 STAFFA CENTRALE Unavailable
Location: 12 Prev | Next Part: 82758300 *Qty: 1 TOOLKIT BAG FASTENER STRAP $62.79
Location: 13 Prev | Next Part: 82758200 *Qty: 1 BRACKET REINFORCEMENT $685.04
Location: 14 Prev | Next Part: 85707700 *Qty: 1 STAFFA FISSAGGIO RUOTINO -Optional Ruotino- Unavailable
Location: 15 Prev | Next Part: 81516000 *Qty: 4 PLATE $63.53
Location: 16 Prev | Next Part: 85865800 *Qty: 2 SPACER Unavailable
Location: 17 Prev | Next Part: 85877300 *Qty: 1 RINFORZO DX. -Optional ruotino- Unavailable
Location: 17 Prev | Next Part: 85877400 *Qty: 1 RINFORZO SX. -Optional ruotino- Unavailable
Location: 18 Prev | Next Part: 83559100 *Qty: 3 THREADED PIN $72.63
Location: 19 Prev | Next Part: 65933500 *Qty: 2 SCREW M6X1X15 Unavailable
Location: 20 Prev | Next Part: 83072500 *Qty: 2 GASKET $2.68
Location: 21 Prev | Next Part: 14415690 *Qty: 8 RIVET $1.07
Location: 22 Prev | Next Part: 83615800 *Qty: 1 BRACKET FOR SPACE SAVER SPARE $49.56
Location: 23 Prev | Next Part: 262934 *Qty: 2 SCREW M5X25 Unavailable
Location: 24 Prev | Next Part: 14447078 *Qty: 2 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
