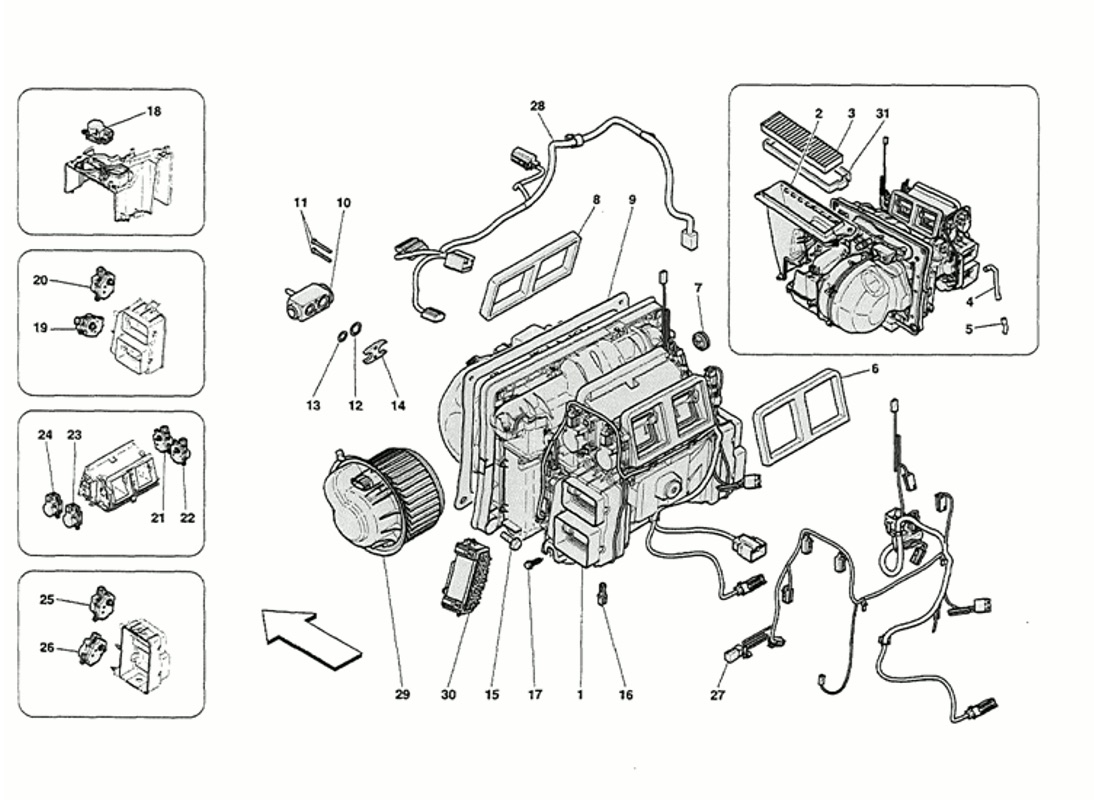

EVAPORATOR UNIT

Go to Split View

EVAPORATOR UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 83856800 *Qty: 1 COMPLETE EVAPORATOR $4,079.94
Location: 2 Prev | Next Part: 83594700 *Qty: 1 MOBILE DUCT $106.17
Location: 3 Prev | Next Part: 82295100 *Qty: 1 ANTI-POLLEN FILTER $57.59
Location: 4 Prev | Next Part: 83244100 *Qty: 1 UPPER DRAIN PIPE D. 14-21X 200 $24.93
Location: 5 Prev | Next Part: 83304600 *Qty: 1 LOWER DRAIN PIPE D.10-15X 325 $25.55
Location: 6 Prev | Next Part: 82046800 *Qty: 1 FRONT SINK $193.14
Location: 7 Prev | Next Part: 68389800 *Qty: 1 MOUNTING RUBBER $7.21
Location: 8 Prev | Next Part: 82046600 *Qty: 1 SINK FOR DEFROST DUCT $180.68
Location: 9 Prev | Next Part: 83982800 *Qty: 1 GASKET $33.32
Location: 10 Prev | Next Part: 82049300 *Qty: 1 TXV BLOCK Call
Location: 11 Prev | Next Part: 82049500 *Qty: 1 SCREW Call
Location: 12 Prev | Next Part: 82049100 *Qty: 1 SLIM LINE SEAL WASHER 5/8 Call
Location: 13 Prev | Next Part: 82049200 *Qty: 1 SLIM LINE SEAL WASHER 1/2 Call
Location: 14 Prev | Next Part: 82049400 *Qty: 1 PIASTRINO Call
Location: 15 Prev | Next Part: 16287127 *Qty: 4 SCREW W/FLANGE M8X20 $0.90
Location: 16 Prev | Next Part: 68390100 *Qty: 2 SENSOR-AIR $13.22
Location: 17 Prev | Next Part: 62771900 *Qty: 0 SCREW $0.90
Location: 18 Prev | Next Part: 264869 *Qty: 1 LIN BUS RECIRCULATION ACTUATOR $174.26
Location: 19 Prev | Next Part: 82047300 *Qty: 1 A/C ACTUATOR FLO RIGHT $174.17
Location: 20 Prev | Next Part: 82047400 *Qty: 1 A/C ACTUATOR LAT RIGHT $174.17
Location: 21 Prev | Next Part: 82047500 *Qty: 1 A/C ACTUATOR DEF RIGHT $174.17
Location: 22 Prev | Next Part: 82047600 *Qty: 1 A/C ACTUATOR VENT RIGHT $174.17
Location: 23 Prev | Next Part: 82047700 *Qty: 1 A/C ACTUATOR VENT LEFT $191.68
Location: 24 Prev | Next Part: 82047900 *Qty: 1 A/C ACTUATOR DEF LEFT $174.17
Location: 25 Prev | Next Part: 82048100 *Qty: 1 A/C ACTUATOR LAT LEFT $174.17
Location: 26 Prev | Next Part: 82048200 *Qty: 1 A/C ACTUATOR FLO LEFT $174.17
Location: 27 Prev | Next Part: 280369 *Qty: 1 AC WIRING HARNESS $900.18
Location: 28 Prev | Next Part: 264879 *Qty: 1 AC WIRING HARNESS -Engine side $286.61
Location: 29 Prev | Next Part: 264880 *Qty: 1 FAN $791.02
Location: 30 Prev | Next Part: 264881 *Qty: 1 SPEED REGULATOR $401.04
Location: 31 Prev | Next Part: 83081700 *Qty: 1 DYNAMIC INTAKE FILLER FOAM Call

* Quantity shown indicates the number of pieces used in the diagram.
