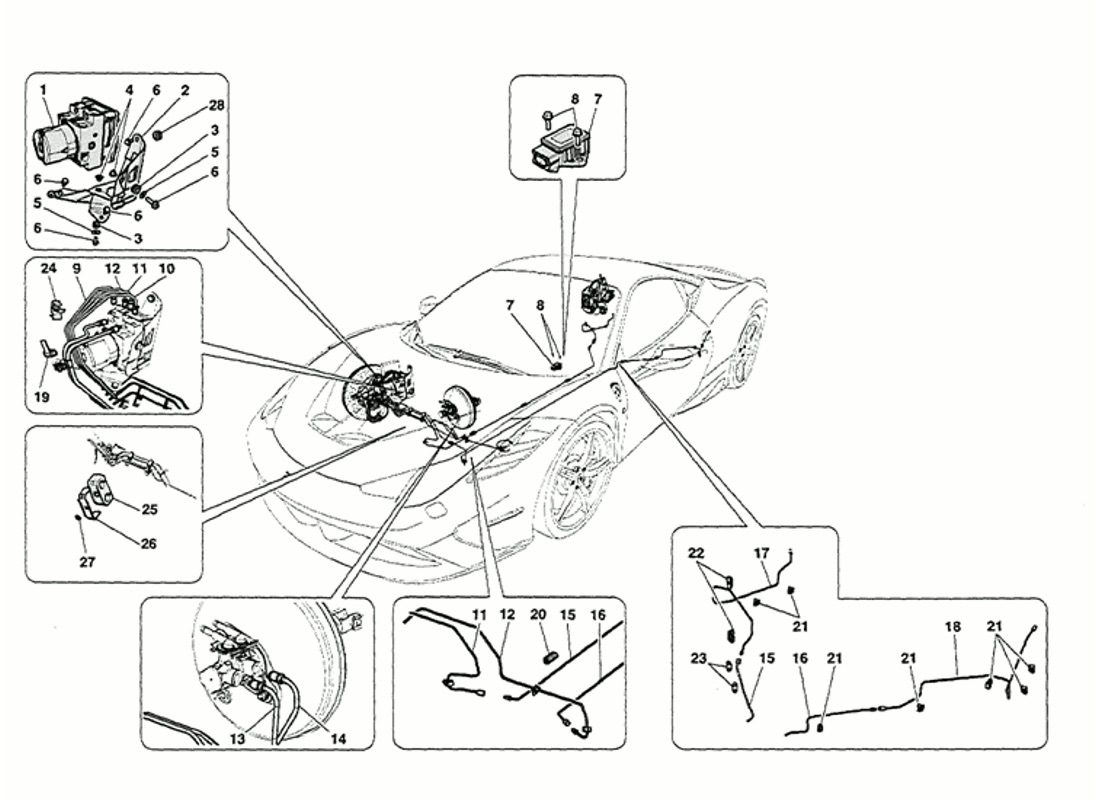

BRAKING SYSTEM

Go to Split View

BRAKING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 296431 *Qty: 1 GRUPPOIDRAULICO Unavailable
Location: 2 Prev | Next Part: 275573 *Qty: 1 STAFFA Unavailable
Location: 3 Prev | Next Part: 246864 *Qty: 3 GROMMET $4.20
Location: 4 Prev | Next Part: 246917 *Qty: 3 SHIM $7.83
Location: 5 Prev | Next Part: 12625221 *Qty: 3 WASHER D. 8.45-20X1 (SUP) Superseded
Location: 6 Prev | Next Part: 16287224 *Qty: 3 SCREW W/FLANGE M 8X25 Superseded
Location: 6 Prev | Next Part: 16287224 *Qty: 3 SCREW W/FLANGE M 8X25 Superseded
Location: 7 Prev | Next Part: 206070 *Qty: 1 VAW SENSOR $329.09
Location: 8 Prev | Next Part: 16286124 *Qty: 2 SCREW W/FLANGE M6X20 $0.90
Location: 9 Prev | Next Part: 263877 *Qty: 1 FRONT RH BRAKE PIPE $65.91
Location: 10 Prev | Next Part: 263876 *Qty: 1 FRONT LH BRAKE PIPE $89.61
Location: 11 Prev | Next Part: 295939 *Qty: 1 HOSE FRENO POSTERIORE DX. Unavailable
Location: 12 Prev | Next Part: 295940 *Qty: 1 HOSE FRENO POSTERIORE SX. Unavailable
Location: 13 Prev | Next Part: 279894 *Qty: 1 HOSE FRENO POMPA ANTERIORE CENTRALINA Unavailable
Location: 14 Prev | Next Part: 262401 *Qty: 1 PIPE FROM REAR BRAKE PUMP $81.86
Location: 15 Prev | Next Part: 295938 *Qty: 1 HOSE FRENO POSTERIORE DX. SOTTOPIANALE Unavailable
Location: 16 Prev | Next Part: 295937 *Qty: 1 HOSE FRENO POSTERIORE SX. SOTTOPIANALE Unavailable
Location: 17 Prev | Next Part: 263892 *Qty: 1 REAR SUBFRAME RH BRAKE PIPE $51.73
Location: 18 Prev | Next Part: 263893 *Qty: 1 REAR SUBFRAME LH BRAKE PIPE $50.49
Location: 19 Prev | Next Part: 254195 *Qty: 1 CLIP $1.66
Location: 20 Prev | Next Part: 262737 *Qty: 7 RUBBER RETAINER $6.09
Location: 21 Prev | Next Part: 249650 *Qty: 7 CLIP D. 4.7 X 1 $0.90
Location: 22 Prev | Next Part: 249649 *Qty: 2 CLIP D. 4.7 X 2 $0.97
Location: 23 Prev | Next Part: 169476 *Qty: 2 CLIP $3.23
Location: 24 Prev | Next Part: 268893 *Qty: 2 CLIP DIAM.5 $2.13
Location: 25 Prev | Next Part: 278412 *Qty: 3 GOGNA 2 TUBI Unavailable
Location: 26 Prev | Next Part: 279844 *Qty: 3 PIASTRINO CONTENIMENTO Unavailable
Location: 27 Prev | Next Part: 67315400 *Qty: 3 WASHER (ORIG.188AE DIS.N.465) $0.90
Location: 28 Prev | Next Part: 232869 *Qty: 3 PLUG M8 D.21-15.5X12 $36.82

* Quantity shown indicates the number of pieces used in the diagram.
