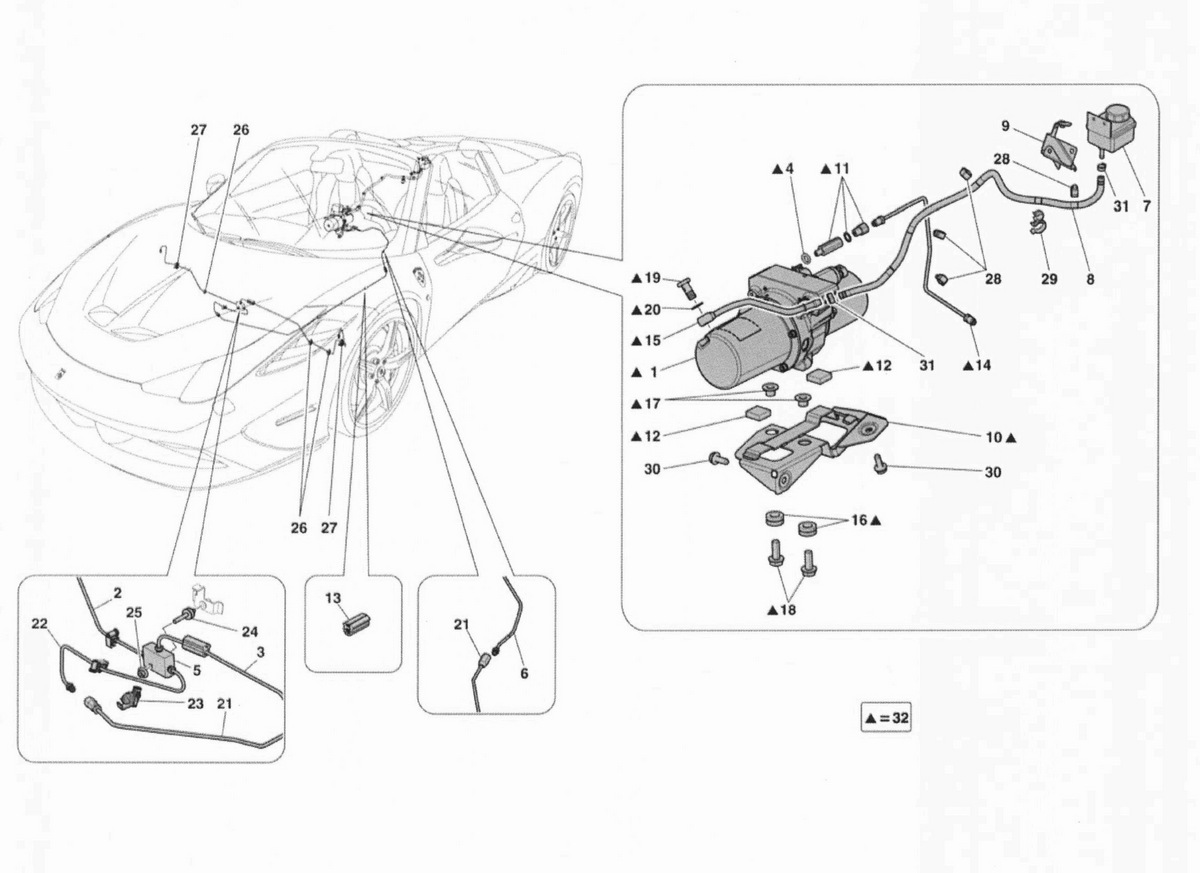

VEHICLE LIFT SYSTEM

Go to Split View

VEHICLE LIFT SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 291586 *Qty: 1 ELETTROPOMPA Call
Location: 2 Prev | Next Part: 263130 *Qty: 1 HOSE RIGID0 ANTERIORE DX. $209.86
Location: 3 Prev | Next Part: 295941 *Qty: 1 HOSE RIGIDO ANTERIORE SX. Call
Location: 4 Prev | Next Part: 256502 *Qty: 1 GASKET $0.90
Location: 5 Prev | Next Part: 260257 *Qty: 1 BLOCCHETTO DISTRIBUTORE $85.48
Location: 6 Prev | Next Part: 263133 *Qty: 1 HOSE RIGIDO POSTERIORE -Da inizio produzione- $348.81
Location: 7 Prev | Next Part: 258573 *Qty: 1 SERBATOIO $52.09
Location: 8 Prev | Next Part: 265348 *Qty: 1 HOSE DA SEZIONAMENTO A SERBATOIO $133.35
Location: 9 Prev | Next Part: 265346 *Qty: 1 STAFFA SERBATOIO $19.93
Location: 10 Prev | Next Part: 291589 *Qty: 1 STAFFA ELETTROPOMPA Call
Location: 11 Prev | Next Part: 301561 *Qty: 1 ASSIEME VALVOLA FLUSSO-ADATTATORE Call
Location: 12 Prev | Next Part: 291590 *Qty: 2 BUFFER Call
Location: 13 Prev | Next Part: 262737 *Qty: 5 GOMMOTTO $6.09
Location: 14 Prev | Next Part: 291588 *Qty: 1 HOSE DA POMPA A SEZIONAMENTO Call
Location: 15 Prev | Next Part: 291587 *Qty: 1 HOSE RIGIDO Call
Location: 16 Prev | Next Part: 255047 *Qty: 2 ANELLO PASSAFILO $4.22
Location: 17 Prev | Next Part: 255048 *Qty: 2 DISTANZIALE Call
Location: 18 Prev | Next Part: 304224 *Qty: 2 SCREW Call
Location: 19 Prev | Next Part: 259642 *Qty: 1 BOCCHETTONE $6.23
Location: 20 Prev | Next Part: 260155 *Qty: 2 GASKET $4.38
Location: 21 Prev | Next Part: 295942 *Qty: 1 HOSE RIGIDO SOTTOPIANALE Call
Location: 22 Prev | Next Part: 265343 *Qty: 1 HOSE RIGIDO DA SOTTOPIANALE A BLOCCHETTO $261.59
Location: 23 Prev | Next Part: 265342 *Qty: 1 MOLLETTA $1.08
Location: 24 Prev | Next Part: 268173 *Qty: 1 BUFFER $36.15
Location: 25 Prev | Next Part: 14039614 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 249650 *Qty: 3 MOLLETTA $0.90
Location: 27 Prev | Next Part: 249782 *Qty: 2 MOLLETTA $1.22
Location: 28 Prev | Next Part: 247440 *Qty: 4 MOLLETTA $0.90
Location: 29 Prev | Next Part: 82051200 *Qty: 1 MOLLETTA $0.99
Location: 30 Prev | Next Part: 11627724 *Qty: 2 SCREW Call
Location: 31 Prev | Next Part: 13432070 *Qty: 2 COLLARE -D. 15.7- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
