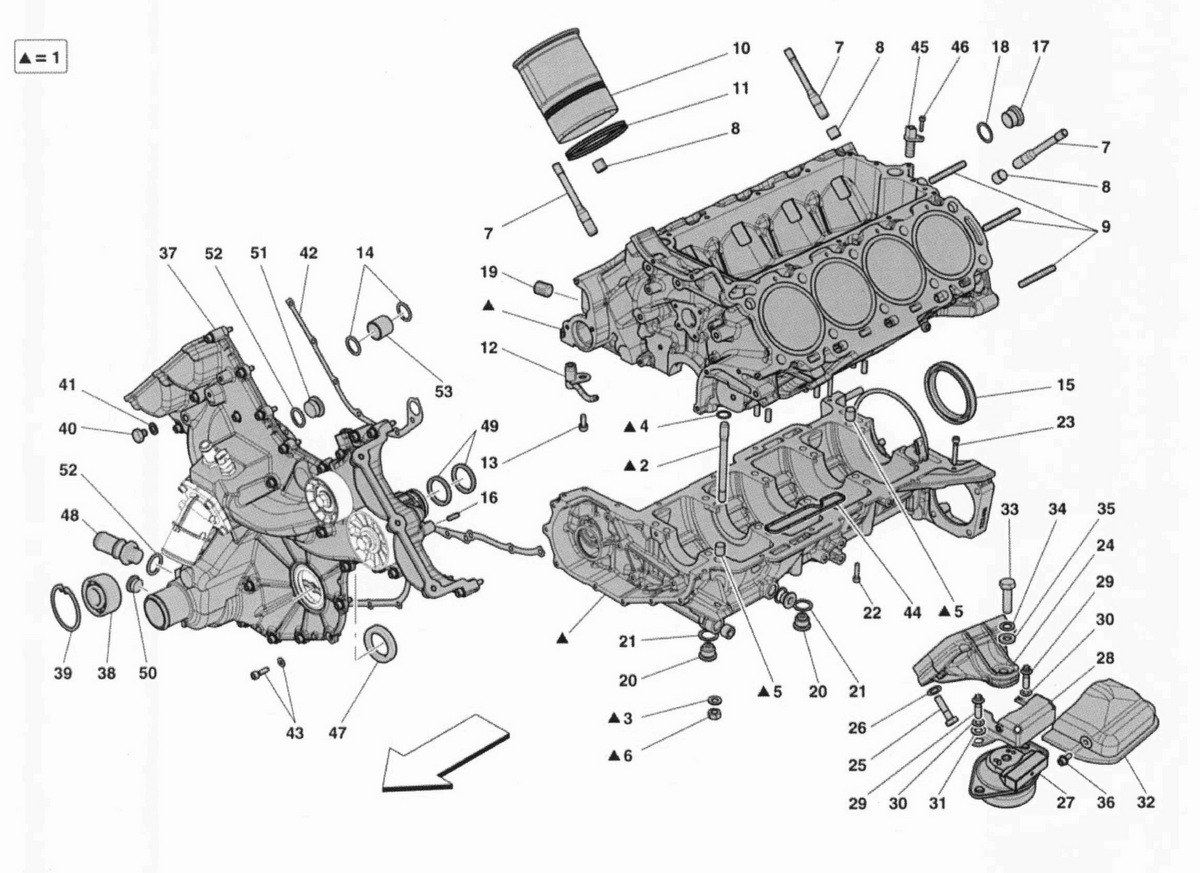

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
1 278162 1 ASSEMBLATO BASAMENTO SOTTOBASAMENTO -Lead free- Unavailable
2 236261 10 STUD -M12 X 1.75- -stem M10 X 1.25- $9.52
2 236262 10 STUD -M12 X 1.75- -stem M10 X 1.25- $43.89
3 178348 20 WASHER Unavailable
4 134704 20 GASKET $0.90
5 176421 2 GRANO CENTRAGGIO $11.57
6 133988 20 NUT Unavailable
7 217968 20 STUD $28.46
8 185360 4 GRANO CENTRAGGIO $3.33
9 13546934 4 STUD -Length stem 50 mm- $2.01
9 13547034 3 STUD -Length stem 55 mm- $3.86
10 243339 8 CANNA CILINDRI $1,790.03
11 186251 24 GASKET O.R. $2.98
12 262417 8 UGELLO RAFFREDDAMENTO PISTONE CPL. Unavailable
13 262413 8 SCREW $1.16
14 14454681 2 GASKET 0-R. Unavailable
15 240214 1 REAR SEAL $60.60
16 175611 2 GRANO CENTRAGGIO $1.97
17 10304511 1 TAPPO $2.98
18 10263460 1 GASKET Superseded
19 14325340 2 TAPPO $9.50
20 104280 2 TAPPO MAGNETICO $8.73
21 10261860 2 GASKET $0.90
22 231620 11 SCREW -M6 X 25- Unavailable
23 231623 2 SCREW Unavailable
24 255568 1 BRACKET DX $197.05
24 255569 1 BRACKET SX $197.05
25 11307034 8 SCREW $0.95
26 11190574 8 WASHER $0.90
27 296230 1 MOTOR MOUNT DX. Unavailable
27 296231 1 MOTOR MOUNT SX. Unavailable
28 263593 1 STAFFA LIMITATRICE ESCURSIONE BUFFER DX. $99.82
28 263594 1 STAFFA LIMITATRICE ESCURSIONE BUFFER SX. $99.82
29 243841 6 SCREW $1.93
30 127497 6 WASHER $0.90
31 14496624 6 WASHER $0.90
32 260084 2 RIPARO CALORE BUFFER MOTORE $59.52
33 11599534 2 SCREW $2.52
34 127498 2 WASHER Unavailable
35 10738021 2 WASHER $6.56
36 231616 4 SCREW-M6X14- Unavailable
37 261440 1 COPERCHIO ANTERIORE BASAMENTO CPL. $3,153.10
38 247049 1 BEARING $61.41
39 11060276 1 ANELLO SEEGER Unavailable
40 187718 2 TAPPO PERSPURGO $6.29
41 10284460 2 GASKET $0.90
42 253102 1 FRONT COVER SEAL Superseded
43 231617 11 SCREW-M6X18- Unavailable
43 231619 4 SCREW-M6X22- Unavailable
43 231620 3 SCREW-M6X25- Unavailable
43 231621 1 SCREW-M6X30- Unavailable
43 231622 8 SCREW-M6X35- Unavailable
43 231624 1 SCREW-M6X45- Unavailable
43 231625 3 SCREW-M6X50- Unavailable
43 231626 1 SCREW-M6X70- $1.02
44 236143 2 GASKET $7.45
45 249747 1 SENSORE VELOCTTA'' ANGOLARE $209.58
46 231618 1 SCREW-M6X20- Unavailable
47 245884 1 GASKET ALBERO MOTORE $39.06
48 253787 1 RACCORDO $253.93
49 183010 2 GASKET $1.77
50 223405 1 TAPPO $6.80
51 193885 1 TAPPO $8.45
52 10263460 2 GASKET Superseded
53 239437 1 BOCCOLAINGRESSO ACQUA Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
