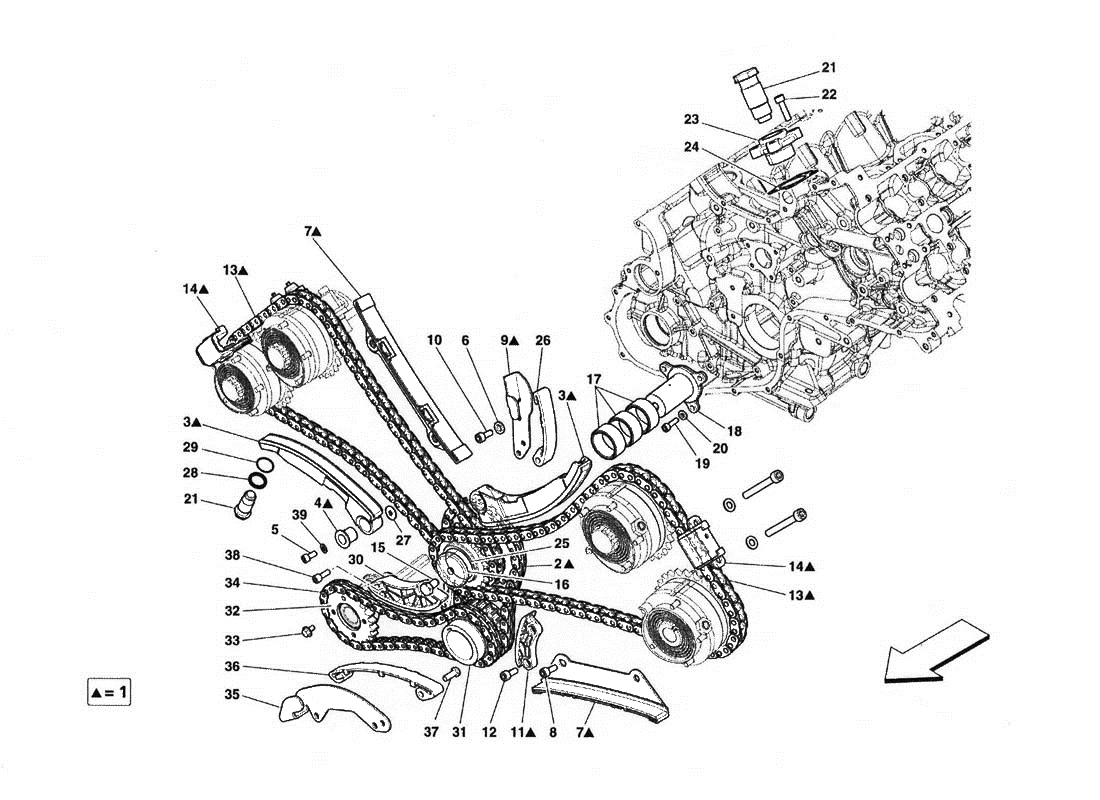

TIMING - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 253292 1 VALVE TIMING AND PUMP DRIVE SYSTEM Unavailable
2 175286 1 CHAIN $51.74
3 186184 2 MOBILE SHOE $167.35
4 175303 2 BUSHING $39.67
5 14306424 2 SCREW Unavailable
6 12647624 2 WASHER Unavailable
7 186185 2 FIXED SHOE $65.55
8 231627 4 SCREW Unavailable
9 186159 1 MOUNTING $34.49
10 231616 2 SCREW Unavailable
11 186181 1 FIXED SHOE Superseded
12 231620 2 SCREW Unavailable
13 193616 2 CHAIN $158.12
14 222310 2 FIXED SHOE $69.00
15 16043124 1 SCREW $0.90
16 194262 1 SHOULDER $36.30
17 175282 3 ROLLER BEARING CAGE $12.16
18 212970 1 MOUNTING $142.79
19 14304224 4 SCREW Unavailable
20 11181574 4 WASHER Unavailable
21 197880 2 HYDRAULIC TENSIONER $163.90
22 231619 4 SCREW Unavailable
23 190060 1 BUSHING $53.27
24 247147 1 GASKET Superseded
25 193565 1 DRIVE GEAR $241.55
26 196683 1 SHOE $51.74
27 175306 2 SHOULDER $5.46
28 190171 1 SHIM $8.51
29 192069 1 GASKET $0.90
30 249844 1 FIXED SHOE $119.04
31 244214 1 CRANKSHAFT GEAR $144.92
32 255815 1 PUMP DRIVE GEAR $414.10
33 255780 4 SCREW $1.42
34 253294 1 CHAIN $1,156.06
35 253293 1 MOUNTING $72.45
36 249904 1 MOBILE SHOE $64.43
37 231616 2 SCREW Unavailable
38 231619 2 SCREW Unavailable
39 255527 1 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
