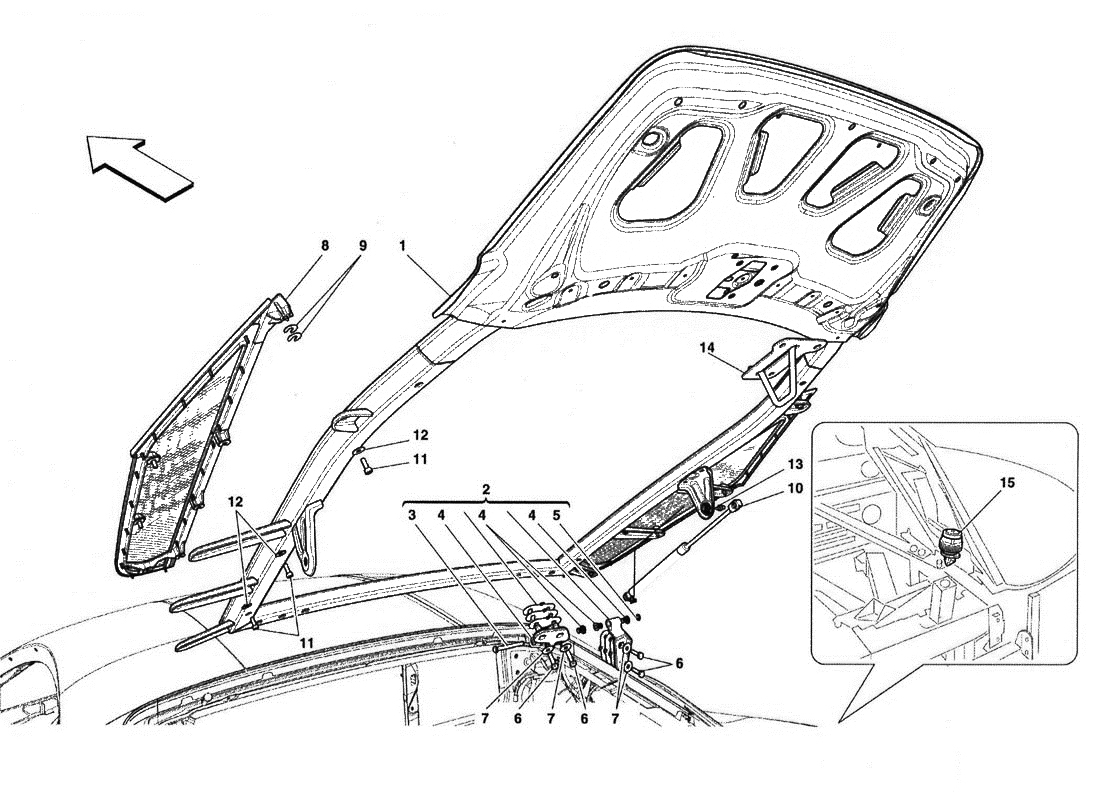

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81281611 *Qty: 1 REAR LID $2,819.18
Location: 2 Prev | Next Part: 81429200 *Qty: 1 COMPL. RH ENGINE COMPARTMENT LID HINGE $254.74
Location: 2 Prev | Next Part: 81429300 *Qty: 1 COMPL. LH ENGINE COMPARTMENT LID HINGE $254.74
Location: 3 Prev | Next Part: 81429000 *Qty: 2 HINGE PIN $12.46
Location: 4 Prev | Next Part: 62825300 *Qty: 8 BUSHING $30.78
Location: 5 Prev | Next Part: 16160976 *Qty: 2 SNAP RING $0.90
Location: 6 Prev | Next Part: 16043734 *Qty: 8 SCREW $3.17
Location: 7 Prev | Next Part: 12642001 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 82651700 *Qty: 1 LH ENGINE COMPARTMENT LID GRILLE $338.72
Location: 8 Prev | Next Part: 82651500 *Qty: 1 RH ENGINE COMPARTMENT LID GRILLE $338.72
Location: 9 Prev | Next Part: 81504800 *Qty: 20 SHIM $4.80
Location: 10 Prev | Next Part: 81913100 *Qty: 2 GAS STRUT $80.53
Location: 11 Prev | Next Part: 13025787 *Qty: 10 SCREW $0.90
Location: 12 Prev | Next Part: 12643778 *Qty: 10 WASHER $0.90
Location: 13 Prev | Next Part: 65939900 *Qty: 2 PIN $3.49
Location: 14 Prev | Next Part: 81429600 *Qty: 1 LOCK STRIKER $39.88
Location: 15 Prev | Next Part: 67161800 *Qty: 2 VIBRATION DAMPER $6.32
Location: 16 Prev | Next Part: 82807000 *Qty: 2 CENTRE BRACKET $24.93
Location: 17 Prev | Next Part: 82813700 *Qty: 1 UPPER LH BRACKET $24.93
Location: 17 Prev | Next Part: 82806900 *Qty: 1 UPPER RH BRACKET $24.93
Location: 18 Prev | Next Part: 13025787 *Qty: 8 SCREW $0.90
Location: 19 Prev | Next Part: 12637878 *Qty: 8 WASHER Call

* Quantity shown indicates the number of pieces used in the diagram.
