BATTERY

Go to Split View

BATTERY

in cart
Go to Split View

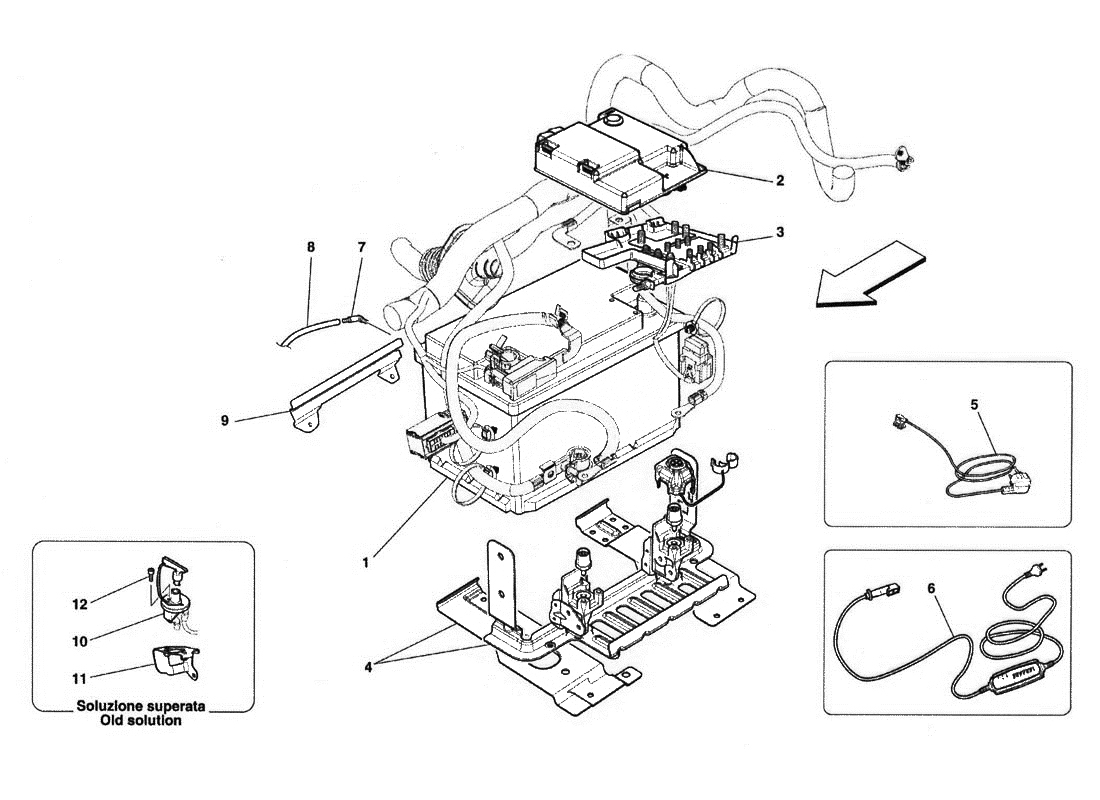

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 214466 *Qty: 1 VR760 12V BATTERY -Applicable up to Ass. No. 91561- -Applicable until depletion- Call
Location: 1 Prev | Next Part: 214466 *Qty: 1 70AH L3 VRLA 760A BATTERY -Applicable from Ass. No. 91562- -Applicable after depletion of 168852- Call
Location: 2 Prev | Next Part: 251161 *Qty: 1 COVER $35.55
Location: 3 Prev | Next Part: 277404 *Qty: 1 BATTERY ECU -Not for RHD- $249.20
Location: 3 Prev | Next Part: 263385 *Qty: 1 BATTERY ECU -Applicable for RHD- Call
Location: 4 Prev | Next Part: 11566227 *Qty: 2 SCREW Call
Location: 5 Prev | Next Part: 258698 *Qty: 1 POWER CABLE -Not for RHD- $53.21
Location: 5 Prev | Next Part: 263383 *Qty: 1 POWER CABLE -Applicable for RHD- Call
Location: 6 Prev | Next Part: 260120 *Qty: 1 BATTERY CHARGER -Not for USA. CDN. RHD and J- Call
Location: 6 Prev | Next Part: 260123 *Qty: 1 BATTERY CHARGER -Applicable for UK- Call
Location: 6 Prev | Next Part: 260122 *Qty: 1 BATTERY CHARGER -Applicable for AUS- $355.95
Location: 6 Prev | Next Part: 260124 *Qty: 1 BATTERY CHARGER -Applicable for J- Superseded
Location: 6 Prev | Next Part: 260121 *Qty: 1 BATTERY CHARGER -Applicable for USA and CDN- Superseded
Location: 7 Prev | Next Part: 199631 *Qty: 1 CONNECTOR $0.90
Location: 8 Prev | Next Part: 262706 *Qty: 1 BATTERY BREATHER PIPE $6.23
Location: 9 Prev | Next Part: 82958200 *Qty: 1 RETAINER LIP Call
Location: 10 Prev | Next Part: 240456 *Qty: 1 BATTERY MASTER SWITCH -Applicable up to Ass. No. 90760- $323.34
Location: 11 Prev | Next Part: 82323100 *Qty: 1 BATTERY MASTER SWITCH FASTENER BRACKET -Not for RHD- -Applicable up to Ass. No. 90760- $34.89
Location: 11 Prev | Next Part: 83058300 *Qty: 1 BATTERY MASTER SWITCH FASTENER BRACKET -Applicable for RHD- -Applicable up to Ass. No. 90760- $34.89
Location: 12 Prev | Next Part: 231619 *Qty: 1 SCREW -Applicable up to Ass. No. 90760- $0.90
Location: 13 Prev | Next Part: 82500400 *Qty: 1 LH BATTERY BRACKET -Not for RHD- $33.65
Location: 13 Prev | Next Part: 83021200 *Qty: 1 LH BATTERY BRACKET -Applicable for RHD- Call
Location: 14 Prev | Next Part: 82500300 *Qty: 1 RH BATTERY BRACKET $31.15
Location: 15 Prev | Next Part: 11625624 *Qty: 7 SCREW $0.90
Location: 16 Prev | Next Part: 82514100 *Qty: 1 RETAINER BRACKET -Not for RHD- $28.66
Location: 16 Prev | Next Part: 83130600 *Qty: 1 RETAINER BRACKET -Applicable for RHD- $95.20
Location: 17 Prev | Next Part: 11625624 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 19 Prev | Next Part: 62766300 *Qty: 1 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
