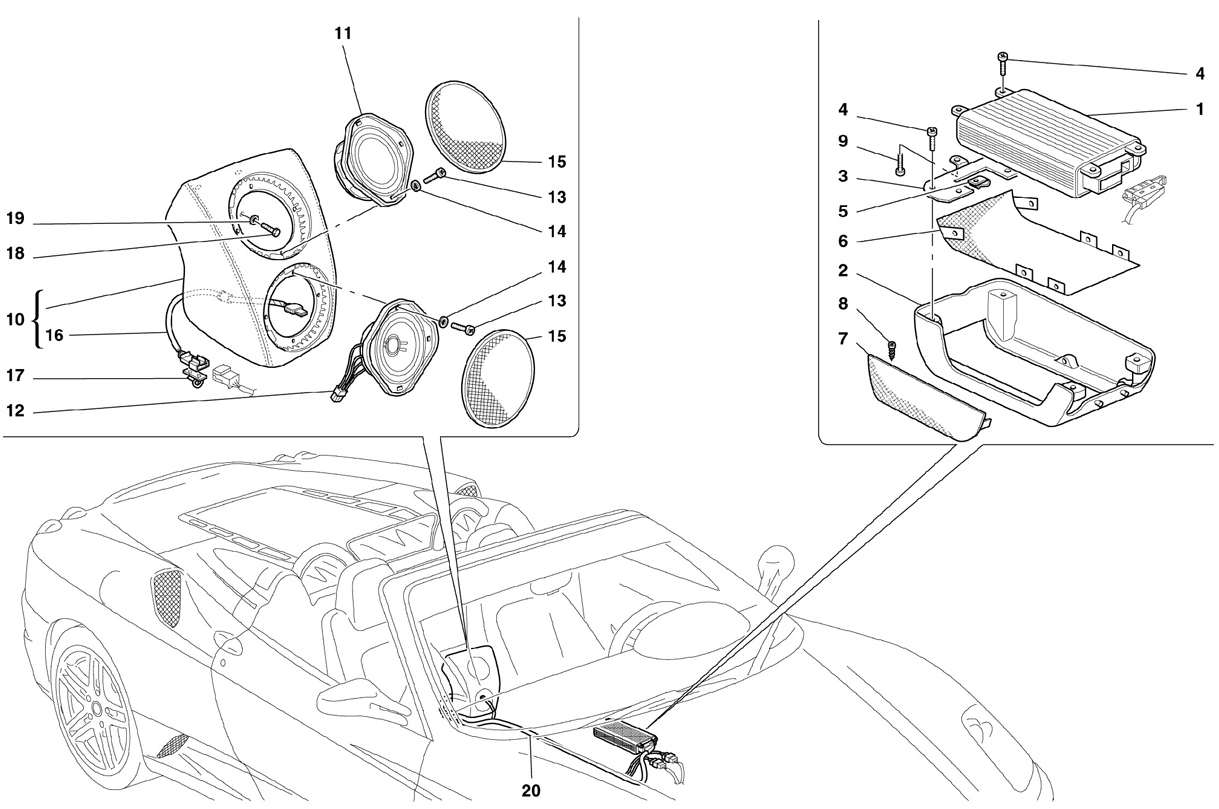

RADIO AMPLIFIER SYSTEM

Go to Split View

RADIO AMPLIFIER SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188900 *Qty: 1 SOUND AMPLIFIER $1,490.69
Location: 2 Prev | Next Part: 688897 *Qty: 1 AMPLIFIER BOX Call
Location: 3 Prev | Next Part: 66770800 *Qty: 1 BRACKET FOR FIXING AMPLIFIER $110.21
Location: 4 Prev | Next Part: 13273977 *Qty: 6 SCREW $0.90
Location: 5 Prev | Next Part: 14371274 *Qty: 2 BRACKET $1.36
Location: 6 Prev | Next Part: 66771400 *Qty: 1 LOWER GRILL FOR AMPLIFIER PROTECTION $57.91
Location: 7 Prev | Next Part: 68935400 *Qty: 1 LATERAL GRILL FOR AMPLIFIER PROTECTION $13.08
Location: 8 Prev | Next Part: 15538601 *Qty: 14 SCREW $0.90
Location: 9 Prev | Next Part: 13274377 *Qty: 1 SCREW $0.90
Location: 10 Prev | Next Part: 666944 *Qty: 1 SUBWOOFER BOX Call
Location: 11 Prev | Next Part: 188609 *Qty: 1 LOUD SPEAKER SUBWOOFER WITHOUT MAGNET Call
Location: 12 Prev | Next Part: 188610 *Qty: 1 LOUD SPEAKER SUBWOOFER Call
Location: 13 Prev | Next Part: 13272077 *Qty: 8 SCREW $1.61
Location: 14 Prev | Next Part: 12637878 *Qty: 8 WASHER Call
Location: 15 Prev | Next Part: 68931100 *Qty: 2 LOUD SPEAKER GRILL $63.45
Location: 16 Prev | Next Part: 190455 *Qty: 1 SUBWOOWER BOX CONNECTION CABLE $75.71
Location: 17 Prev | Next Part: 155978 *Qty: 1 CLIP $0.90
Location: 18 Prev | Next Part: 10903421 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 109483 *Qty: 2 WASHER $1.93
Location: 20 Prev | Next Part: 216918 *Qty: 1 AMPLIFIER CONNECTION CABLE -Not as spare part- -Replaced by 216918- $188.48
Location: 20 Prev | Next Part: 216918 *Qty: 1 AMPLIFIER CONNECTION CABLE $188.48

* Quantity shown indicates the number of pieces used in the diagram.
