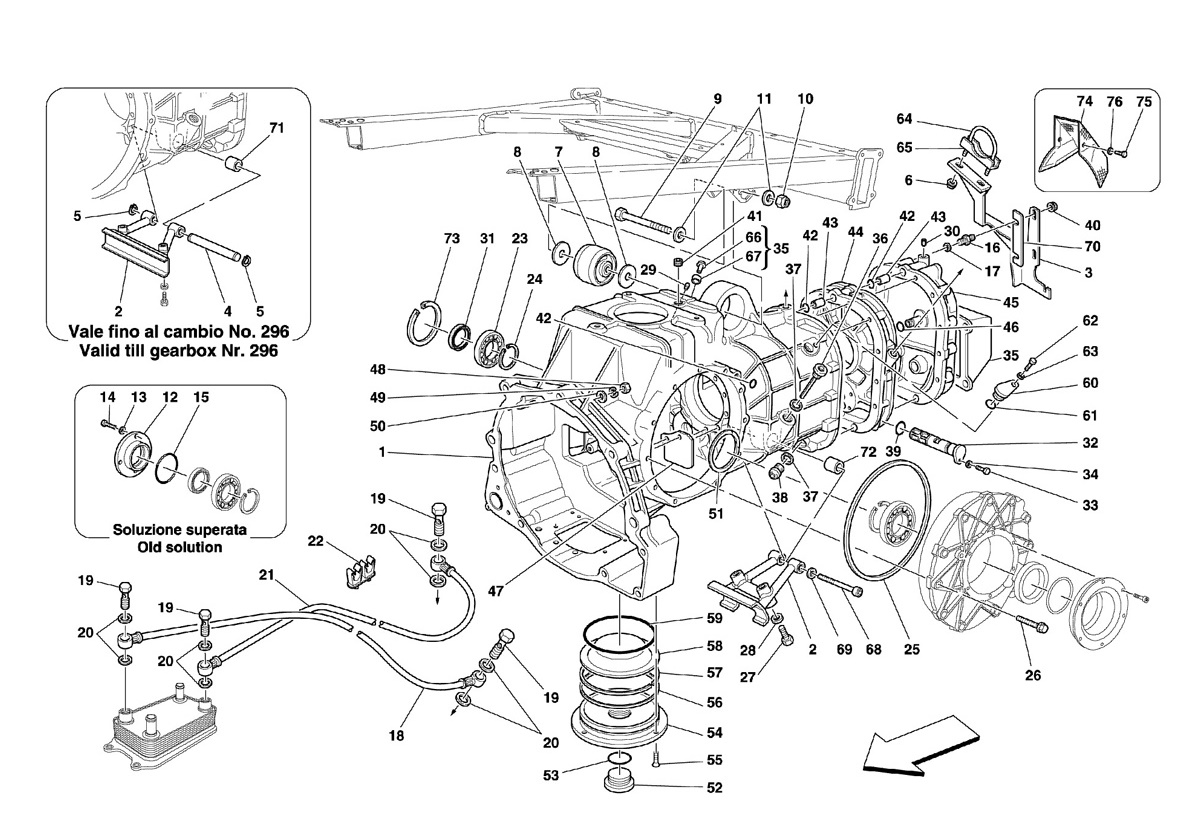

GEARBOX - COVERS

Go to Split View

GEARBOX - COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 215753 *Qty: 1 GEARBOX Unavailable
Location: 1 Prev | Next Part: 192081 *Qty: 1 COMPLETE TRANSMISSION -Not for F1 - -Not for TAIWAN- -For USA and CDN version order also rear shock absorber 207461 - Unavailable
Location: 1 Prev | Next Part: 192081 *Qty: 1 COMPLETE TRANSMISSION -Not for F1 - -Valid for TAIWAN- Unavailable
Location: 1 Prev | Next Part: 192490 *Qty: 1 COMPLETE TRANSMISSION -Valid for F1 - -Not for TAIWAN- -For USA and CDN version order also Unavailable
Location: 1 Prev | Next Part: 192490 *Qty: 1 COMPLETE TRANSMISSION -Valid for F1 - -Valid for TAIWAN- Unavailable
Location: 2 Prev | Next Part: 215599 *Qty: 1 GUARD ABSORBER -Valid from gearbox Nr. 297- $135.52
Location: 2 Prev | Next Part: 207458 *Qty: 1 GUARD ABSORBER -Valid till gearbox Nr. 296- $1,063.53
Location: 3 Prev | Next Part: 223144 *Qty: 1 L.H. BRACKET $108.86
Location: 3 Prev | Next Part: 215403 *Qty: 1 L.H. BRACKET -Valid after stock exhaustion of 215184- -Not as spare part- -Replaced by 223144- Superseded
Location: 3 Prev | Next Part: 215403 *Qty: 1 CATALYST SUPPORT L.H. BRACKET -Valid till stock exhaustion- Superseded
Location: 3 Prev | Next Part: 223143 *Qty: 1 R.H. BRACKET $118.78
Location: 3 Prev | Next Part: 223143 *Qty: 1 R.H. BRACKET -Valid after stock exhaustion of 214747- -Not as spare part- -Replaced by 223143- $118.78
Location: 3 Prev | Next Part: 214747 *Qty: 1 CATALYST SUPPORT R.H. BRACKET -Valid till stock exhaustion- Superseded
Location: 4 Prev | Next Part: 207460 *Qty: 1 PIN -Valid till gearbox Nr. 296- $17.41
Location: 5 Prev | Next Part: 11067274 *Qty: 2 SEEGER RING -Valid till gearbox Nr. 296- $0.90
Location: 6 Prev | Next Part: 14058519 *Qty: 4 NUT $0.90
Location: 7 Prev | Next Part: 237531 *Qty: 1 GEARBOX SUPPORT PAD $97.89
Location: 7 Prev | Next Part: 237531 *Qty: 1 GEARBOX SUPPORT PAD -Not as spare part- -Replaced by 237531- $97.89
Location: 7 Prev | Next Part: 186698 *Qty: 1 GEARBOX SUPPORT PAD -Not as spare part now- -Replaced by 220338- Superseded
Location: 8 Prev | Next Part: 188141 *Qty: 2 RETAINING WASHER $23.20
Location: 9 Prev | Next Part: 11117134 *Qty: 1 SCREW $6.04
Location: 10 Prev | Next Part: 106004 *Qty: 1 NUT $1.43
Location: 11 Prev | Next Part: 14496824 *Qty: 2 SHER $0.90
Location: 12 Prev | Next Part: 183981 *Qty: 1 R.H. FLANGE FOR SHAFT -Old solution- $152.09
Location: 13 Prev | Next Part: 11194379 *Qty: 4 SHER -Old solution- $0.90
Location: 14 Prev | Next Part: 10902224 *Qty: 4 SCREW -Old solution- $0.90
Location: 15 Prev | Next Part: 14460981 *Qty: 1 O.R. GASKET -Old solution- $11.65
Location: 16 Prev | Next Part: 215111 *Qty: 5 STUD $16.25
Location: 16 Prev | Next Part: 215113 *Qty: 1 STUD $13.92
Location: 17 Prev | Next Part: 14496524 *Qty: 6 SHER $0.90
Location: 18 Prev | Next Part: 198163 *Qty: 1 OIL DELIVERY PIPE $130.76
Location: 19 Prev | Next Part: 184727 *Qty: 4 UNION $6.06
Location: 20 Prev | Next Part: 145192 *Qty: 8 GASKET $8.60
Location: 21 Prev | Next Part: 198166 *Qty: 1 OIL RETURN PIPE $111.04
Location: 22 Prev | Next Part: 65250000 *Qty: 2 CLIP -Not as spare part- -Replaced by 232554- $2.59
Location: 22 Prev | Next Part: 232554 *Qty: 2 PIPES FIXING BRACKET $8.37
Location: 23 Prev | Next Part: 184995 *Qty: 1 BALLBEARING $72.82
Location: 24 Prev | Next Part: 184994 *Qty: 1 FLEXIBLE RING $2.88
Location: 25 Prev | Next Part: 206351 *Qty: 1 THICKNESS -mm. 3,0- $39.46
Location: 25 Prev | Next Part: 206350 *Qty: 1 THICKNESS -mm. 2,8- $39.46
Location: 25 Prev | Next Part: 206349 *Qty: 1 THICKNESS -mm. 2,2- $39.46
Location: 25 Prev | Next Part: 205881 *Qty: 1 THICKNESS -mm. 2,5- $39.46
Location: 26 Prev | Next Part: 16287421 *Qty: 11 SCREW $0.90
Location: 27 Prev | Next Part: 15231524 *Qty: 2 SCREW $1.07
Location: 28 Prev | Next Part: 12601474 *Qty: 2 SHER $0.90
Location: 29 Prev | Next Part: 14326001 *Qty: 1 THREADED PLUG $0.90
Location: 30 Prev | Next Part: 14328101 *Qty: 1 THREADED PLUG -Not as spare part- -D. 8- $0.90
Location: 30 Prev | Next Part: 14326050 *Qty: 1 THREADED PLUG -Not as spare part- -D. 10- $1.50
Location: 31 Prev | Next Part: 181618 *Qty: 1 R.H. OIL RING-Old solution- $49.38
Location: 31 Prev | Next Part: 184006 *Qty: 1 R.H. OIL RING $49.56
Location: 32 Prev | Next Part: 182100 *Qty: 1 GEAR BOX OIL FILTER $125.10
Location: 33 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 11199277 *Qty: 1 SHER $0.90
Location: 35 Prev | Next Part: 207461 *Qty: 1 REAR SHOCK ABSORBER -Valid for USA and CDN- $240.43
Location: 36 Prev | Next Part: 182117 *Qty: 1 OIL LEVEL ROD $59.87
Location: 37 Prev | Next Part: 10263460 *Qty: 3 GASKET Superseded
Location: 38 Prev | Next Part: 183962 *Qty: 2 PLUG $20.42
Location: 39 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $2.59
Location: 40 Prev | Next Part: 14059311 *Qty: 6 NUT $0.90
Location: 41 Prev | Next Part: 14324911 *Qty: 1 PLUG $0.99
Location: 42 Prev | Next Part: 14456981 *Qty: 4 GASKET $1.07
Location: 43 Prev | Next Part: 150957 *Qty: 4 CENTERING BUSHING $9.41
Location: 44 Prev | Next Part: 173611 *Qty: 1 PLATE $1,278.94
Location: 45 Prev | Next Part: 212634 *Qty: 1 REAR COVER $319.34
Location: 45 Prev | Next Part: 212634 *Qty: 1 REAR COVER -Not as spare part now- -Replaced by 212634- $319.34
Location: 46 Prev | Next Part: 137192 *Qty: 2 GASKET $0.90
Location: 47 Prev | Next Part: 183986 *Qty: 1 PLATE $4.11
Location: 48 Prev | Next Part: 133988 *Qty: 7 NUT $0.90
Location: 49 Prev | Next Part: 127497 *Qty: 7 SHER $0.90
Location: 50 Prev | Next Part: 14496624 *Qty: 7 SHER $0.90
Location: 51 Prev | Next Part: 185034 *Qty: 1 RING -Thickness mm. 2,60- -Possible fitting- $45.89
Location: 51 Prev | Next Part: 185033 *Qty: 1 RING -Thickness mm. 2,95- -Possible fitting- $45.89
Location: 51 Prev | Next Part: 185029 *Qty: 1 RING -Thickness mm. 3,30- $45.89
Location: 52 Prev | Next Part: 10276140 *Qty: 1 PLUG $36.02
Location: 53 Prev | Next Part: 10265060 *Qty: 1 GASKET $0.90
Location: 54 Prev | Next Part: 198596 *Qty: 1 OIL FILTER COVER $117.25
Location: 55 Prev | Next Part: 14440620 *Qty: 4 SCREW $0.90
Location: 56 Prev | Next Part: 207541 *Qty: 1 GASKET $16.60
Location: 57 Prev | Next Part: 185723 *Qty: 1 SEEGER RING $4.80
Location: 58 Prev | Next Part: 122429 *Qty: 1 OIL FILTER $12.36
Location: 59 Prev | Next Part: 190183 *Qty: 1 O.R. GASKET $23.17
Location: 60 Prev | Next Part: 185721 *Qty: 1 PLUG -Not for F1 - $5.86
Location: 61 Prev | Next Part: 14453481 *Qty: 1 O.R. GASKET-Not for F1- $2.59
Location: 62 Prev | Next Part: 10902224 *Qty: 1 SCREW-Not for F1- $0.90
Location: 63 Prev | Next Part: 11194379 *Qty: 1 SHER -Not for F1- $0.90
Location: 64 Prev | Next Part: 216085 *Qty: 2 RETAINER -Valid till engine Nr.85432- -Valid till gearbox Nr.117- $25.24
Location: 64 Prev | Next Part: 216085 *Qty: 2 RETAINER -Valid from engine Nr.85433- -Valid from gearbox Nr.118- $25.24
Location: 65 Prev | Next Part: 215058 *Qty: 2 BRACKET $38.55
Location: 66 Prev | Next Part: 197797 *Qty: 1 BREATHER $27.31
Location: 67 Prev | Next Part: 213860 *Qty: 1 BUSHING -Old solution- $18.21
Location: 68 Prev | Next Part: 14314774 *Qty: 1 SCREW -Valid from gearbox Nr. 297- $7.96
Location: 69 Prev | Next Part: 13507734 *Qty: 1 SHER -Valid from gearbox Nr. 297- $1.20
Location: 70 Prev | Next Part: 215508 *Qty: 2 SPACER -Possible fitting- -Valid from engine Nr.88794- -Valid from gearbox Nr.159- $4.29
Location: 71 Prev | Next Part: 197621 *Qty: 1 BUSHING Outer ?? 30 mm. Inner ?? 24 mm. -Valid till gearbox Nr. 208- Unavailable
Location: 71 Prev | Next Part: 207459 *Qty: 1 BUSHING Outer ?? 32 mm. Inner ?? 24 mm. -Valid from gearbox Nr. 209 and till gearbox Nr. 296- Unavailable
Location: 72 Prev | Next Part: 213174 *Qty: 1 BUSHING Outer ?? 32 mm. Inner ?? 17 mm. -Valid from gearbox Nr. 297- $66.30
Location: 73 Prev | Next Part: 185723 *Qty: 1 SEEGER RING $4.80
Location: 74 Prev | Next Part: 67912300 *Qty: 1 ANTI-HEAT SHIELD -Valid till stock exhaustion- $177.97
Location: 74 Prev | Next Part: 69619500 *Qty: 1 ANTI-HEAT SHIELD -Valid after stock exhaustion of 67912300- $52.33
Location: 75 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 76 Prev | Next Part: 14446924 *Qty: 2 SHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
