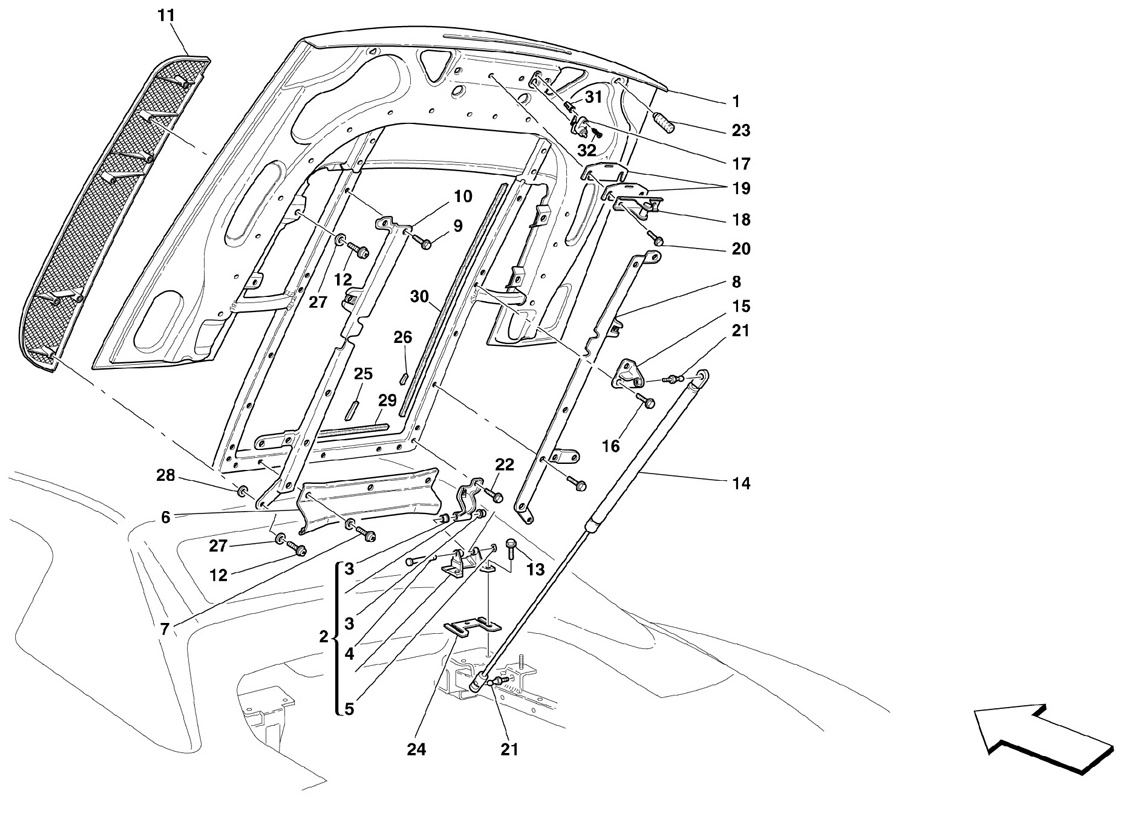

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68413111 *Qty: 1 SHEETED REAR HOOD BONNET $3,192.96
Location: 2 Prev | Next Part: 65789500 *Qty: 1 R.H. HINGE $140.94
Location: 2 Prev | Next Part: 65789900 *Qty: 1 L.H. HINGE $140.94
Location: 3 Prev | Next Part: 62825300 *Qty: 8 HINGE BUSHING $30.78
Location: 4 Prev | Next Part: 64807100 *Qty: 1 PIN $9.20
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 65796700 *Qty: 1 FRONT HOOD CONTOUR $74.42
Location: 7 Prev | Next Part: 66294400 *Qty: 3 SCREW $1.49
Location: 8 Prev | Next Part: 68854400 *Qty: 1 R.H. PLATE $36.43
Location: 9 Prev | Next Part: 66157800 *Qty: 10 SCREW $2.15
Location: 10 Prev | Next Part: 68854500 *Qty: 1 L.H. PLATE $36.43
Location: 11 Prev | Next Part: 68581500 *Qty: 1 L.H. GRILL-Grey- $364.08
Location: 11 Prev | Next Part: 68997700 *Qty: 1 L.H. GRILL -Valid for Titanium gray and Silverstone gray coloured cars- $363.84
Location: 11 Prev | Next Part: 68927100 *Qty: 1 L.H. GRILL -Carbon version- $3,093.90
Location: 11 Prev | Next Part: 68581400 *Qty: 1 R.H. GRILL-Grey- $364.08
Location: 11 Prev | Next Part: 68997600 *Qty: 1 R.H. GRILL -Valid for Titanium gray and Silverstone gray coloured cars- $363.84
Location: 11 Prev | Next Part: 68927000 *Qty: 1 R.H. GRILL -Carbon version- $2,625.12
Location: 12 Prev | Next Part: 66294400 *Qty: 10 SCREW-M6x12- $1.49
Location: 12 Prev | Next Part: 69230200 *Qty: 4 SCREW -M 6 x 8- $2.36
Location: 13 Prev | Next Part: 16287124 *Qty: 4 SCREW $1.26
Location: 14 Prev | Next Part: 65796000 *Qty: 2 GAS SPRING $74.49
Location: 15 Prev | Next Part: 65526300 *Qty: 2 BRACKET $37.96
Location: 16 Prev | Next Part: 66233700 *Qty: 4 SCREW $0.97
Location: 17 Prev | Next Part: 143331 *Qty: 1 ADDITIONAL STOP LIGHT MOBILE CONTACT $7.02
Location: 18 Prev | Next Part: 64867900 *Qty: 1 HOOD CLOSING STRIKER $118.65
Location: 19 Prev | Next Part: 65524800 *Qty: 4 ADJUSTING PLATE -Possible fitting- $4.21
Location: 20 Prev | Next Part: 16286027 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 65939900 *Qty: 2 PIN $3.49
Location: 22 Prev | Next Part: 66233600 *Qty: 4 SCREW $1.66
Location: 23 Prev | Next Part: 69058800 *Qty: 2 PAD $0.90
Location: 24 Prev | Next Part: 65901200 *Qty: 4 THICKNESS $2.28
Location: 25 Prev | Next Part: 65714600 *Qty: 4 SPACER $1.90
Location: 26 Prev | Next Part: 63023300 *Qty: 2 SPACER $0.90
Location: 27 Prev | Next Part: 12644478 *Qty: 14 WASHER $0.90
Location: 28 Prev | Next Part: 12643778 *Qty: 0 WASHER -Possible fitting- $0.90
Location: 29 Prev | Next Part: 67774400 *Qty: 2 GASKET $22.54
Location: 30 Prev | Next Part: 67774300 *Qty: 2 GASKET $25.71
Location: 31 Prev | Next Part: 14115380 *Qty: 1 BLOCK $0.97
Location: 32 Prev | Next Part: 16082401 *Qty: 1 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
