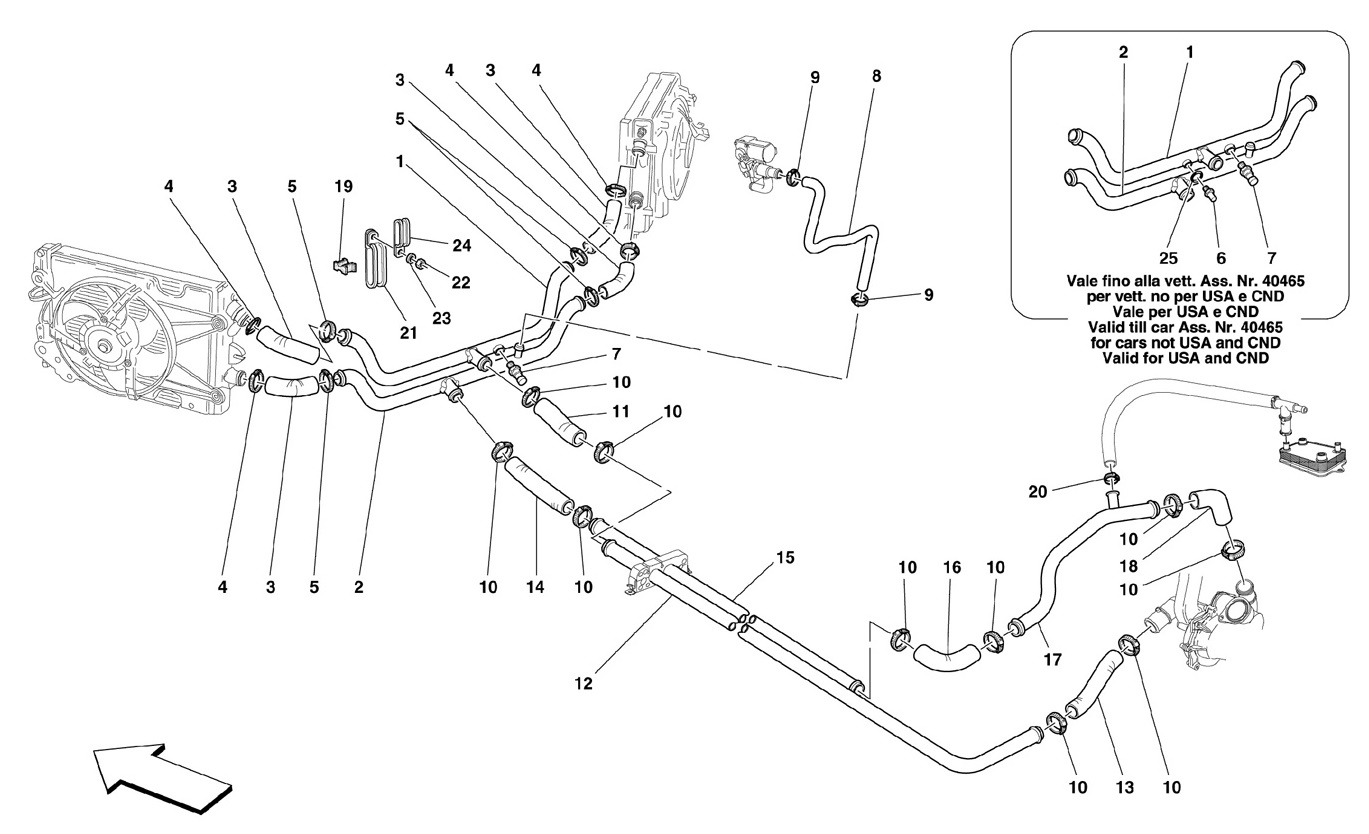

COOLING SYSTEM

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 216372 1 DELIVERY WATER PIPE -Not as spare part now- -Replaced by 216372- $215.63
1 216372 1 DELIVERY WATER PIPE -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- $215.63
1 217917 1 DELIVERY WATER PIPE -Valid from car Ass. Nr. 40466- -Not for USA and CDN- $202.57
2 216373 1 RETURN WATER PIPE -Not as spare part now- -Replaced by 216373- $129.41
2 216373 1 RETURN WATER PIPE $129.41
3 181757 4 RUBBER HOSE -Not as spare part now- -Replaced by 214281- $224.60
3 220948 4 RUBBER HOSE -Valid till stock exhaustion- Unavailable
3 220948 4 RUBBER HOSE -Valid after stock exhaustion of 214281 - -Not as spare part- -Replaced by 238691 and 238695- Unavailable
3 238691 2 RUBBER HOSE -Lower- -Replaces 220948- $67.25
3 238695 2 RUBBER HOSE -Upper- -Replaces 220948- $177.52
4 13001690 4 SCREW COLLAR $1.73
5 168220 4 SCREW COLLAR $1.99
6 180137 1 WATER TEMPERATURE SENSOR -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA and CDN- $29.17
7 176322 1 TEMPERATURE SWITCH Unavailable
8 65231800 1 HOSE FROM TGK VALVE TO RETURN PIPE -Not for RHD- Unavailable
8 68641200 1 HOSE FROM TGK VALVE TO RETURN PIPE -Valid for RHD- $43.84
9 13000390 2 SCREW COLLAR $0.93
10 13001690 10 SCREW COLLAR $1.73
11 202547 1 DELIVERY RUBBER HOSE $156.53
12 206621 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE $64.27
13 208338 1 RUBBER HOSE $100.95
14 202548 1 RETURN RUBBER HOSE $212.36
15 206728 1 UNDERFLOOR RETURN ALUMINIUM TUBE $64.27
16 193463 1 RETURN RUBBER HOSE $181.75
17 209686 1 ALUMINIUM TUBE $51.48
18 206717 1 RUBBER HOSE $76.25
19 183641 2 SPACER $6.01
20 177995 1 CLAMP $1.38
21 183642 2 BRACKET WITH SHEATH $25.56
22 102741 2 NUT $0.90
23 10730114 2 WASHER Unavailable
24 61712500 2 BRACKET WITH SHEATH $2.05
25 10298460 1 GASKET -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
