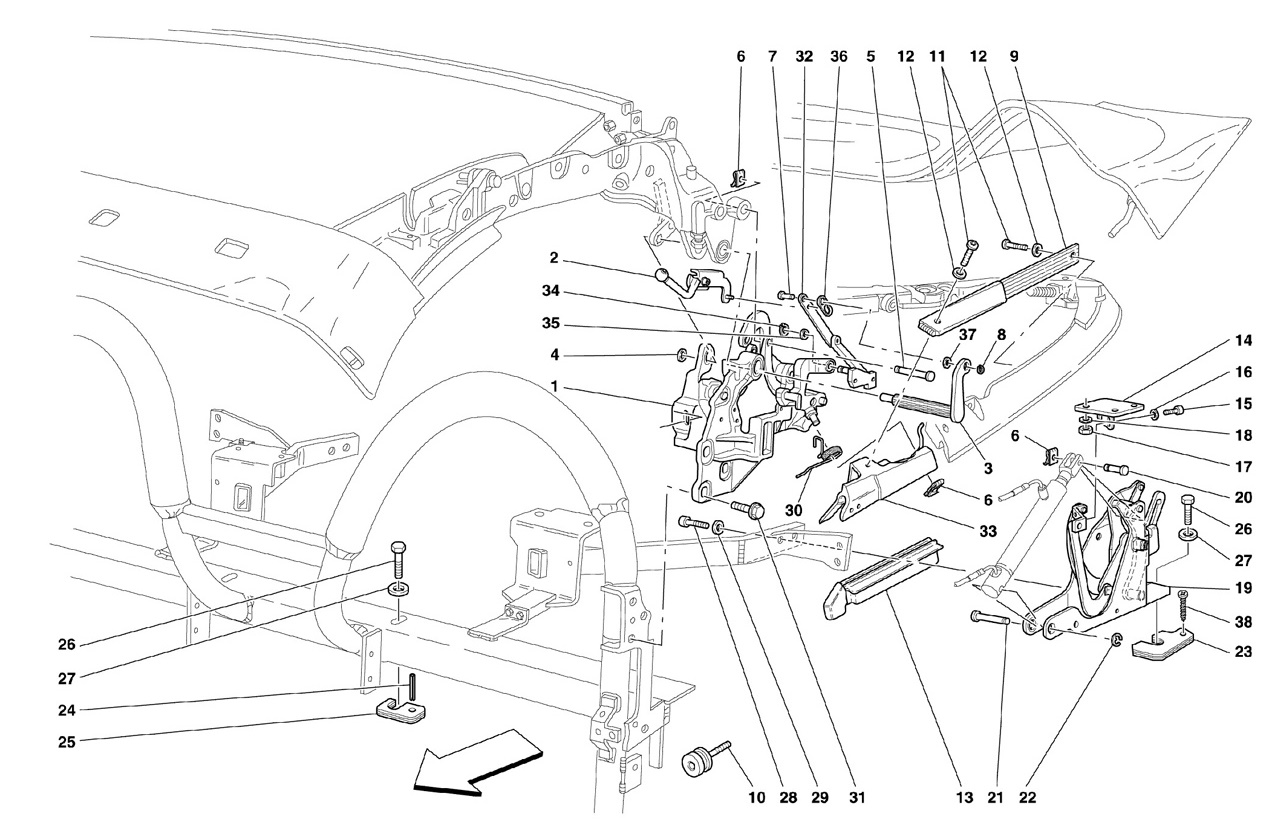

CAPOTE MOVEMENT - LOWER PART

Go to Split View

CAPOTE MOVEMENT - LOWER PART

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66457700 *Qty: 1 R.H. MASTER SUPPORT $1,200.12
Location: 1 Prev | Next Part: 66457600 *Qty: 1 L.H. MASTER SUPPORT $1,229.16
Location: 2 Prev | Next Part: 66689800 *Qty: 1 R.H. TIE ROD $302.32
Location: 2 Prev | Next Part: 66689700 *Qty: 1 L.H. TIE ROD $247.94
Location: 3 Prev | Next Part: 66457900 *Qty: 1 R.H. COMPLETE SPLINED PIN $245.69
Location: 3 Prev | Next Part: 66457800 *Qty: 1 L.H. COMPLETE SPLINED PIN $245.69
Location: 4 Prev | Next Part: 66683700 *Qty: 2 WASHER $3.97
Location: 5 Prev | Next Part: 66682000 *Qty: 2 PIN $9.06
Location: 6 Prev | Next Part: 66682200 *Qty: 6 CLIP $5.44
Location: 7 Prev | Next Part: 66683800 *Qty: 2 PIN $6.46
Location: 8 Prev | Next Part: 66684500 *Qty: 2 SEEGER $5.05
Location: 9 Prev | Next Part: 66689100 *Qty: 2 ELASTIC WITH PROTECTION Unavailable
Location: 10 Prev | Next Part: 183177 *Qty: 2 ADJUSTMENT TOP SCREW $214.19
Location: 11 Prev | Next Part: 66683900 *Qty: 4 SCREW $8.19
Location: 12 Prev | Next Part: 66684000 *Qty: 4 WASHER $4.52
Location: 13 Prev | Next Part: 66460700 *Qty: 1 R.H.UNION STRETCH ROD $214.60
Location: 13 Prev | Next Part: 66460600 *Qty: 1 L.H.UNION STRETCH ROD $214.60
Location: 14 Prev | Next Part: 66688600 *Qty: 1 R.H. PLATE $101.61
Location: 14 Prev | Next Part: 66688500 *Qty: 1 L.H. PLATE $101.61
Location: 15 Prev | Next Part: 66688700 *Qty: 2 SCREW $4.38
Location: 16 Prev | Next Part: 66688800 *Qty: 2 WASHER $4.49
Location: 17 Prev | Next Part: 66684200 *Qty: 3 NUT $4.60
Location: 18 Prev | Next Part: 66684100 *Qty: 3 WASHER $4.67
Location: 19 Prev | Next Part: 66457500 *Qty: 1 PASSENGER COMPARTMENT R.H. REAR KINEMATIC MOTION Unavailable
Location: 19 Prev | Next Part: 66457300 *Qty: 1 PASSENGER COMPARTMENT L.H. REARKINEMATIC MOTION $1,507.85
Location: 20 Prev | Next Part: 66684300 *Qty: 2 PIN $8.50
Location: 21 Prev | Next Part: 66684400 *Qty: 2 PIN $16.58
Location: 22 Prev | Next Part: 66682400 *Qty: 2 SEEGER $4.46
Location: 23 Prev | Next Part: 182479 *Qty: 2 THICKNESS TH.1 mm Unavailable
Location: 23 Prev | Next Part: 183158 *Qty: 2 THICKNESS TH. 1,5 mm Unavailable
Location: 23 Prev | Next Part: 183157 *Qty: 2 THICKNESS TH.3 mm Unavailable
Location: 24 Prev | Next Part: 14164374 *Qty: 2 FLEXIBLE PIN Unavailable
Location: 25 Prev | Next Part: 184161 *Qty: 2 THICKNESS TH.1 mm $1.92
Location: 25 Prev | Next Part: 184162 *Qty: 2 THICKNESS TH.1,5 mm $1.92
Location: 25 Prev | Next Part: 184159 *Qty: 2 THICKNESS TH.3 mm $2.33
Location: 26 Prev | Next Part: 11307021 *Qty: 4 SCREW $7.17
Location: 27 Prev | Next Part: 11190679 *Qty: 4 WASHER Unavailable
Location: 28 Prev | Next Part: 66683400 *Qty: 4 SCREW $5.54
Location: 29 Prev | Next Part: 66683500 *Qty: 4 SHER $4.67
Location: 30 Prev | Next Part: 66688300 *Qty: 1 R.H. SPRING $35.10
Location: 30 Prev | Next Part: 66688400 *Qty: 1 L.H. SPRING $35.10
Location: 31 Prev | Next Part: 66683600 *Qty: 2 SCREW $12.38
Location: 32 Prev | Next Part: 66958800 *Qty: 1 R.H. LEVER $425.56
Location: 32 Prev | Next Part: 66958900 *Qty: 1 L.H. LEVER $425.56
Location: 33 Prev | Next Part: 66689000 *Qty: 1 R.H. MOULDING $582.04
Location: 33 Prev | Next Part: 66688900 *Qty: 1 L.H. MOULDING $582.04
Location: 34 Prev | Next Part: 66682600 *Qty: 2 SEEGER $4.84
Location: 35 Prev | Next Part: 67049400 *Qty: 2 WASHER $4.64
Location: 36 Prev | Next Part: 67049600 *Qty: 2 RETAINING SMALL PLASTIC PLATE $25.47
Location: 37 Prev | Next Part: 67049500 *Qty: 2 WASHER $7.31
Location: 38 Prev | Next Part: 15904070 *Qty: 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
