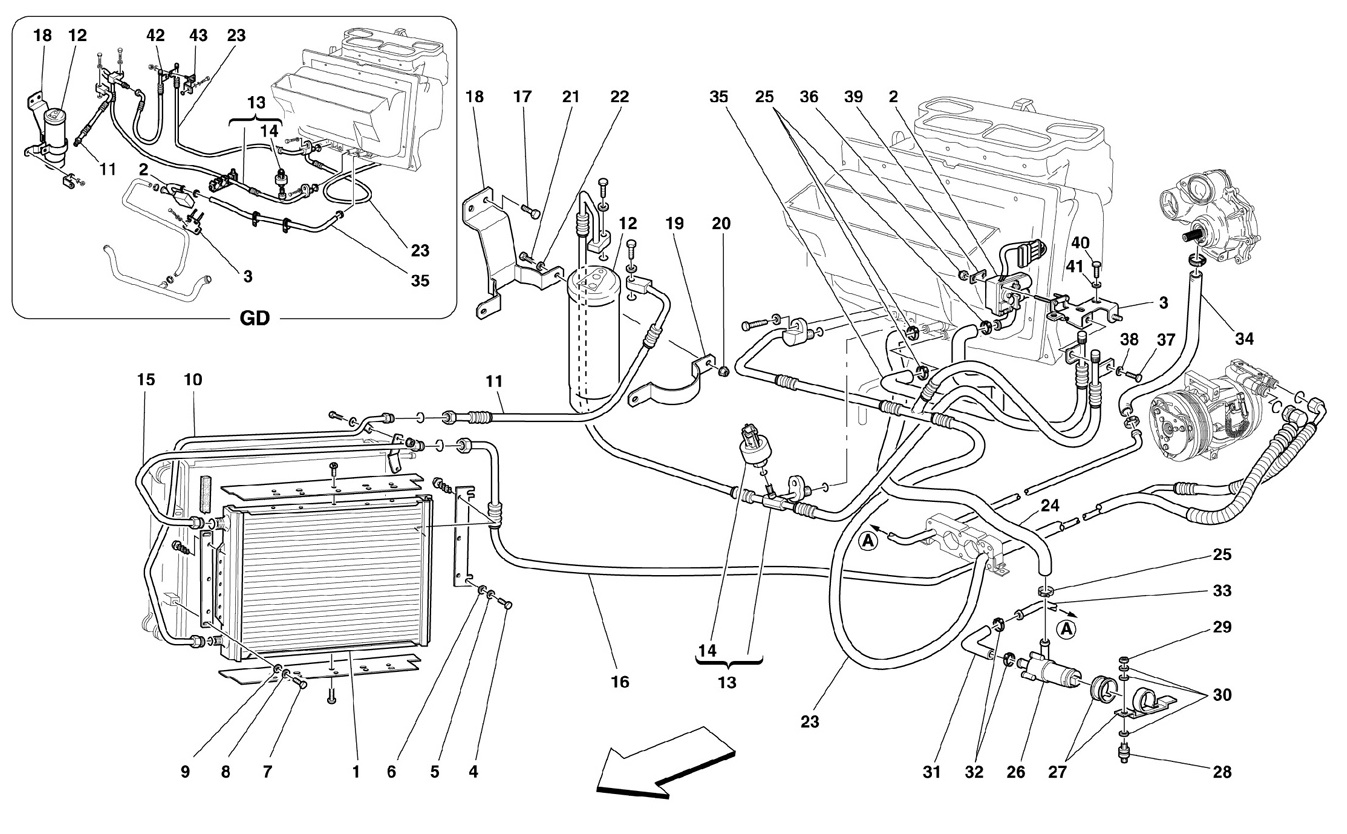

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200340 *Qty: 1 A.C. CONDENSER $717.84
Location: 2 Prev | Next Part: 65066400 *Qty: 1 TGK VALVE $307.62
Location: 3 Prev | Next Part: 66150300 *Qty: 1 BRACKET FOR VALVE FIXING -Not for RHD- $20.64
Location: 3 Prev | Next Part: 68643100 *Qty: 1 BRACKET FOR VALVE FIXING -Valid for RHD- Unavailable
Location: 4 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 10519424 *Qty: 3 WASHER Unavailable
Location: 7 Prev | Next Part: 60909500 *Qty: 1 SCREW $2.39
Location: 8 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 12643724 *Qty: 1 WASHER Superseded
Location: 10 Prev | Next Part: 80668700 *Qty: 1 DELIVERY METAL PIPE $288.16
Location: 11 Prev | Next Part: 67750800 *Qty: 1 HOSE FROM CONDENSER TO FILTER $112.86
Location: 12 Prev | Next Part: 67085100 *Qty: 1 DEHYDRATING FILTER $73.92
Location: 13 Prev | Next Part: 67750900 *Qty: 1 PIPE FROM FILTER TO A.C. SYSTEM -Not for RHD- $629.65
Location: 13 Prev | Next Part: 68640900 *Qty: 1 PIPE FROM FILTER TO A.C. SYSTEM -Valid for RHD- Unavailable
Location: 14 Prev | Next Part: 65628200 *Qty: 1 PRESSOSTAT $164.41
Location: 15 Prev | Next Part: 67750500 *Qty: 1 INLET METAL PIPE $305.10
Location: 16 Prev | Next Part: 67750400 *Qty: 1 UNDERFLOOR PIPE $388.82
Location: 17 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 67942200 *Qty: 1 BRACKET $27.95
Location: 19 Prev | Next Part: 67942200 *Qty: 1 RING $27.95
Location: 20 Prev | Next Part: 14098700 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 68721400 *Qty: 2 SCREW $1.04
Location: 22 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 67750300 *Qty: 1 PIPE FROM A.C. SYSTEM TO COMPRESSOR -Not for RHD- $587.08
Location: 23 Prev | Next Part: 68640800 *Qty: 1 PIPE FROM A.C. SYSTEM TO COMPRESSOR -Valid for RHD- Unavailable
Location: 24 Prev | Next Part: 69741700 *Qty: 1 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for RHD- -Not as spare part- -Replaced by -69741700 $30.37

* Quantity shown indicates the number of pieces used in the diagram.
