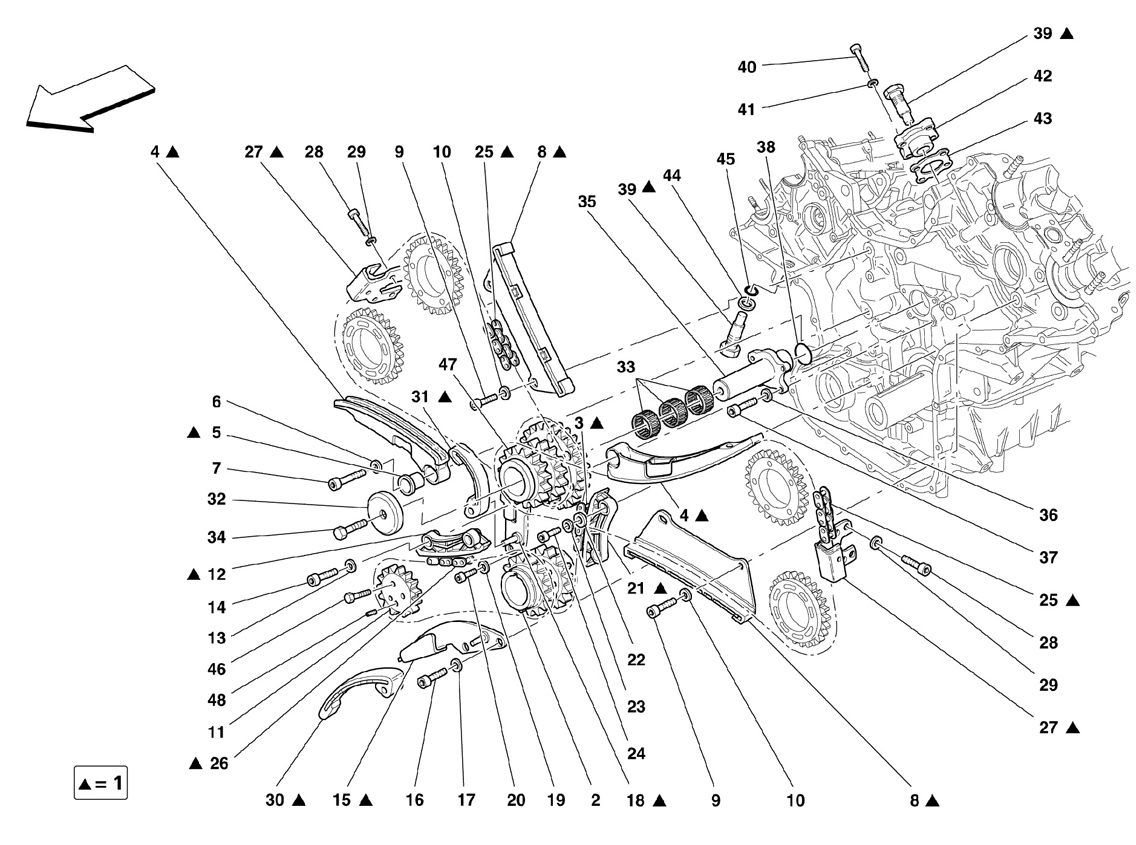

TIMING - CONTROLS

Location	Part #	Quantity*	Description	Price	Add To Cart
1	197879	1	TIMING CONTROL ASSEMBLY	$1,673.71
2	186854	1	CRANKSHAFT TOOTHED WHEEL	$162.18
3	175286	1	TRANSMISSION CHAIN	$51.74
4	186184	2	MOBILE GUIDE SHOE	$167.35
5	175303	2	BUSHING	$39.67
6	10569373	2	SHER		Unavailable
7	14306424	2	SCREW		Unavailable
8	186185	2	FIXED TENSION	$65.55
9	14306224	4	SCREW		Unavailable
10	11193874	4	SHER	$0.90
11	189564	1	TOOTHED WHEEL CONTROL PUMP	$552.14
12	186186	1	FIXED TENSION	$32.76
13	11197774	2	SHER	$0.90
14	14305424	2	SCREW		Superseded
15	185724	1	GUIDE SHOE SUPPORT	$31.04
16	14305724	2	SCREW	$0.90
17	11197774	2	SHER	$0.90
18	186159	1	GUIDE SHOE SUPPORT	$34.49
19	11197774	2	SHER	$0.90
20	14305724	2	SCREW	$0.90
21	186181	1	FIXED TENSION		Superseded
22	12647624	2	SHER		Unavailable
23	11197774	2	SHER	$0.90
24	14432224	2	SCREW		Superseded
25	193616	2	TIMING CONTROL CHAIN	$158.12
26	175314	1	CHAIN	$53.47
27	189569	2	UPPER FIXED TENSION	$41.39
28	14305934	8	SCREW	$1.97
29	11197774	8	SHER	$0.90
30	185725	1	CHAIN TIGHTENER GUIDE SHOE	$98.33
31	196683	1	CHAIN TIGHTENER GUIDE SHOE	$51.74
32	194262	1	SHOULDER	$36.30
33	175282	3	ROLLER CAGE	$12.16
34	16043124	1	SCREW	$0.90
35	194261	1	SUPPORT -Valid till engine Nr. 116245-	$224.29
35	227197	1	SUPPORT -Valid from engine Nr. 116246-		Unavailable
36	11181574	4	SHER		Unavailable
37	14304224	4	SCREW		Unavailable
38	104212	1	O.R. GASKET -Valid till engine Nr. 116245-	$0.90
39	197880	2	HYDRAULIC TIGHTENER	$163.90
40	14432224	4	SCREW		Superseded
41	11197774	4	SHER	$0.90
42	190060	1	BUSH FOR TIGHTENER	$53.27
43	185854	1	GASKET		Superseded
44	190171	1	SPACER	$8.51
45	192069	1	O.R. GASKET	$0.90
46	189563	3	SCREW	$62.30
47	193565	1	TRANSMISSION TOOTHED WHEEL	$241.55
48	189779	1	DOWEL	$2.74

* Quantity shown indicates the number of pieces used in the diagram.
