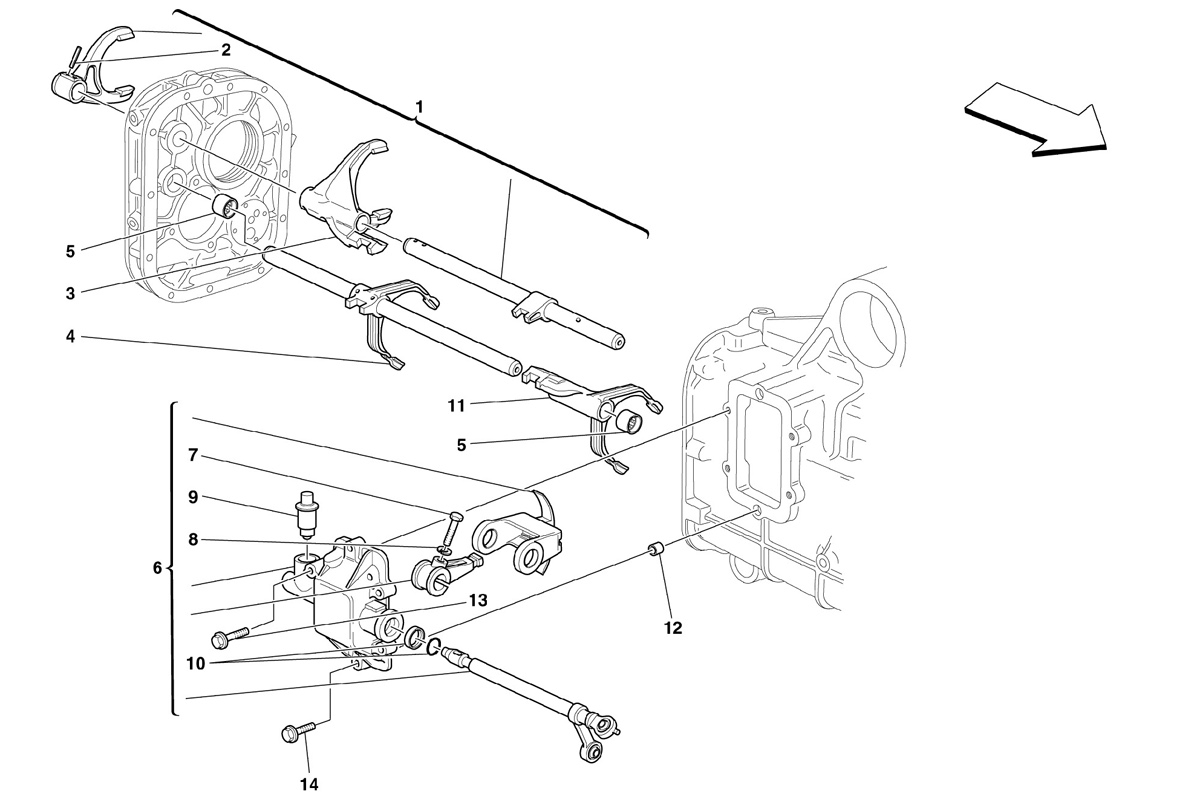

INSIDE GEARBOX CONTROLS

Go to Split View

INSIDE GEARBOX CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 185708 1 CONTROL ROD FOR REVERSE $1,635.98
2 13910470 4 FLEXIBLE PIN $2.74
3 211472 1 CONTROL FORK FOR 1st AND 2nd GEAR $1,432.47
4 183955 1 ROD FOR 5th AND 6th GEAR $484.46
5 183982 2 BEARING BUSH $38.96
6 184022 1 COMPLETE OUTER CONTROL -Not for F1- Unavailable
7 185216 1 SCREW-NotforF1- Unavailable
8 10516679 1 SHER-NotforF1- Unavailable
9 184990 1 ROD-TIP FOR GEARBOX CONTROL SHAFT -Not for F1- $55.01
10 174915 1 RING AND SCRAPER RING -Not for F1- Unavailable
11 211473 1 CONTROL FORK FOR 3rd AND 4th GEAR $700.53
12 145992 2 CENTERING DOWEL -Not for F1 - $136.09
13 16286721 1 SCREW-Not for F1- $1.30
14 16286321 5 SCREW-Not for F1- $2.96

* Quantity shown indicates the number of pieces used in the diagram.
