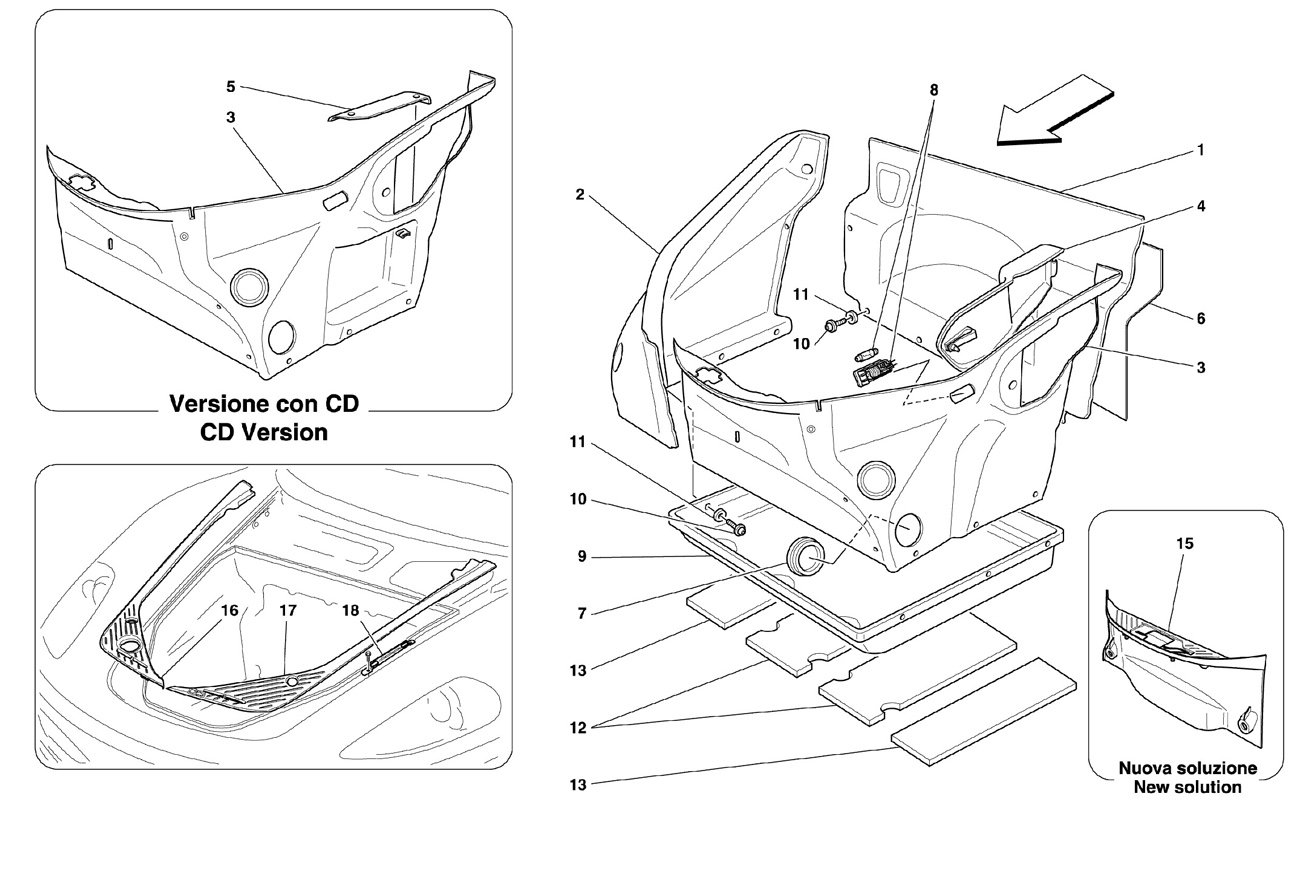

FRONT COMPARTMENT TRIMS

Go to Split View

 FRONT COMPARTMENT TRIMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68140000 *Qty: 1 TRUNK HOOD MOBILE REAR WALL $980.43
Location: 2 Prev | Next Part: 68511100 *Qty: 1 R.H. SIDE SHIELD $538.53
Location: 3 Prev | Next Part: 68511200 *Qty: 1 L.H. SIDE SHIELD -Not for CD version- -Valid till Ass. Nr. 74671- Call
Location: 3 Prev | Next Part: 80665800 *Qty: 1 L.H. SIDE SHIELD -Not for CD version- -Valid from Ass. Nr. 74672- $837.30
Location: 3 Prev | Next Part: 68511400 *Qty: 1 L.H. SIDE SHIELD -CD Version- -Valid till Ass. Nr. 74671- $1,183.88
Location: 3 Prev | Next Part: 80665900 *Qty: 1 L.H. SIDE SHIELD -CD Version- -Valid from Ass. Nr. 74672- $812.92
Location: 4 Prev | Next Part: 68511300 *Qty: 1 FUSES INSPECTION DOOR $359.01
Location: 5 Prev | Next Part: 68511600 *Qty: 1 CD COMPARTMENT COVER -CD Version- $359.01
Location: 6 Prev | Next Part: 68647100 *Qty: 1 TER PROTECTION CLOTH $55.61
Location: 7 Prev | Next Part: 63965800 *Qty: 4 PLUG $6.33
Location: 8 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $14.27
Location: 9 Prev | Next Part: 68510800 *Qty: 1 LOWER STEP $577.80
Location: 10 Prev | Next Part: 66091000 *Qty: 11 SCREW -L=25mm- $3.26
Location: 10 Prev | Next Part: 65933500 *Qty: 10 SCREW-L=15mm- $1.90
Location: 10 Prev | Next Part: 65970400 *Qty: 10 SCREW-L=15mm- $2.62
Location: 11 Prev | Next Part: 65841100 *Qty: 11 WASHER $1.22
Location: 12 Prev | Next Part: 68510900 *Qty: 2 CENTRAL INSULATION $22.97
Location: 13 Prev | Next Part: 68511000 *Qty: 2 LATERAL INSULATION $41.67
Location: 14 Prev | Next Part: 10863090 *Qty: 1 12V-5W BULB $8.70
Location: 15 Prev | Next Part: 80599900 *Qty: 1 PLATE -Valid from Ass. Nr. 74672- $97.06
Location: 16 Prev | Next Part: 80599600 *Qty: 1 R.H. PLATE $174.41
Location: 17 Prev | Next Part: 80599700 *Qty: 1 L.H. PLATE $174.41
Location: 18 Prev | Next Part: 80599400 *Qty: 4 BRACKET $32.46

* Quantity shown indicates the number of pieces used in the diagram.
