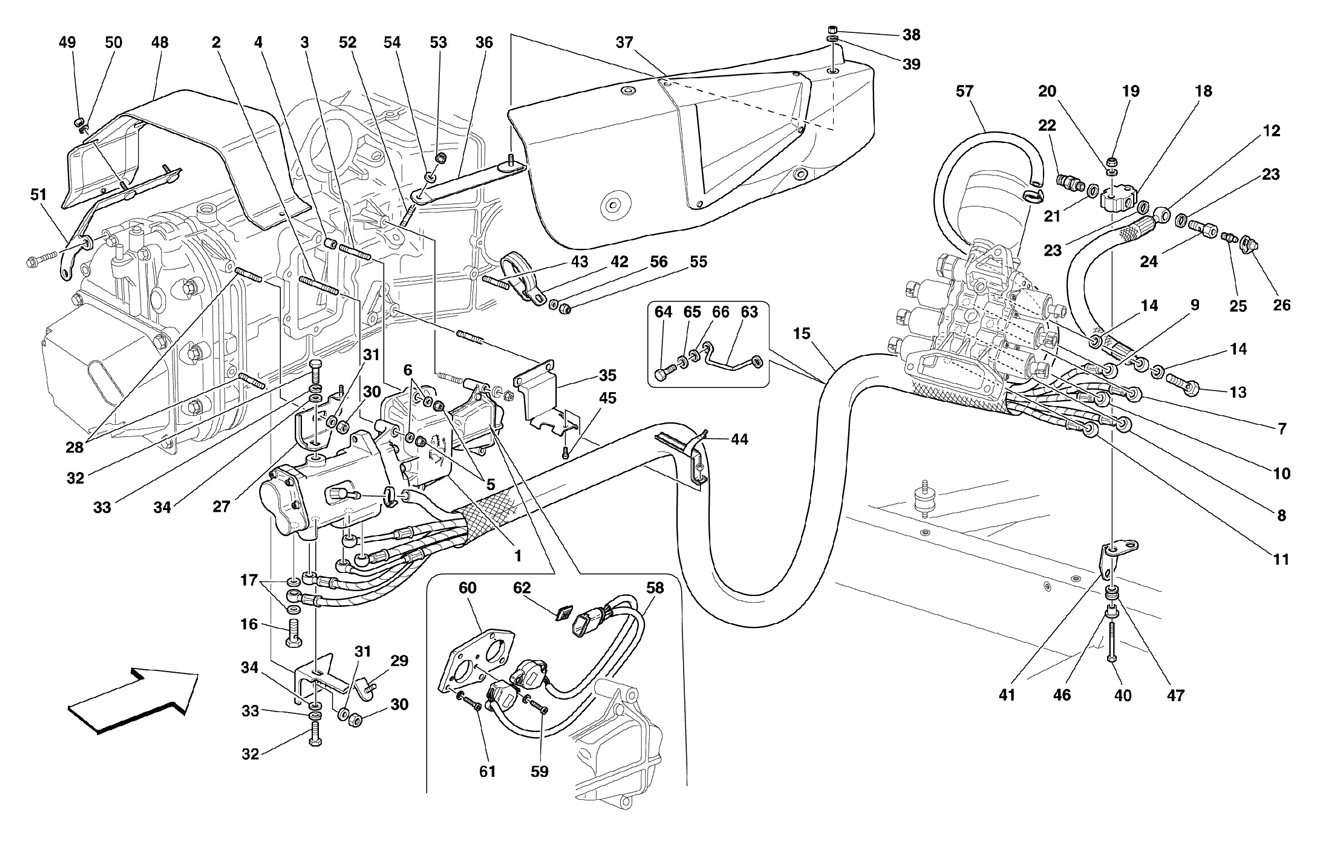

F1 CLUTCH AND GEARBOX HYDRAULIC CONTROL

Location Part # Quantity* Description Price Add To Cart
- 232406 1 F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232406- $14,535.08
- 232406 1 F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid from Ass. Nr. 69347- -Replaces 218562- $14,535.08
- 232406 1 F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid till car Ass. Nr. 61588- $14,535.08
1 220244 1 COMPLETE HYDRAULIC ACTUATOR Unavailable
2 11501024 4 STUD Unavailable
3 11500724 2 STUD $1.97
4 103038 2 CENTERING DOWEL Unavailable
5 16100814 2 NUT Unavailable
6 127496 2 SHER $0.90
7 179340 1 PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- Unavailable
7 248096 1 PIPE (EV1) -Valid from Ass. Nr. 69347- -Replaces 179340- $1,397.63
8 248097 1 PIPE (EV2) -Valid from Ass. Nr. 69347- -Replaces 179342- Unavailable
8 179342 1 PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- $1,621.95
9 179343 1 PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- $1,397.63
9 232409 1 PIPE (EV3) -Valid from Ass. Nr. 69347- -Replaces 179343- $402.75
10 179344 1 PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- $1,690.97
10 232410 1 PIPE (EV4) -Valid from Ass. Nr. 69347- -Replaces 179344- Unavailable
11 179345 1 PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- $1,363.12
11 232411 1 PIPE (EV5) -Valid from Ass. Nr. 69347- -Replaces 179345- Unavailable
12 208395 1 PIPE FROM PUMP TO BLOCK $850.57
13 171454 3 UNION -EV1, EV2, clutch- $71.54
13 204545 3 UNION -EV3, EV4, EV5- $112.14
14 10261060 12 GASKET $0.90
15 179346 1 PROTECTION SHEATH Unavailable
16 171454 2 UNION -EV1,EV2- $71.54
16 204543 3 UNION -EV3, EV4, EV5- $96.22
17 10261060 10 GASKET $0.90
18 175667 1 BLOCK $46.57
19 15896214 2 NUT Unavailable
20 12601279 2 SHER Superseded
21 171755 1 SHER $4.49
22 210468 1 QUICK MALE COUPLING $167.35
23 10261060 2 GASKET $0.90
24 171630 1 UNION $73.26
25 152954 1 BLEEDER SCREW $7.90
26 152955 1 PROTECTION BOOT $7.29
27 174257 1 UPPER ACTUATOR SUPPORT BRACKET $13.38
28 13516424 2 STUD Unavailable
29 248092 1 ER ACTUATOR SUPPORT BRACKET $1,198.00
30 16100814 2 NUT Unavailable
31 127496 2 SHER $0.90
32 16043124 2 SCREW $0.90
33 127496 2 SHER $0.90
34 10519624 2 SHER Unavailable
35 208101 1 PIPES SUPPORTING BRACKET $31.26
36 242669 1 SHIELD SUPPORTING BRACKET Unavailable
37 220681 1 SHIELD FOR ACTUATOR PROTECTION -Not as spare part now- -Replaced by 220681- $414.10
37 220681 1 SHIELD FOR ACTUATOR PROTECTION $414.10
38 160472 4 NUT Unavailable
39 12637824 4 SHER $0.90
40 10903224 2 SCREW Superseded
41 186685 1 BLOCK SUPPORT BRACKET $4.61
42 124034 1 BRACKET WITH SHEATH $3.33
43 13540724 1 STUD Unavailable
44 208103 1 BRACKET $25.82
45 16043124 1 SCREW $0.90
46 149707 2 SPACER $1.50
47 177576 2 CABLE GROMMET Superseded
48 208622 1 SENSOR PROTECTION SHIELD $327.82
49 160472 2 NUT Unavailable
50 12637824 2 SHER $0.90
51 180745 1 SHIELD SUPPORTING BRACKET $62.10
52 13516424 1 STUD Unavailable
53 177778 1 NUT $1.97
54 12638524 2 SHER $0.90
55 102741 1 NUT $0.90
56 12643724 1 SHER Superseded
57 180965 1 OIL RECYCLE PIPE $258.80
58 248095 1 POTENTIOMETERS KIT $893.18
59 192865 4 SCREW Unavailable
60 222502 1 POTENTIOMETERS FLANGE Unavailable
61 192866 4 SCREW Unavailable
62 213472 1 CLIP $7.15
63 208842 1 BRACKET $7.61
64 10902424 2 SCREW Unavailable
65 127494 2 SHER $0.90
66 12643724 2 SHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
