Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 692126 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for USA- -Standard- Call
Location: 1 Prev | Next Part: 693051 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for CDN- -Standard- Call
Location: 1 Prev | Next Part: 802697 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for GB- -Standard- Call
Location: 1 Prev | Next Part: 691419 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for AUS- -Standard- Call
Location: 1 Prev | Next Part: 691418 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for J- -Standard- Call
Location: 1 Prev | Next Part: 676850 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Not for GB- -Air-bag de-activation- Call
Location: 1 Prev | Next Part: 683583 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Valid for GB- -Air-bag de-activation- Call
Location: 1 Prev | Next Part: 802694 *Qty: 1 DASHBOARD WITH INSTRUMENTS -Not for USA, CDN, RHD and J- -Standard- Call
Location: 2 Prev | Next Part: 63352900 *Qty: 1 AIR DUCTING-Not for RHD- $269.56
Location: 2 Prev | Next Part: 65536200 *Qty: 1 AIR DUCTING-Valid for RHD- $274.96
Location: 3 Prev | Next Part: 65132400 *Qty: 1 L.H. SIDE DUCTING $12.11
Location: 3 Prev | Next Part: 65132300 *Qty: 1 R.H. SIDE DUCTING $12.11
Location: 4 Prev | Next Part: 66050600 *Qty: 6 GASKET $3.70
Location: 5 Prev | Next Part: 63353300 *Qty: 3 CENTRAL AIR OPENING GASKET -Not as spare part now- -Replaced by 63353300- $1.95
Location: 5 Prev | Next Part: 63353300 *Qty: 3 CENTRAL AIR OPENING GASKET $1.95
Location: 6 Prev | Next Part: 65132500 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 68811300 *Qty: 5 AIR DIFFUSOR OPENING $209.82
Location: 8 Prev | Next Part: 67796810 *Qty: 1 R.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- Call
Location: 8 Prev | Next Part: 68648100 *Qty: 1 R.H. AIR OUTLET PLATE -Optional- -Carbon version- Call
Location: 9 Prev | Next Part: 67916310 *Qty: 1 L.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- Call
Location: 9 Prev | Next Part: 68648200 *Qty: 1 L.H. AIR OUTLET PLATE -Optional- -Carbon version- Call
Location: 10 Prev | Next Part: 68124210 *Qty: 1 CAMPIONI DEL MONDO 2003 PLATE $209.28
Location: 10 Prev | Next Part: 69065010 *Qty: 1 CAMPIONI DEL MONDO 2004 PLATE -Not as spare part- -Replaced by 69833810- $153.09
Location: 10 Prev | Next Part: 69833810 *Qty: 1 CAMPIONI DEL MONDO PLATE $180.54
Location: 10 Prev | Next Part: 80462510 *Qty: 1 60 ANNI MARK $197.57
Location: 11 Prev | Next Part: 67919000 *Qty: 1 R.H. PLATE $25.35
Location: 12 Prev | Next Part: 67919100 *Qty: 1 L.H. PLATE $25.35
Location: 13 Prev | Next Part: 67790600 *Qty: 1 DASHBOARD FRAME ASSEMBLY -Not for RHD- $580.96
Location: 13 Prev | Next Part: 68356100 *Qty: 1 DASHBOARD FRAME ASSEMBLY -Valid for RHD- Call
Location: 14 Prev | Next Part: 65018300 *Qty: 1 L.H. AIR OUTLET PLATE -Not for RHD- $135.50
Location: 14 Prev | Next Part: 65891000 *Qty: 1 L.H. AIR OUTLET PLATE -Valid for RHD- Call
Location: 14 Prev | Next Part: 65018200 *Qty: 1 R.H. AIR OUTLET PLATE -Not for RHD- $135.50
Location: 14 Prev | Next Part: 65891100 *Qty: 1 R.H. AIR OUTLET PLATE -Valid for RHD- Call
Location: 15 Prev | Next Part: 696595 *Qty: 1 MOULDING FOR WINDSCREEN AIR PLATE -Not for RHD- Call
Location: 15 Prev | Next Part: 696596 *Qty: 1 MOULDING FOR WINDSCREEN AIR PLATE -Valid for RHD- Call
Location: 16 Prev | Next Part: 684217 *Qty: 1 DASH BOARD Call
Location: 17 Prev | Next Part: 67796610 *Qty: 1 UPPER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- $291.20
Location: 17 Prev | Next Part: 68648300 *Qty: 1 UPPER CENTRALPLATE -Optional- -Carbon version- $817.02
Location: 18 Prev | Next Part: 67797010 *Qty: 1 ER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- $172.57
Location: 18 Prev | Next Part: 68648400 *Qty: 1 ER CENTRALPLATE -Optional- -Carbon version- Call
Location: 19 Prev | Next Part: 68719900 *Qty: 1 CAR MODEL PLATE -Standard- Call
Location: 19 Prev | Next Part: 68872700 *Qty: 1 CAR MODEL PLATE -Optional- -Carbon- $333.76
Location: 19 Prev | Next Part: 69119900 *Qty: 1 CUSTOMER PLATE -Optional- -Valid till stock exhaustion- $340.01
Location: 19 Prev | Next Part: 80728900 *Qty: 1 CUSTOMER PLATE -Optional- -Valid after stock exhaustion of 69119900- $406.87
Location: 20 Prev | Next Part: 68927600 *Qty: 4 SCREW -Black- $0.90
Location: 20 Prev | Next Part: 64214100 *Qty: 4 SCREW -Selfblocking- $0.90
Location: 21 Prev | Next Part: 68615200 *Qty: 1 BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Not for RHD- Call
Location: 21 Prev | Next Part: 69074200 *Qty: 1 BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Valid for RHD- Call
Location: 22 Prev | Next Part: 16285127 *Qty: 2 SCREW -Optional- -Valid for cars with amplifier- $0.90
Location: 23 Prev | Next Part: 68134900 *Qty: 1 R.H. SIDE AIR OPENING GASKET $14.26
Location: 23 Prev | Next Part: 68135000 *Qty: 1 L.H. SIDE AIR OPENING GASKET $14.26
Location: 24 Prev | Next Part: 68662200 *Qty: 1 CAR RADIO FRAME $20.84
Location: 25 Prev | Next Part: 14304021 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 12620374 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 69140100 *Qty: 1 CUSTOMER PLATE SUPPORT $52.33

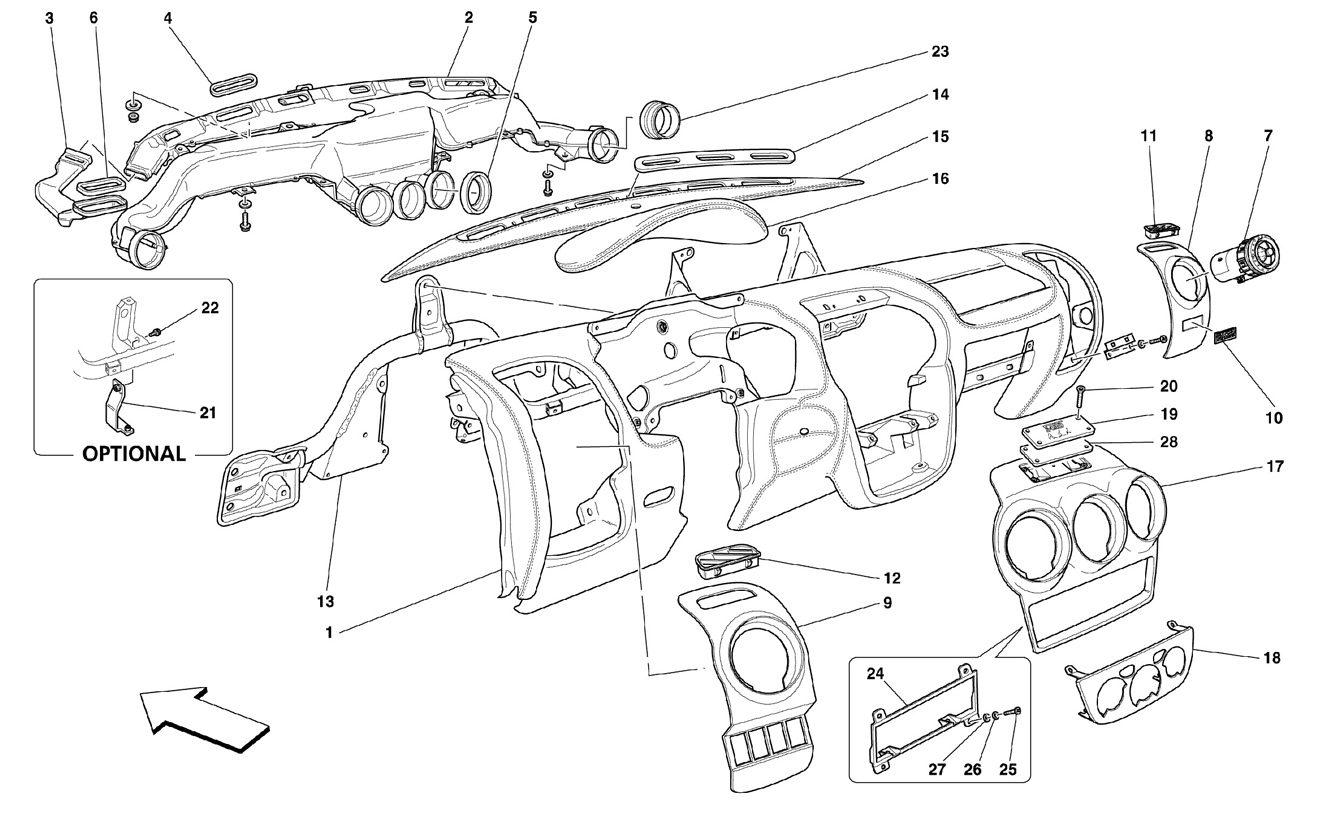

* Quantity shown indicates the number of pieces used in the diagram.
