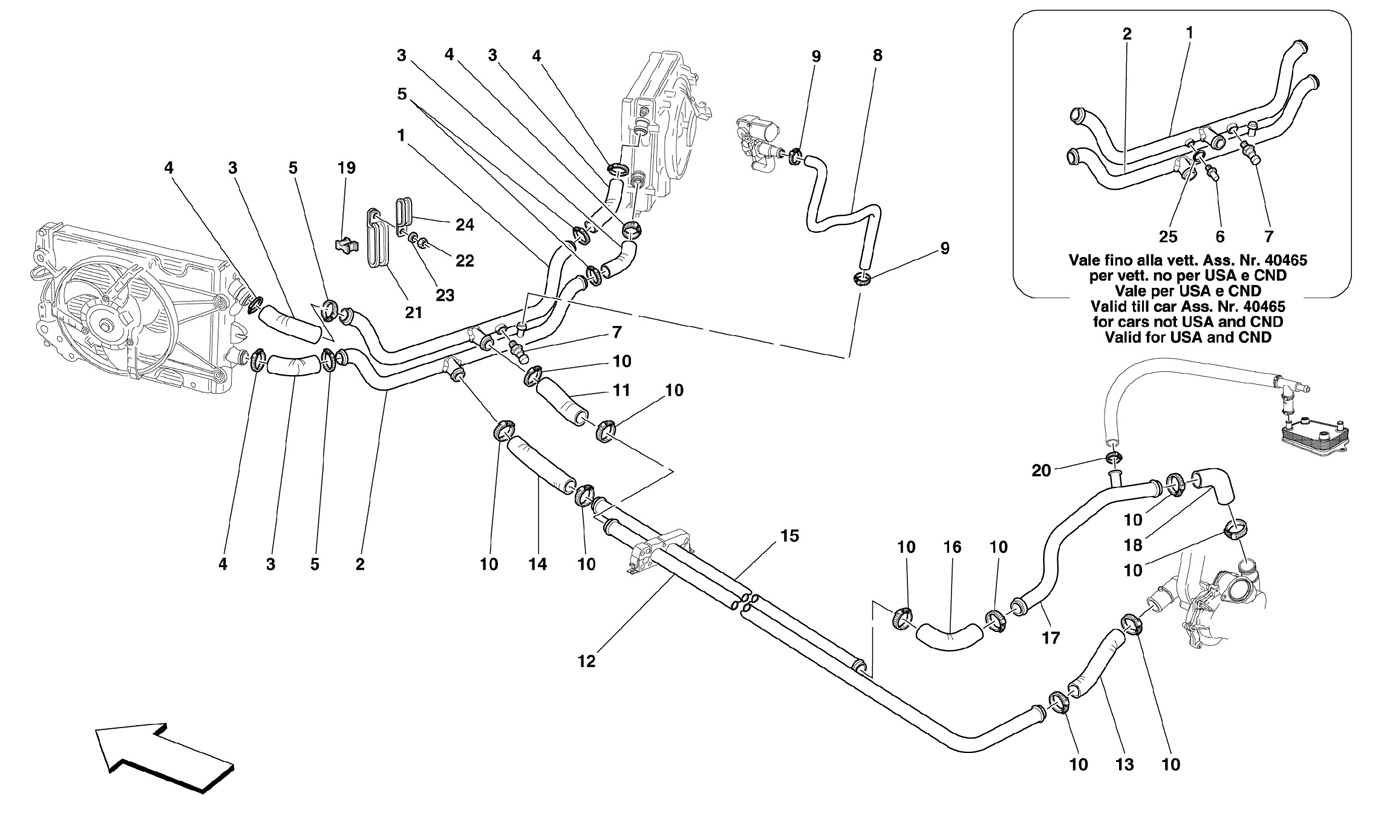

COOLING SYSTEM

Go to Split View

 COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 216372 *Qty: 1 DELIVERY WATER PIPE -Not as spare part now- -Replaced by 216372- $129.33
Location: 1 Prev | Next Part: 216372 *Qty: 1 DELIVERY WATER PIPE -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- $129.33
Location: 1 Prev | Next Part: 217917 *Qty: 1 DELIVERY WATER PIPE -Valid from car Ass. Nr. 40466- -Not for USA and CDN- $194.71
Location: 2 Prev | Next Part: 216373 *Qty: 1 RETURN WATER PIPE -Not as spare part now- -Replaced by 216373- $99.48
Location: 2 Prev | Next Part: 216373 *Qty: 1 RETURN WATER PIPE $99.48
Location: 3 Prev | Next Part: 238695 *Qty: 2 RUBBER HOSE -Upper- -Replaces 220948- $64.67
Location: 3 Prev | Next Part: 181757 *Qty: 4 RUBBER HOSE -Not as spare part now- -Replaced by 214281- $193.77
Location: 3 Prev | Next Part: 220948 *Qty: 4 RUBBER HOSE -Valid till stock exhaustion- Call
Location: 3 Prev | Next Part: 220948 *Qty: 4 RUBBER HOSE -Valid after stock exhaustion of 214281 - -Not as spare part- -Replaced by 238691 and 238695- Call
Location: 3 Prev | Next Part: 238691 *Qty: 2 RUBBER HOSE -Lower- -Replaces 220948- $61.57
Location: 4 Prev | Next Part: 13001690 *Qty: 4 SCREW COLLAR $1.05
Location: 5 Prev | Next Part: 168220 *Qty: 4 SCREW COLLAR $0.90
Location: 6 Prev | Next Part: 180137 *Qty: 1 TER TEMPERATURE SENSOR -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- $26.68
Location: 7 Prev | Next Part: 176322 *Qty: 1 TEMPERATURE SWITCH $32.27
Location: 8 Prev | Next Part: 65231800 *Qty: 1 HOSE FROM TGK VALVE TO RETURN PIPE -Not for RHD- $36.03
Location: 8 Prev | Next Part: 68641200 *Qty: 1 HOSE FROM TGK VALVE TO RETURN PIPE -Valid for RHD- Call
Location: 9 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 13001690 *Qty: 10 SCREW COLLAR $1.05
Location: 11 Prev | Next Part: 202547 *Qty: 1 DELIVERY RUBBER HOSE $57.60
Location: 12 Prev | Next Part: 206621 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE $61.77
Location: 13 Prev | Next Part: 208338 *Qty: 1 RUBBER HOSE $92.40
Location: 14 Prev | Next Part: 202548 *Qty: 1 RETURN RUBBER HOSE $47.12
Location: 15 Prev | Next Part: 206728 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE $61.77
Location: 16 Prev | Next Part: 193463 *Qty: 1 RETURN RUBBER HOSE $119.23
Location: 17 Prev | Next Part: 209686 *Qty: 1 ALUMINIUM TUBE $47.11
Location: 18 Prev | Next Part: 206717 *Qty: 1 RUBBER HOSE $69.80
Location: 19 Prev | Next Part: 183641 *Qty: 2 SPACER $4.43
Location: 20 Prev | Next Part: 177995 *Qty: 1 CLAMP $1.25
Location: 21 Prev | Next Part: 183642 *Qty: 2 BRACKET WITH SHEATH $23.40
Location: 22 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 10730114 *Qty: 2 SHER $0.90
Location: 24 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $1.89
Location: 25 Prev | Next Part: 10298460 *Qty: 1 GASKET -Valid till car Ass. Nr. 40465 for cars not USA and CDN- -Vale per USA e CDN- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
