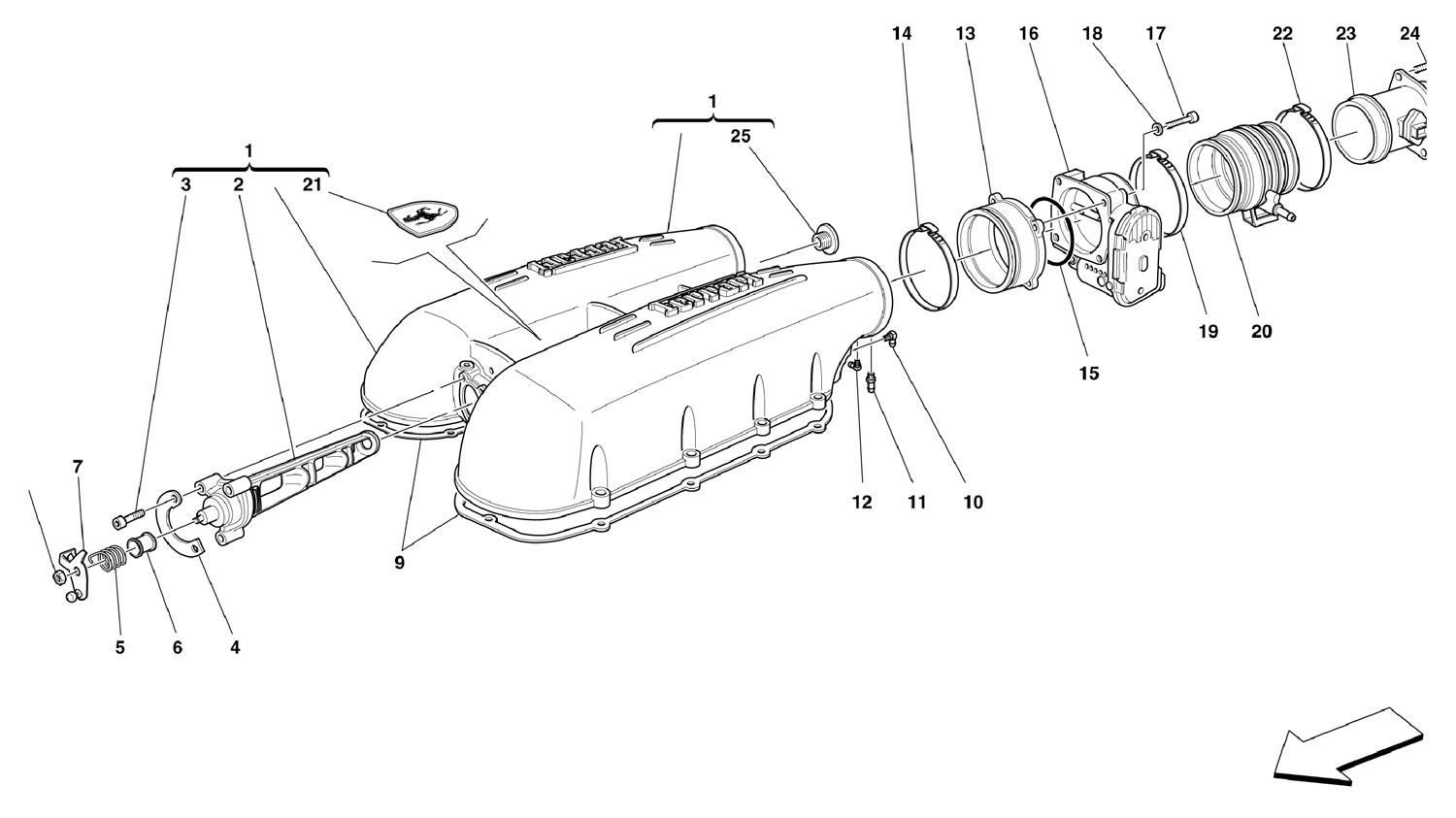

AIR INTAKE MANIFOLD COVER

Location Part # Quantity* Description Price Add To Cart
1 219461 1 SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid till Ass. Nr. 55078- $2,014.87
1 214959 1 SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from Ass. Nr. 55079 and valid till engine Nr. 99607- -Valid till M.Y. 06- $6,789.82
1 214959 1 SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Not as spare part- -Replaced by 214959- $6,789.82
1 214959 1 SUCTION MANIFOLD COVER -Standard- -Aluminium- -Valid from engine Nr. 99608- -Valid from M.Y. 06- $6,789.82
1 219461 1 SUCTION MANIFOLD COVER -Optional- -With carbonium aesthetic cover- $2,014.87
1 238253 1 SUCTION MANIFOLD COVER -Optional- -Carbon version- Unavailable
2 215068 1 ROLLING DRUM -Valid till engine Nr. 99607- -Valid till M.Y. 06- -Cpl. ball bearing- $344.39
2 220668 1 ROLLING DRUM -Valid from engine Nr. 99608- -Valid from M.Y. 06- -For die-cast drum- $2,156.08
3 14305624 3 SCREW Unavailable
4 204873 1 SAFETY PLATE $27.99
5 197761 1 SPRING $91.43
6 205123 1 BUSHING $66.14
7 203401 1 DRUM CONTROL LEVER -Valid till Ass. Nr. 55078- $310.57
7 203401 1 DRUM CONTROL LEVER -Valid from Ass. Nr. 55079- $310.57
8 177613 1 NUT -Valid till engine Nr. 99607- -Valid till M.Y. 06- $9.34
8 212945 1 NUT -Valid from engine Nr. 99608- -Valid from M.Y. 06- $18.66
9 217471 2 GASKET -Not as spare part now- -Replaced by 217471- $48.29
9 217471 2 GASKET $48.29
10 174818 2 UNION $18.96
11 210194 2 UNION Superseded
12 128016 2 UNION $14.29
13 195206 2 SPACER $406.37
14 190151 2 CLAMP $5.16
15 150302 2 O.R. GASKET $3.19
16 179912 2 THROTTLE HOLDER Superseded
17 14305924 8 SCREW Superseded
18 12639724 8 SHER $0.90
19 180046 2 CLAMP $3.51
20 201570 1 R.H. SLEEVE -Valid for USA and CDN- $132.84
20 205095 1 L.H. SLEEVE -Not for USA and CDN- $327.82
20 201572 1 L.H. SLEEVE -Valid for USA and CDN- $127.67
20 205092 1 R.H. SLEEVE -Not for USA and CDN- $327.82
21 214932 1 AESTHETIC SMALL COVER -Standard- -Aluminium- $414.10
21 218327 1 AESTHETIC SMALL COVER -Optional- -Carbonium- Unavailable
22 177981 2 CLAMP $2.27
23 181120 2 AIR FLOW METER $483.12
24 16285127 2 SCREW Superseded
25 210157 1 PLUG $241.55

* Quantity shown indicates the number of pieces used in the diagram.
