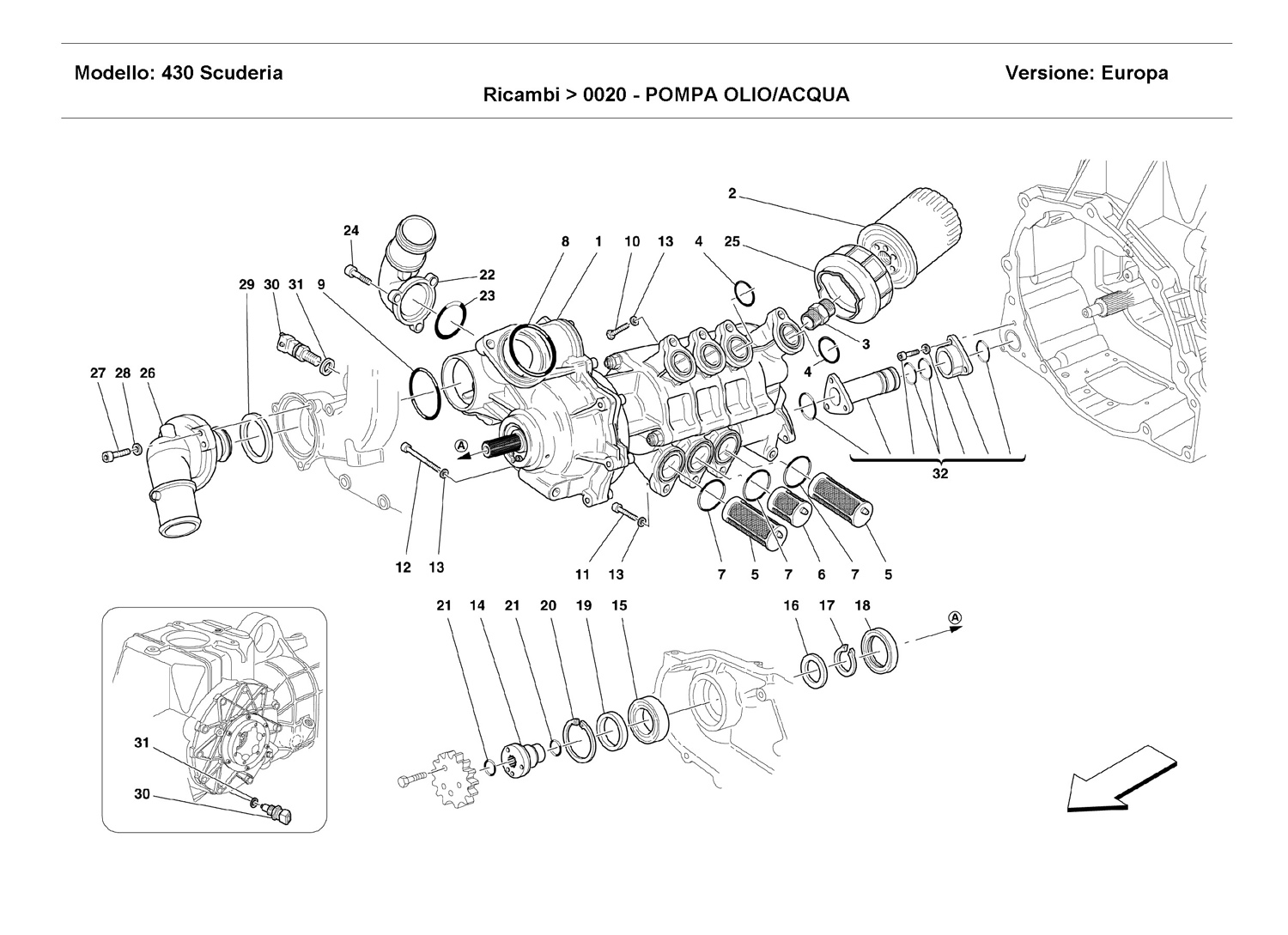

WATER/OIL PUMP

Location Part # Quantity* Description Price Add To Cart
1 217628 1 COMPLETE WATER AND OIL PUMP $2,824.62
2 234742 1 OIL FILTER CARTRIDGE $84.43
3 177604 1 THREADED UNION $21.29
4 133938 4 O.R. GASKET $0.90
5 187051 2 LATERAL OIL RECOVERY FILTER Unavailable
6 187162 1 CENTRAL OIL RECOVERY FILTER $45.45
7 148225 3 O.R. GASKET $0.90
8 132829 1 O.R. GASKET $1.97
9 141250 1 O.R. GASKET $0.90
10 185345 4 SCREW
-M 8X25- 		$3.49
11 231628 3 SCREW
-M 8X25- 		Unavailable
11 231629 1 SCREW
-M 8X30- 		Unavailable
12 231630 2 SCREW
-M 8X65- 		$1.32
13 11198074 10 WASHER Unavailable
14 189778 1 COUPLING $36.22
15 155996 1 BALLBEARING $15.25
16 177597 1 COMPENSATOR RING Unavailable
17 11067276 1 SEEGER RING Unavailable
18 236418 1 GASKET $25.86
19 177596 1 COMPENSATOR RING Unavailable
20 11381076 1 SEEGER RING $2.27
21 186272 2 O.R. GASKET $0.90
22 196104 1 TER INLET COVER
-Not as spare part-
-Replaced by 241609- 		Unavailable
22 241609 1 TER INLET COVER $725.87
23 154191 1 GASKET $1.81
24 231619 3 SCREW Unavailable
25 231414 1 RUBBER BOOT $81.08
26 230887 1 THERMOSTAT COVER $207.04
27 231618 3 SCREW Unavailable
28 11197774 3 WASHER $0.90
29 137873 1 GASKET $5.68
30 180137 2 TEMPERATURE SENSOR $32.46
31 10298460 2 GASKET $0.90
32 240169 1 FLANGE AND PIPE REPLACEMENT SET $569.39

* Quantity shown indicates the number of pieces used in the diagram.
