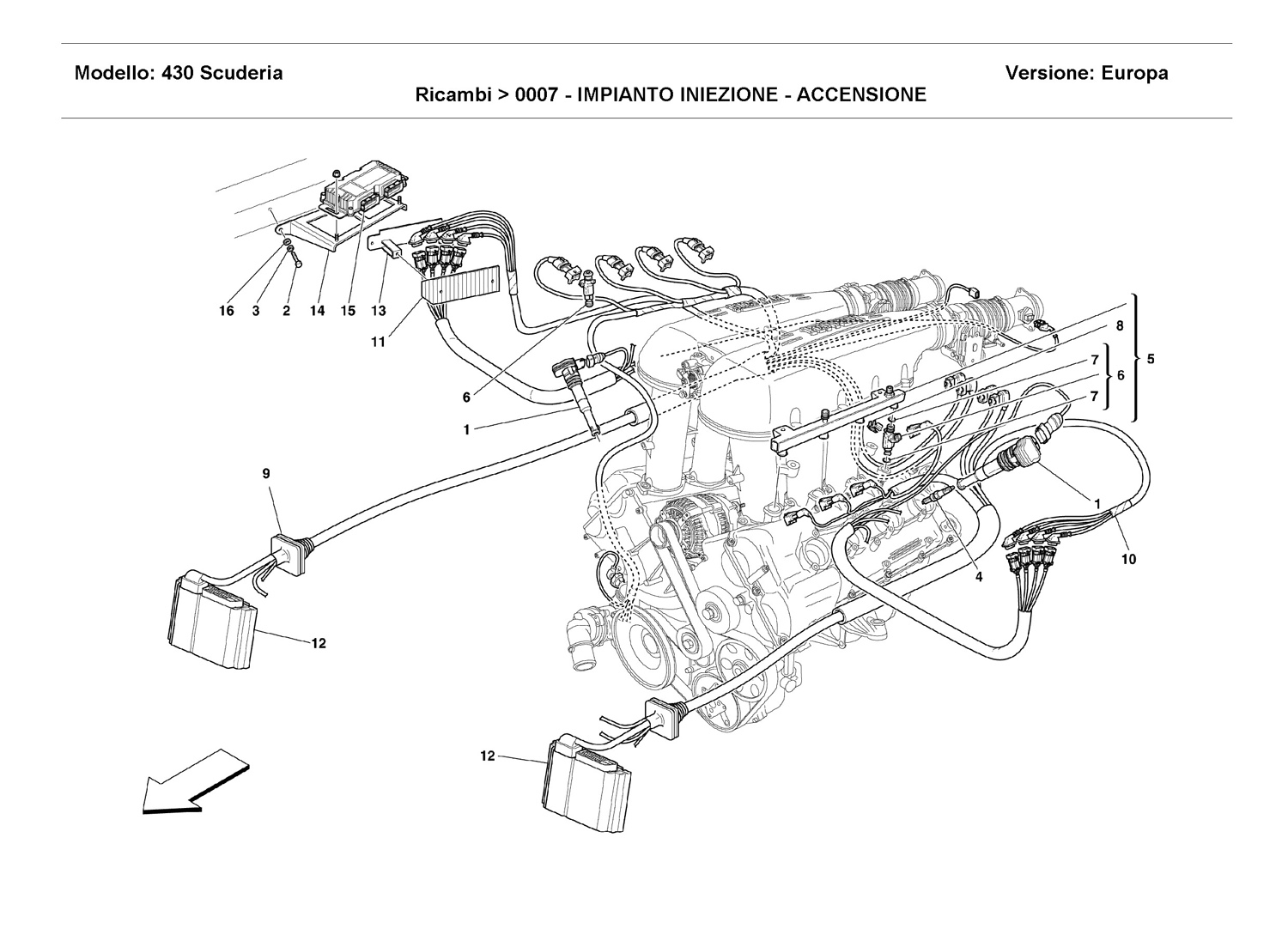

INJECTION DEVICE - IGNITION

Go to Split View

INJECTION DEVICE - IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 231359 *Qty: 8 SINGOL IGNITION COIL Call
Location: 2 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: 192637 *Qty: 8 SPARK PLUG $28.26
Location: 5 Prev | Next Part: 216542 *Qty: 1 R.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $1,116.71
Location: 5 Prev | Next Part: 216543 *Qty: 1 L.H. COMPLETE FUEL TUBE WITH ELECTRO-INJECTORS $1,116.71
Location: 6 Prev | Next Part: 213635 *Qty: 8 ELECTRO-INJECTOR $302.16
Location: 7 Prev | Next Part: 133902 *Qty: 4 GASKET $6.14
Location: 8 Prev | Next Part: 144730 *Qty: 8 INJECTORS RETAINING CLIP $3.42
Location: 9 Prev | Next Part: 237980 *Qty: 1 R.H. SIDE INJECTION CONNECTING CABLES
-Valid till Ass. Nr. 73778-
Call
Location: 9 Prev | Next Part: 242611 *Qty: 1 R.H. SIDE INJECTION CONNECTING CABLES
-Valid from Ass. Nr. 73779-
$1,087.07
Location: 10 Prev | Next Part: 237979 *Qty: 1 L.H. SIDE INJECTION CONNECTING CABLES
-Valid till Ass. Nr. 73778-
Call
Location: 10 Prev | Next Part: 242610 *Qty: 1 L.H. SIDE INJECTION CONNECTING CABLES
-Valid from Ass. Nr. 73779-
$1,087.07
Location: 11 Prev | Next Part: 224383 *Qty: 1 R.H. REAR SHIELD $41.86
Location: 11 Prev | Next Part: 224384 *Qty: 1 L.H. REAR SHIELD $41.86
Location: 12 Prev | Next Part: 226587 *Qty: 2 CONTROL UNIT IGNITION Call
Location: 13 Prev | Next Part: 192535 *Qty: 1 R.H. BRACKET $25.21
Location: 13 Prev | Next Part: 200163 *Qty: 1 L.H. BRACKET $31.51
Location: 14 Prev | Next Part: 233311 *Qty: 1 BRACKET $32.46
Location: 15 Prev | Next Part: 244164 *Qty: 1 ION CONTROL STATION $938.83
Location: 16 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
