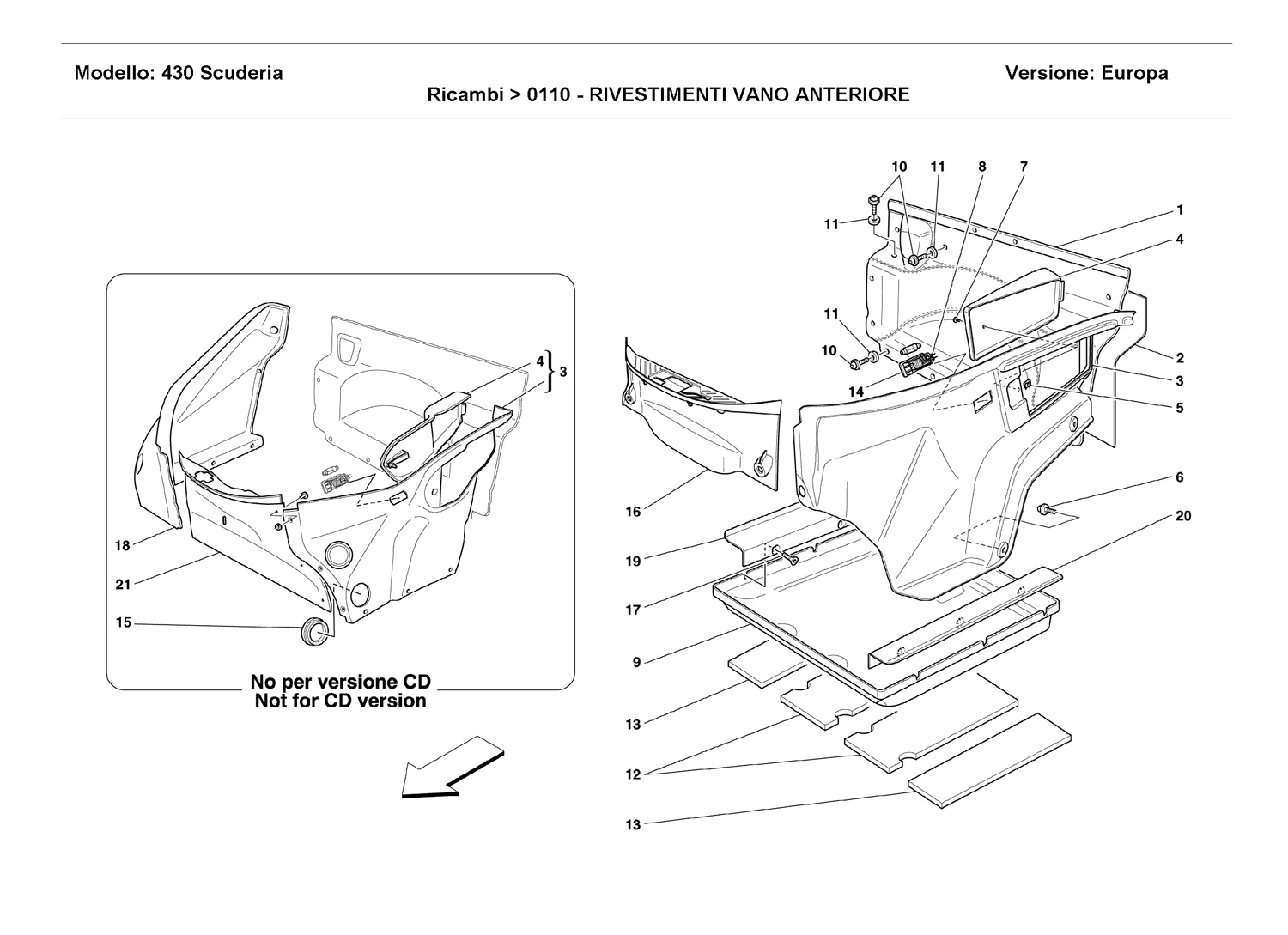

FRONT COMPARTMENT TRIMS

Go to Split View

FRONT COMPARTMENT TRIMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 80662100 *Qty: 1 TRUNK HOOD MOBILE REAR WALL
-Standard-
$1,168.58
Location: 1 Prev | Next Part: 80699400 *Qty: 1 TRUNK HOOD MOBILE REAR WALL
-Optional-
-Spare wheel-
$1,677.93
Location: 2 Prev | Next Part: 68647100 *Qty: 1 TER PROTECTION CLOTH $55.61
Location: 3 Prev | Next Part: 80751700 *Qty: 1 L.H. SIDE SHIELD $222.45
Location: 3 Prev | Next Part: 81012600 *Qty: 1 L.H. SIDE SHIELD
-Valid for not CD version-
Call
Location: 4 Prev | Next Part: 80751600 *Qty: 1 FUSES INSPECTION DOOR Call
Location: 4 Prev | Next Part: 68511300 *Qty: 1 FUSES INSPECTION DOOR
-Valid for not CD version-
$359.01
Location: 5 Prev | Next Part: 80751900 *Qty: 1 FIXINGCLIP Call
Location: 6 Prev | Next Part: 65970400 *Qty: 4 SCREW $2.62
Location: 7 Prev | Next Part: 80751800 *Qty: 1 PIN Call
Location: 8 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $14.27
Location: 9 Prev | Next Part: 69842300 *Qty: 1 ER STEP Call
Location: 10 Prev | Next Part: 66091000 *Qty: 11 SCREW
-L=25mm-
$3.26
Location: 10 Prev | Next Part: 65933500 *Qty: 10 SCREW
-L=15mm-
$1.90
Location: 11 Prev | Next Part: 65841100 *Qty: 11 WASHER $1.22
Location: 12 Prev | Next Part: 68510900 *Qty: 2 CENTRAL INSULATION $22.97
Location: 13 Prev | Next Part: 68511000 *Qty: 2 LATERAL INSULATION $41.67
Location: 14 Prev | Next Part: 10863090 *Qty: 1 12V-5W BULB $8.70
Location: 15 Prev | Next Part: 63965800 *Qty: 4 PLUG $6.33
Location: 16 Prev | Next Part: 80599900 *Qty: 1 PLATE $97.06
Location: 17 Prev | Next Part: 69193000 *Qty: 6 SCREW $0.90
Location: 18 Prev | Next Part: 81012400 *Qty: 1 R.H. SIDE SHIELD
-Valid for not CD version-
$760.77
Location: 19 Prev | Next Part: 80872700 *Qty: 1 R.H. ANGLE PIECE Call
Location: 20 Prev | Next Part: 80872800 *Qty: 1 L.H. ANGLE PIECE $83.72
Location: 21 Prev | Next Part: 81014300 *Qty: 1 FRONT CENTRAL LINING
-Valid for not cd version-
$819.61

* Quantity shown indicates the number of pieces used in the diagram.
