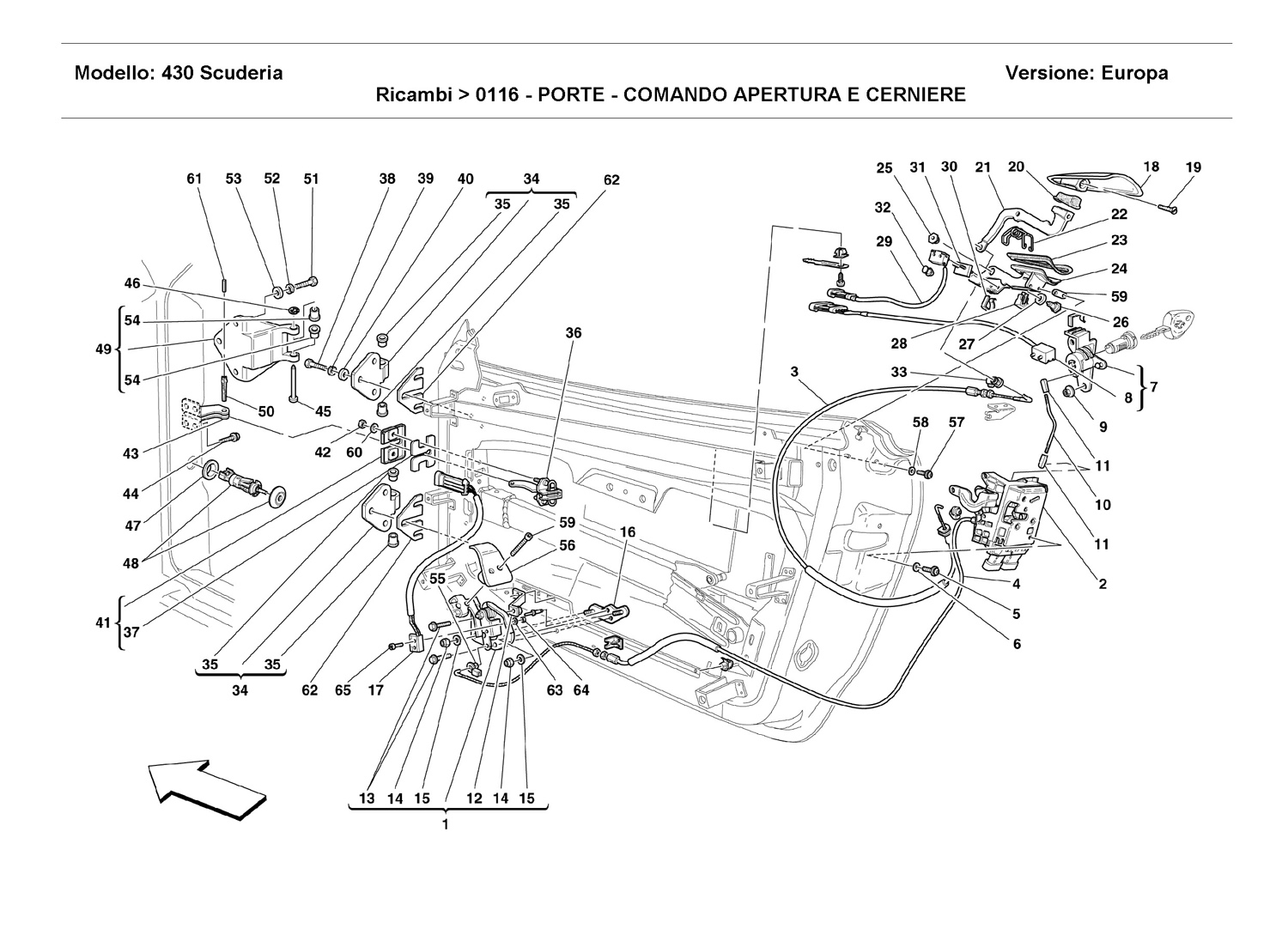

DOORS - OPENING CONTROL AND HINGES

Location Part # Quantity* Description Price Add To Cart
1 80360000 1 R.H. INNER HANDLE FOR DOOR OPENING $862.73
1 80360100 1 L.H. INNER HANDLE FOR DOOR OPENING $732.26
2 68993100 1 RIGHT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $345.08
2 80355200 1 R.H. DOOR LOCK Unavailable
2 68993200 1 LEFT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $345.08
3 68602600 1 DOOR OPENING OUTER CABLE Unavailable
4 68883400 2 DOOR OPENING INNER CABLE Unavailable
5 62940900 6 SCREW $1.81
6 13550277 6 WASHER Unavailable
7 65839400 1 R.H. DOOR LOCK BLOCK $345.08
7 65839500 1 L.H. DOOR LOCK BLOCK $345.08
8 63859200 1 R.H. MICRO-SWITCH $310.57
8 63859200 1 L.H. MICRO-SWITCH $310.57
9 13046011 4 NUT Unavailable
10 65836500 2 SAFETY TIE ROD $115.59
11 62794000 4 FLEXIBLE JOINT $81.18
12 67743000 1 R.H. BRACKET Unavailable
12 67743100 1 L.H. BRACKET Unavailable
13 13027024 2 SCREW Unavailable
14 102741 4 NUT $0.90
15 10519424 4 WASHER Unavailable
16 67744000 1 R.H. BRACKET Unavailable
16 67744100 1 L.H. BRACKET Unavailable
17 171120 2 MICRO-SWITCH $172.53
18 63576010 1 R.H. OUTER DOOR HANDLE $241.55
18 63576110 1 L.H. OUTER DOOR HANDLE $241.55
19 13309277 2 SCREW Unavailable
20 64861100 1 R.H. INNER GASKET $21.09
20 64861200 1 L.H. INNER GASKET $21.09
21 64860600 2 LEVER $125.94
22 64860700 2 SPRING FOR HANDLE $29.31
23 64860900 1 R.H. HANDLE GASKET Unavailable
23 64861000 1 L.H. HANDLE GASKET Unavailable
24 64860410 1 R.H. HANDLE SEAT $105.24
24 64860510 1 L.H. HANDLE SEAT $105.24
25 65398700 2 BUSHING $58.65
26 64860800 2 PIN $172.08
27 65520700 4 WASHER Unavailable
28 65398600 2 GUIDE $24.14
29 178187 2 MICRO-SWITCH $86.25
30 63179900 2 FIXING CLIP $5.62
31 65806300 2 PLATE $63.05
32 63853400 2 RUBBER PAD $5.16
33 14578180 2 CLIP Superseded
34 64803300 4 MOBILE HINGE $276.06
35 62825300 8 BUSHING $39.67
36 65195200 2 TIE ROD Unavailable
37 63892300 2 GASKET $5.16
38 16043934 12 SCREW $0.90
39 10571779 12 WASHER Unavailable
40 14496578 12 WASHER Superseded
41 63895200 1 R.H. PLATE $32.76
41 63895300 1 L.H. PLATE Unavailable
42 102741 4 NUT $0.90
43 67111800 2 BRACKET $293.31
44 13836971 8 SCREW Unavailable
45 64803400 4 PIN $77.63
46 11087974 4 FLEXIBLE RING $0.90
47 68917600 2 ITCH PLATE $31.04
48 179697 2 PILLAR SWITCH Unavailable
49 64803200 4 FIXED HINGE $165.63
50 66842800 2 PIN $4.30
51 16043534 12 SCREW Unavailable
52 10571779 12 WASHER Unavailable
53 13550405 12 WASHER Unavailable
54 62825300 8 BUSHING $39.67
55 65700900 2 FIXING CLIP $1.04
56 80681000 1 R.H. INNER HANDLE FOR DOOR OPENING $776.45
56 80681200 1 L.H. INNER HANDLE FOR DOOR OPENING $648.22
57 169814 2 SCREW $1.81
58 166467 2 WASHER Unavailable
59 67660400 4 SCREW $108.08
60 12644424 4 WASHER Unavailable
61 14163874 2 FLEXIBLE PIN $1.20
62 65998600 4 THICKNESS $7.23
63 63693700 2 WASHER Unavailable
64 63693800 2 NUT $1.20
65 63992900 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
