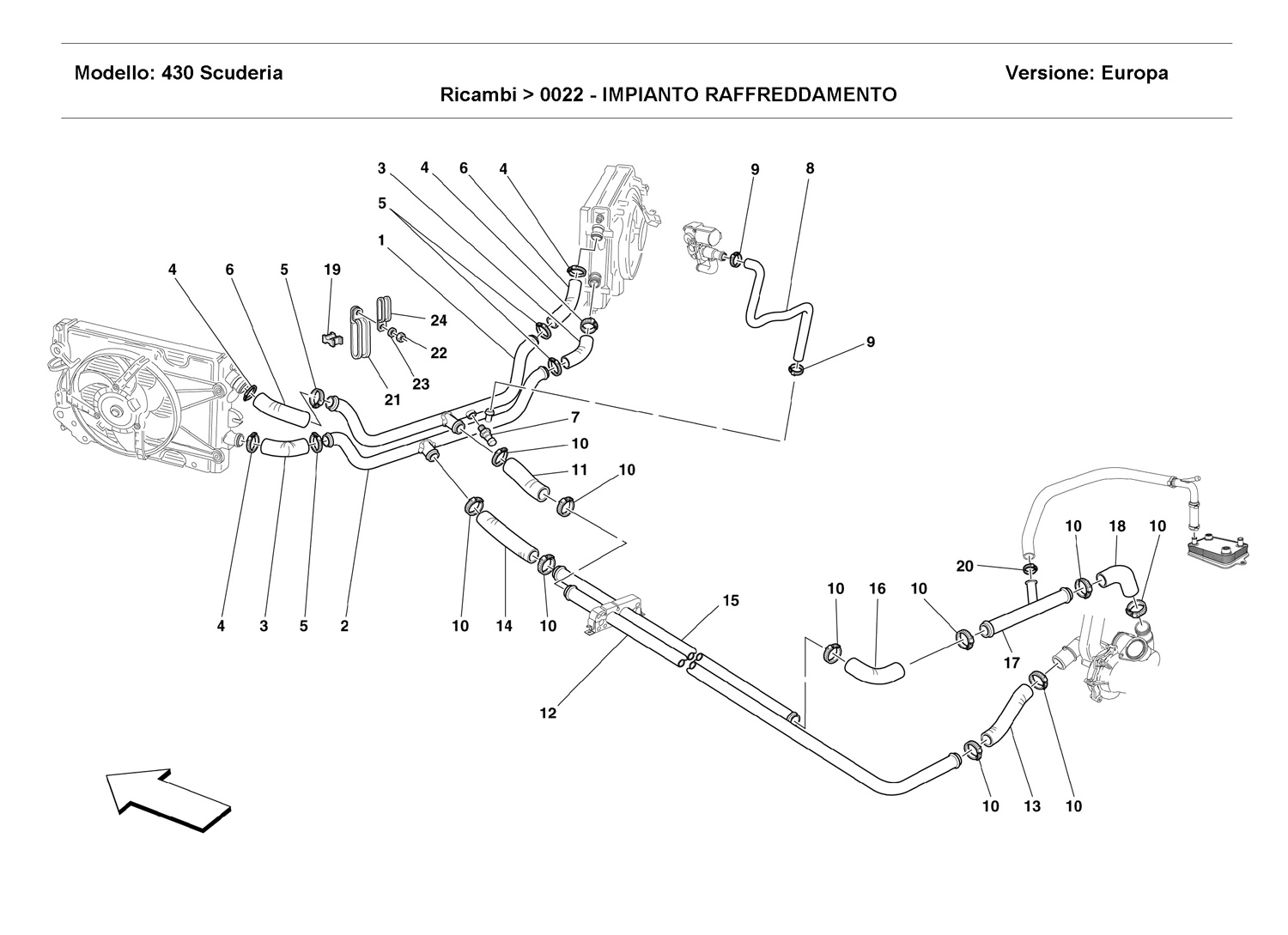

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 217917 *Qty: 1 DELIVERY WATER PIPE $198.61
Location: 2 Prev | Next Part: 216373 *Qty: 1 RETURN WATER PIPE $99.48
Location: 3 Prev | Next Part: 238691 *Qty: 2 RUBBER HOSE $62.79
Location: 4 Prev | Next Part: 13001690 *Qty: 4 SCREW COLLAR $1.61
Location: 5 Prev | Next Part: 168220 *Qty: 4 SCREW COLLAR $1.86
Location: 6 Prev | Next Part: 238695 *Qty: 2 RUBBER HOSE $65.97
Location: 7 Prev | Next Part: 176322 *Qty: 1 TEMPERATURE SWITCH $85.00
Location: 8 Prev | Next Part: 65231800 *Qty: 1 HOSE FROM TGK VALVE TO RETURN PIPE $36.75
Location: 9 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 13001690 *Qty: 10 SCREW COLLAR $1.61
Location: 11 Prev | Next Part: 202547 *Qty: 1 DELIVERY RUBBER HOSE $146.17
Location: 12 Prev | Next Part: 206621 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE $63.02
Location: 13 Prev | Next Part: 208338 *Qty: 1 RUBBER HOSE $94.25
Location: 14 Prev | Next Part: 202548 *Qty: 1 RETURN RUBBER HOSE $198.28
Location: 15 Prev | Next Part: 206728 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE $63.02
Location: 16 Prev | Next Part: 193463 *Qty: 1 RETURN RUBBER HOSE $169.69
Location: 17 Prev | Next Part: 209686 *Qty: 1 ALUMINIUM TUBE
-Not as spare part-
-Replaced by 241611-
$48.06
Location: 17 Prev | Next Part: 241611 *Qty: 1 ALUMINIUMTUBE $79.29
Location: 18 Prev | Next Part: 206717 *Qty: 1 RUBBER HOSE $71.19
Location: 19 Prev | Next Part: 183641 *Qty: 2 SPACER $4.52
Location: 20 Prev | Next Part: 214250 *Qty: 1 CLAMP Unavailable
Location: 21 Prev | Next Part: 183642 *Qty: 2 BRACKET WITH SHEATH $23.87
Location: 22 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 10730114 *Qty: 2 WASHER Unavailable
Location: 24 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $1.92

* Quantity shown indicates the number of pieces used in the diagram.
