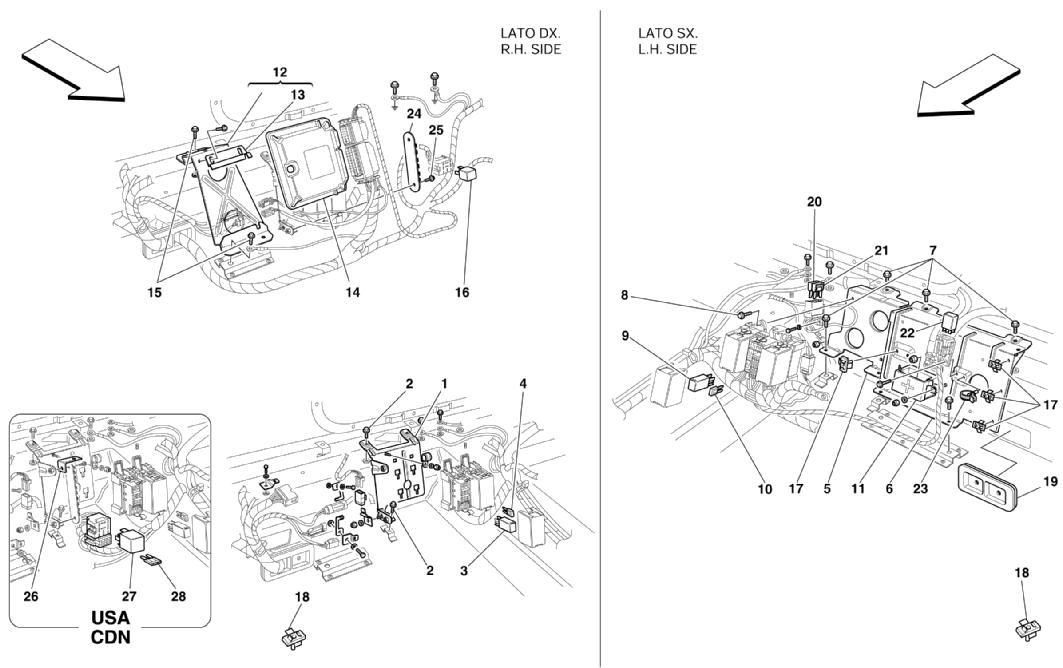

REAR PASSENGERS COMPARTMENT CONTROL STATIONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65312600 *Qty: 1 R.H. SIDE BRACKET FOR CONTROL UNIT FIXING $35.15
Location: 2 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 172882 *Qty: 1 MICRO-RELAY 30 A. $29.64
Location: 3 Prev | Next Part: 161590 *Qty: 3 MICRO-RELAY 20 A. $22.22
Location: 4 Prev | Next Part: 172879 *Qty: 1 FUSE 20 A. $8.53
Location: 4 Prev | Next Part: 172881 *Qty: 2 FUSE 30 A. $10.46
Location: 4 Prev | Next Part: 172877 *Qty: 5 FUSE 10 A. $7.26
Location: 4 Prev | Next Part: 172875 *Qty: 1 FUSE 5 A. $10.30
Location: 4 Prev | Next Part: 172878 *Qty: 1 FUSE 15 A. $7.26
Location: 4 Prev | Next Part: 172876 *Qty: 2 FUSE 7,5 A. $8.56
Location: 5 Prev | Next Part: 65312800 *Qty: 1 L.H. SIDE BRACKET FOR CONTROL UNIT FIXING $15.27
Location: 6 Prev | Next Part: 66765200 *Qty: 1 L.H. SIDE BRACKET FOR TERMINAL BOX FIXING $72.85
Location: 7 Prev | Next Part: 16286024 *Qty: 7 SCREW $0.90
Location: 8 Prev | Next Part: 16286024 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 161591 *Qty: 1 MICRO-RELAY 20/10 A. $33.13
Location: 9 Prev | Next Part: 161590 *Qty: 5 MICRO-RELAY 20 A. $22.22
Location: 9 Prev | Next Part: 172882 *Qty: 2 MICRO-RELAY 30 A. $29.64
Location: 10 Prev | Next Part: 172880 *Qty: 1 FUSE 25 A. $8.56
Location: 10 Prev | Next Part: 172881 *Qty: 5 FUSE 30 A. $10.46
Location: 10 Prev | Next Part: 172877 *Qty: 5 FUSE 10 A. $7.26
Location: 10 Prev | Next Part: 172878 *Qty: 5 FUSE 15 A. $7.26
Location: 10 Prev | Next Part: 172875 *Qty: 2 FUSE 5 A. $10.30
Location: 10 Prev | Next Part: 172876 *Qty: 4 FUSE 7,5 A. $8.56
Location: 11 Prev | Next Part: 170114 *Qty: 1 COMPLETE TERMINAL BOX $48.31
Location: 12 Prev | Next Part: 65692900 *Qty: 1 COMPLETE R.H. SIDE BRACKET FOR F1 CONTROL UNIT FIXING $25.99
Location: 13 Prev | Next Part: 65668900 *Qty: 1 BRACKET $300.48
Location: 14 Prev | Next Part: 196986 *Qty: 1 F1 GEAR-BOX ELECTRONIC CONTROL STATION Call
Location: 15 Prev | Next Part: 16286024 *Qty: 3 SCREW $0.90
Location: 16 Prev | Next Part: 233100 *Qty: 1 RELAY -Valid for F1 $39.95
Location: 16 Prev | Next Part: 155437A *Qty: 1 RELAY (ALT 40AMP) $8.00
Location: 16 Prev | Next Part: 155437 *Qty: 1 RELAY -Valid for F1 -Not as spare part -Replaced by 194909 $68.30
Location: 17 Prev | Next Part: 170301 *Qty: 4 PLASTIC CLIP $0.90
Location: 18 Prev | Next Part: 188739 *Qty: 11 CLIP -Plastic $0.90
Location: 19 Prev | Next Part: 168847 *Qty: 2 INNER COMPARTMENT CABLE BUSHING $12.03
Location: 20 Prev | Next Part: 170093 *Qty: 1 FUSE 30 A. $12.21
Location: 21 Prev | Next Part: 169438 *Qty: 1 FUSE 20 A. $6.76
Location: 22 Prev | Next Part: 172882 *Qty: 1 MICRO-RELAY 30 A. $29.64
Location: 23 Prev | Next Part: 157386 *Qty: 1 CLIP $0.90
Location: 24 Prev | Next Part: 168438 *Qty: 1 SUPPORT $44.81
Location: 25 Prev | Next Part: 16285924 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 195710 *Qty: 1 BRACKET -Valid for USA and CDN Call
Location: 27 Prev | Next Part: 177761 *Qty: 1 RELAY FOR AIR PUMP -Valid for USA and CDN $52.66
Location: 28 Prev | Next Part: 170061 *Qty: 1 FUSE 50 A. -Valid for USA and CDN $4.95

* Quantity shown indicates the number of pieces used in the diagram.
