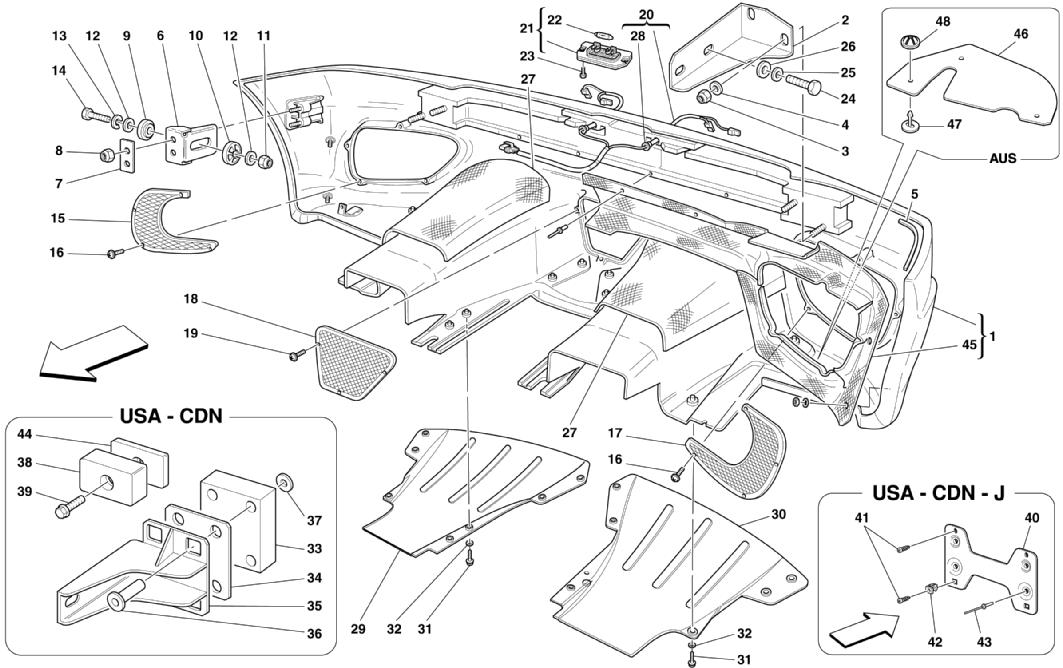

REAR BUMPER

Go to Split View

REAR BUMPER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67360810 *Qty: 1 COMPLETE REAR BUMPER -Not for USA and CDN Call
Location: 1 Prev | Next Part: 67779510 *Qty: 1 COMPLETE REAR BUMPER -Valid for USA and CDN $4,885.70
Location: 2 Prev | Next Part: 65306500 *Qty: 1 R.H. CENTRAL BRACKET -Not for USA and CDN $63.57
Location: 2 Prev | Next Part: 65306600 *Qty: 1 L.H. CENTRAL BRACKET -Not for USA and CDN $63.57
Location: 3 Prev | Next Part: 12574521 *Qty: 4 NUT $0.90
Location: 4 Prev | Next Part: 12646801 *Qty: 8 WASHER $1.45
Location: 5 Prev | Next Part: 65856200 *Qty: 2 RUBBER PROFILE $24.57
Location: 6 Prev | Next Part: 62973000 *Qty: 2 SIDE BRACKET $27.42
Location: 7 Prev | Next Part: 62126600 *Qty: 2 PLATE $1.92
Location: 8 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 9 Prev | Next Part: 62128200 *Qty: 2 EXTERNAL SMALL BLOCK $1.98
Location: 10 Prev | Next Part: 62128300 *Qty: 2 INTERNAL SMALL BLOCK $1.25
Location: 11 Prev | Next Part: 12574521 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 12646801 *Qty: 4 WASHER $1.45
Location: 13 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 11307021 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 67416300 *Qty: 1 R.H. GRILL $138.79
Location: 16 Prev | Next Part: 16084201 *Qty: 8 SCREW $1.83
Location: 17 Prev | Next Part: 67416400 *Qty: 1 L.H. GRILL $138.79
Location: 18 Prev | Next Part: 67416200 *Qty: 1 CENTER GRILLE $281.50
Location: 19 Prev | Next Part: 16084201 *Qty: 3 SCREW $1.83
Location: 20 Prev | Next Part: 182985 *Qty: 1 CABLES FOR NUMBER PLATE LIGHTS $219.98
Location: 21 Prev | Next Part: 186180 *Qty: 2 NUMBER PLATE LIGHT $14.26
Location: 22 Prev | Next Part: 10857790 *Qty: 2 BULB $2.03
Location: 23 Prev | Next Part: 15644175 *Qty: 4 SCREW $0.90
Location: 24 Prev | Next Part: 15540421 *Qty: 4 SCREW $3.82
Location: 25 Prev | Next Part: 11190779 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 12646901 *Qty: 4 WASHER Superseded
Location: 27 Prev | Next Part: 65942000 *Qty: 2 INSULATION $220.43
Location: 28 Prev | Next Part: 10399280 *Qty: 2 CABLE GROMMET $1.74
Location: 29 Prev | Next Part: 67361400 *Qty: 1 R.H. EXTRACTOR $1,487.23
Location: 30 Prev | Next Part: 67361500 *Qty: 1 L.H. EXTRACTOR $1,487.23
Location: 31 Prev | Next Part: 65377400 *Qty: 14 SCREW Superseded
Location: 32 Prev | Next Part: 12644478 *Qty: 14 WASHER $0.90
Location: 33 Prev | Next Part: 63214100 *Qty: 2 ABSORPTION PAD -Valid for USA and CDN $42.95
Location: 34 Prev | Next Part: 63738800 *Qty: 2 PLATE -Valid for USA and CDN $4.29
Location: 35 Prev | Next Part: 65155200 *Qty: 2 CENTRAL BRACKET -Valid for USA and CDN $46.50
Location: 36 Prev | Next Part: 65372900 *Qty: 8 BUSHING -Valid for USA and CDN $6.41
Location: 37 Prev | Next Part: 13550405 *Qty: 8 WASHER -Valid for USA and CDN $0.90
Location: 38 Prev | Next Part: 65537700 *Qty: 2 ABSORPTION PAD -Valid for USA and CDN $33.53
Location: 39 Prev | Next Part: 13839224 *Qty: 2 SCREW -Valid for USA and CDN $4.05
Location: 40 Prev | Next Part: 65887600 *Qty: 1 REAR PLATE FRAME -Valid for J $19.69
Location: 40 Prev | Next Part: 65886300 *Qty: 1 REAR PLATE FRAME -Valid for USA and CDN $80.99
Location: 41 Prev | Next Part: 16084370 *Qty: 4 SCREW -Valid for USA and CDN $1.51
Location: 42 Prev | Next Part: 14201980 *Qty: 2 BLOCK -Valid for USA and CDN $0.90
Location: 43 Prev | Next Part: 14296191 *Qty: 4 RIVET -Valid for J $0.90
Location: 43 Prev | Next Part: 14295696 *Qty: 4 RIVET -Valid for USA and CDN $0.90
Location: 44 Prev | Next Part: 65537800 *Qty: 2 SPACER FOR WICK -Valid for USA and CDN $2.68
Location: 45 Prev | Next Part: 67973500 *Qty: 1 L.H. HEAT SHIELD -Not for USA and CDN $234.98
Location: 45 Prev | Next Part: 67973400 *Qty: 1 HEAT SHIELD R.H. -Valid for USA and CDN $234.98
Location: 45 Prev | Next Part: 67973300 *Qty: 1 R.H. HEAT SHIELD -Not for USA and CDN $234.98
Location: 45 Prev | Next Part: 67973600 *Qty: 1 HEAT SHIELD L.H. -Valid for USA and CDN $234.98
Location: 46 Prev | Next Part: 68457000 *Qty: 1 L.H. INSULATION FOR REAR BUMPER -Valid from Nr.53911 for AUS $233.62
Location: 46 Prev | Next Part: 68456900 *Qty: 1 R.H. INSULATION FOR REAR BUMPER -Valid from Nr.53911 for AUS $275.33
Location: 47 Prev | Next Part: 68484300 *Qty: 6 BUTTON -Valid from Nr.53911 for AUS $4.31
Location: 48 Prev | Next Part: 68484400 *Qty: 6 FIXING CLIP -Valid from Nr.53911 for AUS Call

* Quantity shown indicates the number of pieces used in the diagram.
