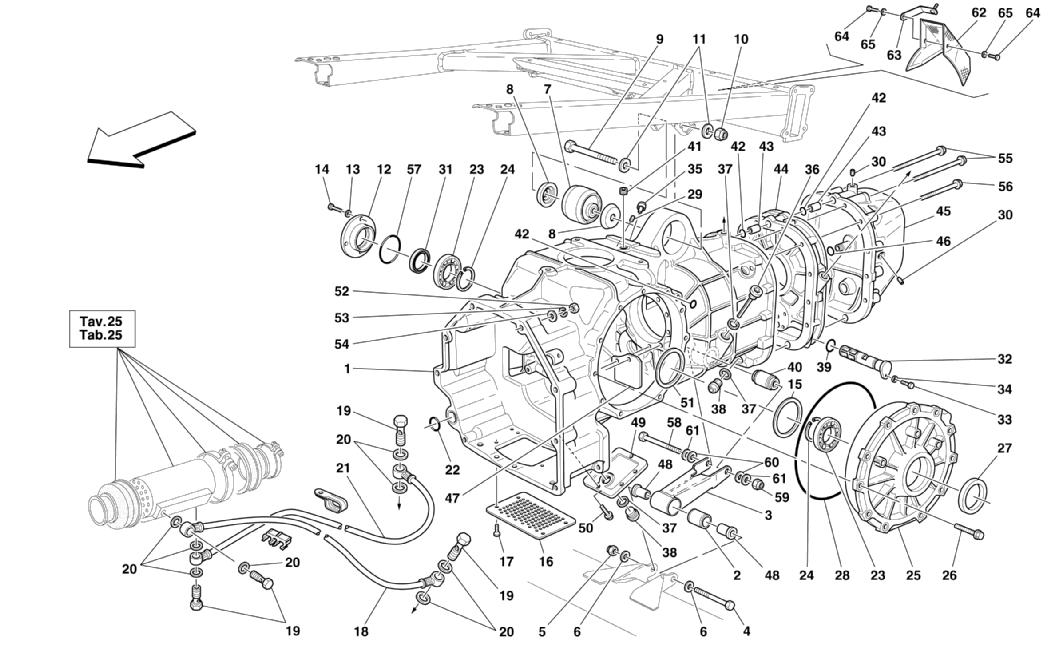

GEARBOX - COVERS

Go to Split View

GEARBOX - COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 186248 *Qty: 1 BOX TRANSMISSION $2,792.72
Location: 1 Prev | Next Part: 194432 *Qty: 1 COMPLETE TRANSMISSION Unavailable
Location: 2 Prev | Next Part: 181755 *Qty: 1 PAD $90.45
Location: 3 Prev | Next Part: 174458 *Qty: 1 SMALL LINK $290.62
Location: 4 Prev | Next Part: 15541234 *Qty: 1 SCREW $1.54
Location: 5 Prev | Next Part: 148020 *Qty: 1 NUT $4.84
Location: 6 Prev | Next Part: 14496724 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 186698 *Qty: 1 GEARBOX SUPPORT PAD Superseded
Location: 8 Prev | Next Part: 188141 *Qty: 2 RETAINING WASHER $23.20
Location: 9 Prev | Next Part: 11117134 *Qty: 1 SCREW $6.04
Location: 10 Prev | Next Part: 106004 *Qty: 1 NUT $1.43
Location: 11 Prev | Next Part: 14496824 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 183981 *Qty: 1 R.H. FLANGE FOR SHAFT $152.09
Location: 13 Prev | Next Part: 11194377 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 185028 *Qty: 1 RING -Thickness mm. 6,0 -Possible fitting $57.38
Location: 15 Prev | Next Part: 185027 *Qty: 1 RING -Thickness mm. 6,4 -Possible fitting $57.38
Location: 15 Prev | Next Part: 185026 *Qty: 1 RING -Thickness mm. 6,8 $49.72
Location: 16 Prev | Next Part: 171701 *Qty: 1 PROTECTION DRILLET PLATE $133.99
Location: 17 Prev | Next Part: 111189 *Qty: 4 SCREW $5.66
Location: 18 Prev | Next Part: 173686 *Qty: 1 OIL DELIVERY TUBE $317.41
Location: 19 Prev | Next Part: 184727 *Qty: 4 UNION $6.06
Location: 20 Prev | Next Part: 145192 *Qty: 8 GASKET $8.60
Location: 21 Prev | Next Part: 173687 *Qty: 1 OIL RETURN TUBE $324.26
Location: 22 Prev | Next Part: 123236 *Qty: 1 O.R. GASKET $4.28
Location: 23 Prev | Next Part: 184995 *Qty: 2 BALL BEARING $72.82
Location: 24 Prev | Next Part: 184994 *Qty: 2 FLEXIBLE RING $2.88
Location: 25 Prev | Next Part: 171117 *Qty: 1 DIFFERENTIAL COVER $1,806.50
Location: 26 Prev | Next Part: 16287321 *Qty: 11 SCREW $0.90
Location: 27 Prev | Next Part: 181617 *Qty: 1 L.H. OIL RING $44.45
Location: 28 Prev | Next Part: 14468781 *Qty: 1 GASKET $36.07
Location: 29 Prev | Next Part: 10268350 *Qty: 1 THREADED PLUG $7.90
Location: 30 Prev | Next Part: 182106 *Qty: 2 THREADED PLUG $2.07
Location: 31 Prev | Next Part: 181618 *Qty: 1 R.H. OIL RING $49.38
Location: 32 Prev | Next Part: 182100 *Qty: 1 GEAR BOX OIL FILTER $125.10
Location: 33 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 11199277 *Qty: 1 WASHER $0.90
Location: 35 Prev | Next Part: 182118 *Qty: 1 OIL VENT $11.62
Location: 36 Prev | Next Part: 182117 *Qty: 1 OIL LEVEL ROD $59.87
Location: 37 Prev | Next Part: 10263460 *Qty: 3 GASKET Superseded
Location: 38 Prev | Next Part: 183962 *Qty: 2 PLUG $20.42
Location: 39 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $2.59
Location: 40 Prev | Next Part: 183490 *Qty: 1 PAD $126.27
Location: 41 Prev | Next Part: 14324911 *Qty: 1 PLUG $0.99
Location: 42 Prev | Next Part: 14456981 *Qty: 4 GASKET $1.07
Location: 43 Prev | Next Part: 150957 *Qty: 4 CENTERING BUSHING $9.41
Location: 44 Prev | Next Part: 173611 *Qty: 1 PLATE $1,278.94
Location: 45 Prev | Next Part: 173612 *Qty: 1 REAR COVER $1,503.81
Location: 46 Prev | Next Part: 137192 *Qty: 2 GASKET $0.90
Location: 47 Prev | Next Part: 183986 *Qty: 1 PLATE $4.11
Location: 48 Prev | Next Part: 183457 *Qty: 2 BUSHING $3.32
Location: 49 Prev | Next Part: 171045 *Qty: 1 LOWER COVER $145.50
Location: 50 Prev | Next Part: 16286121 *Qty: 6 SCREW $0.90
Location: 51 Prev | Next Part: 185034 *Qty: 1 RING -Thickness mm. 2,60 -Possible fitting $45.89
Location: 51 Prev | Next Part: 185029 *Qty: 1 RING -Thickness mm. 3,30 $45.89
Location: 51 Prev | Next Part: 185033 *Qty: 1 RING -Thickness mm. 2,95 -Possible fitting $45.89
Location: 52 Prev | Next Part: 133988 *Qty: 6 NUT $0.90
Location: 53 Prev | Next Part: 127497 *Qty: 6 WASHER $0.90
Location: 54 Prev | Next Part: 14496624 *Qty: 6 WASHER $0.90
Location: 55 Prev | Next Part: 16297424 *Qty: 2 SCREW $5.76
Location: 55 Prev | Next Part: 184008 *Qty: 2 SCREW -Not as spare part -Replaced by 16297424 Unavailable
Location: 56 Prev | Next Part: 16288221 *Qty: 10 SCREW $2.76
Location: 57 Prev | Next Part: 14460981 *Qty: 1 O.R. GASKET $11.65
Location: 58 Prev | Next Part: 15213834 *Qty: 1 SCREW $1.46
Location: 59 Prev | Next Part: 104030 *Qty: 1 NUT $0.90
Location: 60 Prev | Next Part: 125322 *Qty: 2 WASHER $0.90
Location: 61 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 62 Prev | Next Part: 67912300 *Qty: 1 FRONT SHIELD $177.97
Location: 63 Prev | Next Part: 67912400 *Qty: 1 SUPPORT BRACKET Unavailable
Location: 64 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 65 Prev | Next Part: 14446924 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
