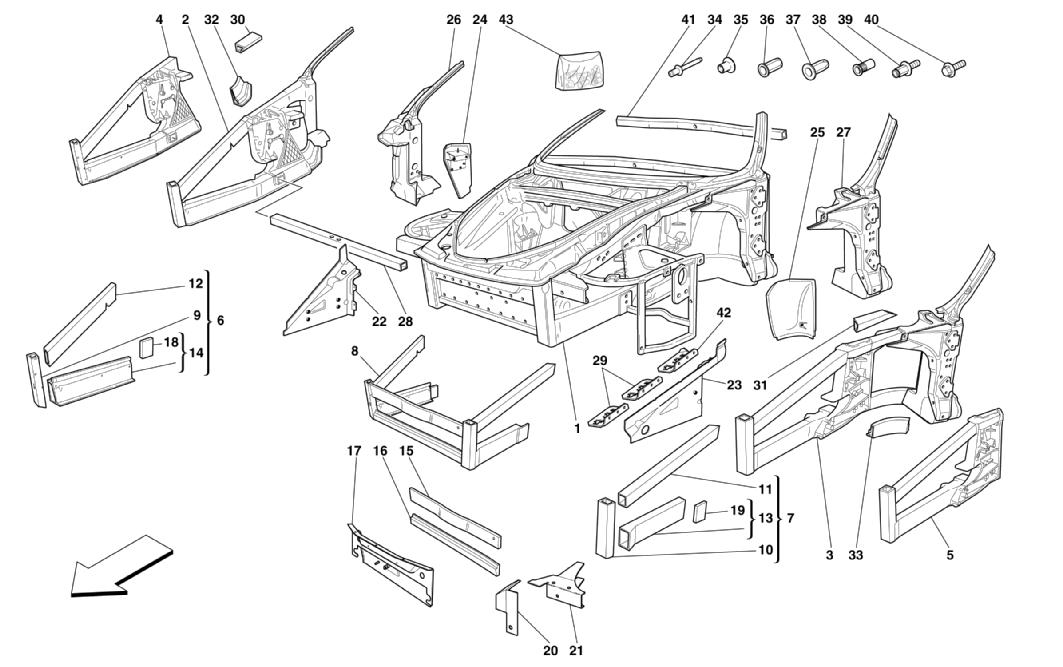

FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

Location Part # Quantity* Description Price Add To Cart
1 68151900 1 COMPLETE FRONT FRAME -Valid for USA and CDN Unavailable
1 68151700 1 COMPLETE FRONT FRAME -Valid for RHD Unavailable
1 67606700 1 COMPLETE FRONT FRAME -Not for USA,CDN and RHD $5,387.41
2 67386700 1 COMPLETE R.H. FRONT SIDE FRAME -Not for RHD $6,641.45
2 67410300 1 COMPLETE R.H. FRONT SIDE FRAME -Valid for RHD $6,641.45
3 67410700 1 COMPLETE L.H. FRONT SIDE FRAME -Valid for RHD $6,641.45
3 67410600 1 COMPLETE L.H. FRONT SIDE FRAME -Not for RHD Unavailable
4 66452600 1 R.H. FRONT LATERAL SPRAG $5,432.26
5 66452800 1 L.H. FRONT LATERAL SPRAG -Not for RHD $5,432.26
5 67040200 1 L.H. FRONT LATERAL SPRAG -Valid for RHD $12,750.00
6 65940300 1 COMPLETE R.H. FRONT LATERAL FRAME Unavailable
7 65940400 1 COMPLETE L.H. FRONT LATERAL FRAME Unavailable
8 65940200 1 COMPLETE FRONT FRAME $3,953.52
9 166202 1 R.H. FRONT BUMPER PILLAR $1,173.32
10 166102 1 L.H. FRONT BUMPER PILLAR $1,173.32
11 166105 1 L.H. FRONT UPPER FRAME $448.61
12 166205 1 R.H. FRONT UPPER FRAME $174.50
13 177481 1 L.H. FRONT CRUSH-BOX $1,087.04
14 177482 1 R.H. FRONT CRUSH-BOX $1,087.04
15 166301 1 FRONT UPPER CROSS MEMBER $1,018.02
16 183816 1 FRONT LOWER CROSS MEMBER $949.21
17 65393500 1 TRUNK COMPARTMENT FRONT WALL Unavailable
18 166291 1 R.H. FRONT REINFORCEMENT $15.73
19 166191 1 L.H. FRONT REINFORCEMENT $24.14
20 66395411 1 L.H. BRACKET Unavailable
20 66395511 1 R.H. BRACKET Unavailable
21 166170 1 L.H. BRAKET FOR FRONT BUMPER FIXING $89.71
21 166270 1 R.H. BRAKET FOR FRONT BUMPER FIXING $81.08
22 65152700 1 R.H. FRONT SIDE WALL $405.98
23 67958800 1 L.H. FRONT SIDE WALL $485.54
24 175738 1 R.H. PLATE -Not for RHD $259.82
24 179433 1 R.H. PLATE -Valid for RHD $259.82
25 175737 1 L.H. PLATE -Not for RHD $259.82
25 179432 1 L.H. PLATE -Valid for RHD $259.82
26 67385900 1 COMPLETE R.H. DOOR PILLAR $2,156.39
27 67385800 1 COMPLETE L.H. DOOR PILLAR $2,156.39
28 203125 1 CROSS MEMBER $198.96
29 65013100 2 BRACKET FOR CONTROL UNITS FIXING $146.55
30 166207 1 R.H. UPPER FRAME $91.43
31 166107 1 L.H. UPPER FRAME $93.16
32 166215 1 R.H. LOWER FRAME Unavailable
33 166115 1 L.H. LOWER FRAME $91.70
34 66292300 0 HALF REPOTTED HEAD RIVET $2.58
34 66292200 0 STANDARD HEAD RIVET $1.46
35 65133800 0 RIVET L. 6,4 mm Unavailable
36 15624211 0 ESAGONAL RIVET M4 $1.28
36 15624411 0 ESAGONAL RIVET M6 $1.32
36 15180411 0 BLIND ESAGONAL RIVET $2.27
36 15624311 0 ESAGONAL RIVET M5 $5.93
36 15624511 0 ESAGONAL RIVET M8 Superseded
37 65151200 0 RIVET M6 Unavailable
38 65135000 0 RIVET M8 Unavailable
38 65319800 0 RIVET M8 BLIND Unavailable
38 166101 0 RIVET M4 $1.97
38 65930400 0 RIVET M6 $1.28
38 179299 0 RIVET M10 BLIND $10.33
39 65065400 0 STUD ESAGONAL HEAD M6 $4.41
40 13836971 0 SCREW Unavailable
41 181310 1 UNDER WINDSCREEN CROSS MEMBER -Valid for RHD Unavailable
41 206673 1 UNDER WINDSCREEN CROSS MEMBER -Valid for USA and CDN Unavailable
41 166310 1 UNDER WINDSCREEN CROSS MEMBER -Not for USA, CDN and RHD $364.85
42 67794200 1 BRACKET FOR CONTROL UNITS FIXING $62.10
43 70000950 1 INSERTS KIT FOR REPAIR $1,920.46

* Quantity shown indicates the number of pieces used in the diagram.
