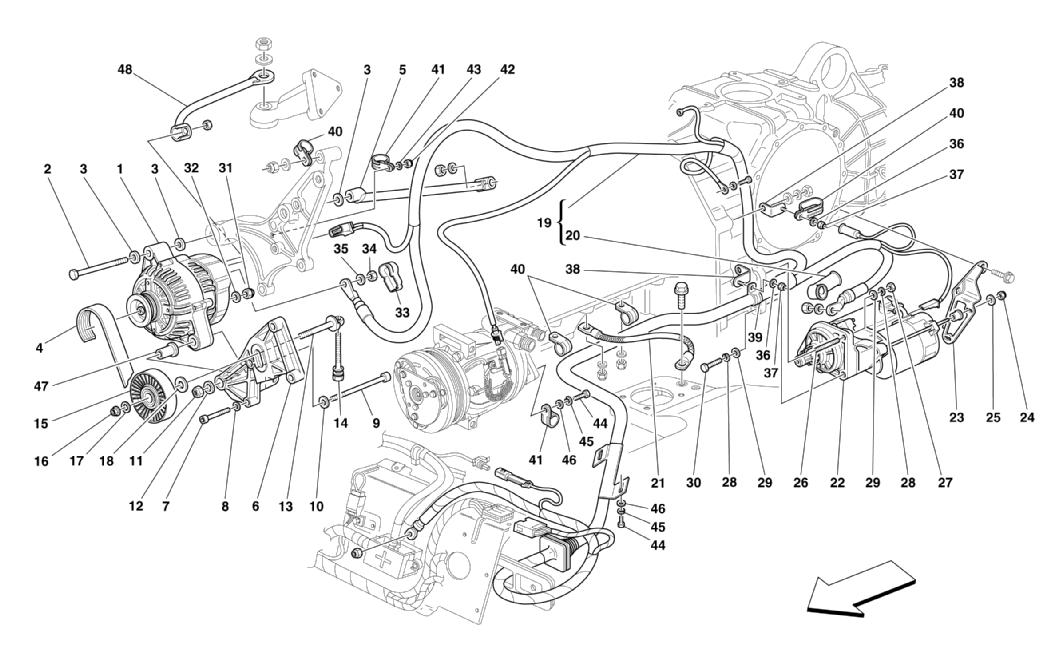

CURRENT GENERATOR - STARTING MOTOR

Location	Part #	Quantity*	Description	Price	Add To Cart
1	179852	1	150 A. ALTERNATOR	$1,023.10
2	15971321	1	SCREW	$16.48
3	13550421	3	WASHER		Unavailable
4	201446	1	WATER PUMP AND GENERATOR CONTROL BELT	$43.83
5	180493	1	REAR BRACKET	$111.63
6	179704	1	LOWER SUPPORT		Unavailable
7	14306524	1	SCREW L=30mm		Unavailable
7	14306724	2	SCREW L=40mm		Unavailable
8	12601374	3	WASHER	$0.90
9	179664	1	SCREW		Unavailable
10	164469	1	WASHER		Unavailable
11	177764	1	NUT		Unavailable
12	126648	1	WASHER	$2.58
13	172527	1	PIN	$95.90
14	157289	1	SCREW	$10.00
15	172537	1	BELT TIGHTENING PULLEY	$131.12
16	133216	1	NUT	$12.63
17	102695	1	WASHER		Unavailable
18	174508	1	WASHER	$6.37
19	213155	1	COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES	$1,579.75
20	176903	1	PROTECTION BOOT		Unavailable
21	155073	1	CABLE FOR ENGINE-FRAME EARTH		Unavailable
22	183392	1	STARTER MOTOR	$1,494.06
23	179719	1	STARTER MOTOR SUPPORTING BRACKET	$48.29
24	160472	2	NUT		Unavailable
25	61148700	2	WASHER		Unavailable
26	13517024	2	STUD		Unavailable
27	133989	2	NUT	$0.90
28	127496	3	WASHER	$0.90
29	10519624	3	WASHER		Unavailable
30	176212	1	SCREW	$1.16
31	64449900	1	CAP NUT	$9.89
32	127493	1	WASHER	$0.90
33	154803	1	PROTECTION BOOT	$6.70
34	16100814	1	NUT		Unavailable
35	12601374	1	WASHER	$0.90
36	12601274	2	WASHER	$0.90
37	102741	2	NUT	$0.90
38	149694	2	FIXING BRACKET	$8.20
39	10441990	1	BRACKET WITH SHEATH		Unavailable
40	10450690	5	BRACKET WITH SHEATH		Unavailable
41	10441790	2	BRACKET WITH SHEATH	$0.95
42	102741	1	NUT	$0.90
43	10519424	1	WASHER		Unavailable
44	10902424	2	SCREW		Unavailable
45	127494	2	WASHER	$0.90
46	12644424	2	WASHER		Unavailable
47	164467	1	BUSHING		Unavailable
48	196131	1	REAR BRACKET	$119.04

* Quantity shown indicates the number of pieces used in the diagram.
