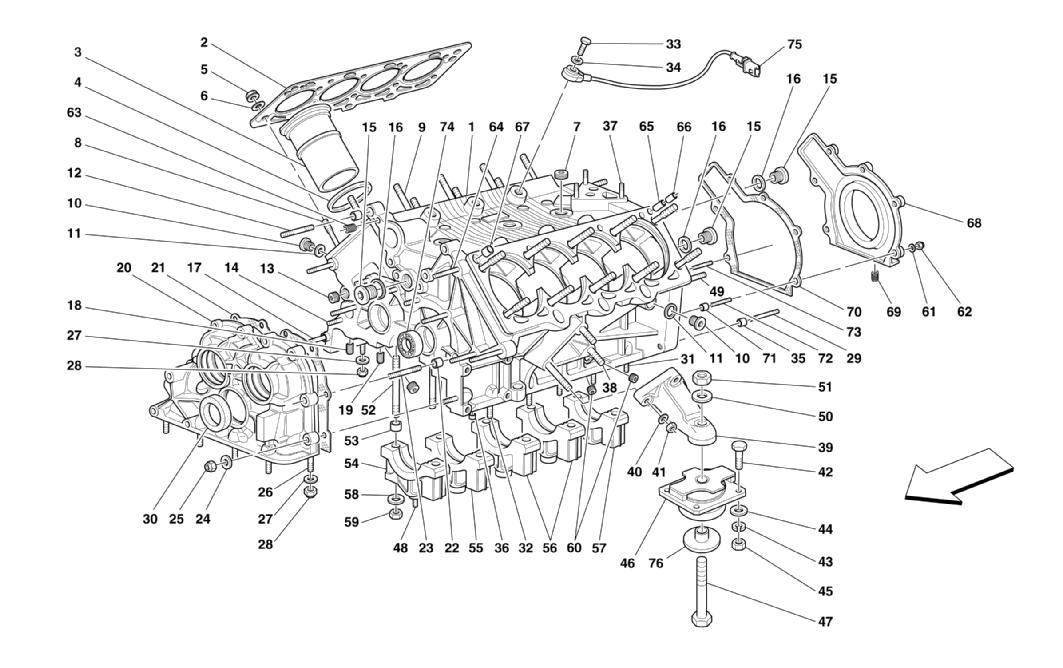

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
- 201697 1 COMPLETE CRANKCASE $11,312.09
1 201217 1 CRANKCASE-Not as spare part-With the complete crankcase Unavailable
2 174853 2 GASKET Unavailable
3 136875 8 CYLINDERS LINER Unavailable
4 136258 8 GASKET $7.29
5 148093 20 NUT $31.95
6 176208 8 WASHER-Crankcase front and rear side $4.85
6 151117 12 WASHER-Crankcase central side $1.50
7 14325540 3 THREADED PLUG $12.77
8 176148 8 STUD-Crankcase front and rear side $13.99
9 148311 12 STUD-Crankcase central side $44.13
10 200988 2 WATER OUTLET PLUG Unavailable
11 10280060 2 GASKET $0.90
12 13544034 1 STUD $1.48
13 14325140 1 THREADED PLUG Unavailable
14 13543424 5 STUD Unavailable
15 10275011 3 THREADED PLUG $2.58
16 10263460 3 GASKET Superseded
17 13544024 1 STUD $0.95
18 13525870 3 THREADED INSERT Unavailable
19 13525770 1 THREADED INSERT Unavailable
20 169754 1 FRONT COVER-Not as spare part-With the complete crankcase Unavailable
21 153921 1 GASKET $20.69
22 100041 2 DOWEL $9.91
23 13543624 1 STUD Unavailable
24 12601374 9 WASHER $0.90
25 101139 9 NUT $0.90
26 13543524 6 STUD Unavailable
27 12604474 18 WASHER $0.90
28 101139 18 NUT $0.90
29 13547034 4 STUD $4.41
30 163985 1 GASKET $51.74
31 13543524 8 STUD Unavailable
32 13543624 4 STUD Unavailable
33 16043834 4 SCREW Unavailable
34 11198074 4 WASHER Unavailable
35 165351 2 CENTERING DOWEL $4.55
36 102725 2 DOWEL $1.50
37 13543524 3 STUD Unavailable
38 13546624 4 STUD $1.20
38 13547124 2 STUD-Right side support $1.66
39 183804 2 ENGINE FIXING SUPPORT $139.75
40 11190574 6 WASHER $0.90
41 133988 6 NUT Unavailable
42 15970734 8 SCREW Unavailable
43 127497 8 WASHER $0.90
44 12646824 8 WASHER Unavailable
45 133988 8 NUT Unavailable
46 190255 2 FLEXIBLE PAD $207.04
47 11369634 2 SCREW Superseded
48 13516624 4 STUD Unavailable
49 13547234 2 STUD Unavailable
50 12601774 2 WASHER Unavailable
51 176573 2 NUT $2.58
52 180263 10 STUD $12.63
53 125317 10 CENTERING DOWEL $1.66
54 152158 1 FRONT HAT-Not as spare part-With the complete crankcase Unavailable
55 152159 1 FRONT INTERMEDIATE HAT-Not as spare part-With the complete crankcase Unavailable
56 152098 2 INTERMEDIATE CENTRALAND REAR HAT-Not as spare part-With the complete crankcase Unavailable
57 152099 1 REAR HAT-Not as spare part-With the complete crankcase Unavailable
58 103842 10 WASHER $3.84
59 6103841 10 NUT $13.99
60 164400 2 THREADED PLUG $4.85
61 12620474 6 WASHER $0.90
62 15896214 6 NUT Unavailable
63 13525870 4 THREADED INSERT Unavailable
64 13544024 2 STUD $0.95
65 156862 2 NONRETURN VALVE $22.82
66 175644 2 REAR DOWEL $4.41
67 173479 2 FRONT DOWEL $31.95
68 170527 1 REAR COVER-Not as spare part-With the complete crankcase Unavailable
69 13525570 2 THREADED INSERT $2.86
70 170529 1 GASKET $36.22
71 103038 2 DOWEL Unavailable
72 13541124 2 STUD Unavailable
73 13540824 4 STUD Unavailable
74 171177 2 BEARING $24.34
75 177672 2 SENSOR FOR FIRING $243.58
76 182141 2 RETAINING WASHER $50.02

* Quantity shown indicates the number of pieces used in the diagram.
