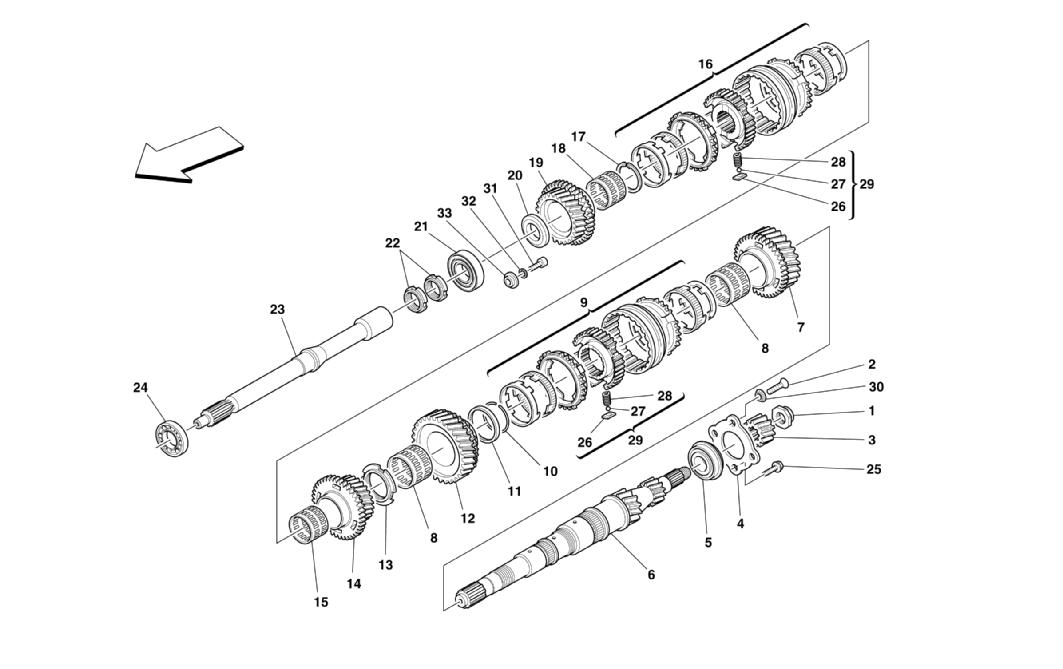

MAIN SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 183967 1 RING NUT Unavailable
2 14442027 2 SCREW $2.11
3 183966 1 REVERSE DRIVING GEAR $482.10
4 183984 1 REAR PLATE $11.83
5 184019 1 BALL BEARING Unavailable
6 183964 1 MAIN SHAFT $3,966.90
7 183949 1 PINION FOR 5th GEAR $1,253.50
8 184015 2 ROLLER CAGE $56.82
9 185166 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $1,851.34
10 184011 1 FLEXIBLE RING $11.86
11 183970 1 SPACER FOR PINION FOR 6th GEAR $146.14
12 183950 1 PINION FOR 6th GEAR $1,311.36
13 184010 1 RING $441.50
14 183947 1 PINION FOR 3rd GEAR $3,573.49
15 184014 1 ROLLER CAGE $25.96
16 185165 1 3rd AND 4th GEAR COMPLETE SYNCHRONIZER $1,793.48
17 184042 1 FLEXIBLE RING $19.77
18 184005 1 ROLLER CAGE $29.21
19 183948 1 PINION FOR 4th GEAR $1,740.10
20 183973 1 WASHER $63.92
21 184021 1 ROLLER BEARING $211.10
22 184012 2 RING NUT $39.56
23 183965 1 CLUTCH SHAFT $569.39
24 184013 1 BALL BEARING $56.82
25 16287124 2 SCREW $1.66
26 184991 6 PAD FOR SYNCHRONIZER -Not as spare part replaced by 188320 -See ref.29 Unavailable
27 184997 6 BALL -Not as spare part replaced by 188320 -See ref.29 Unavailable
28 188320 6 SPRING -Not as spare part replaced by 188320 -See ref.29 $14.45
29 188320 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $14.45
30 12606979 2 WASHER $13.58
31 14305720 1 SCREW Superseded
32 10569274 1 WASHER Superseded
33 183985 1 BUSHING $16.38

* Quantity shown indicates the number of pieces used in the diagram.
