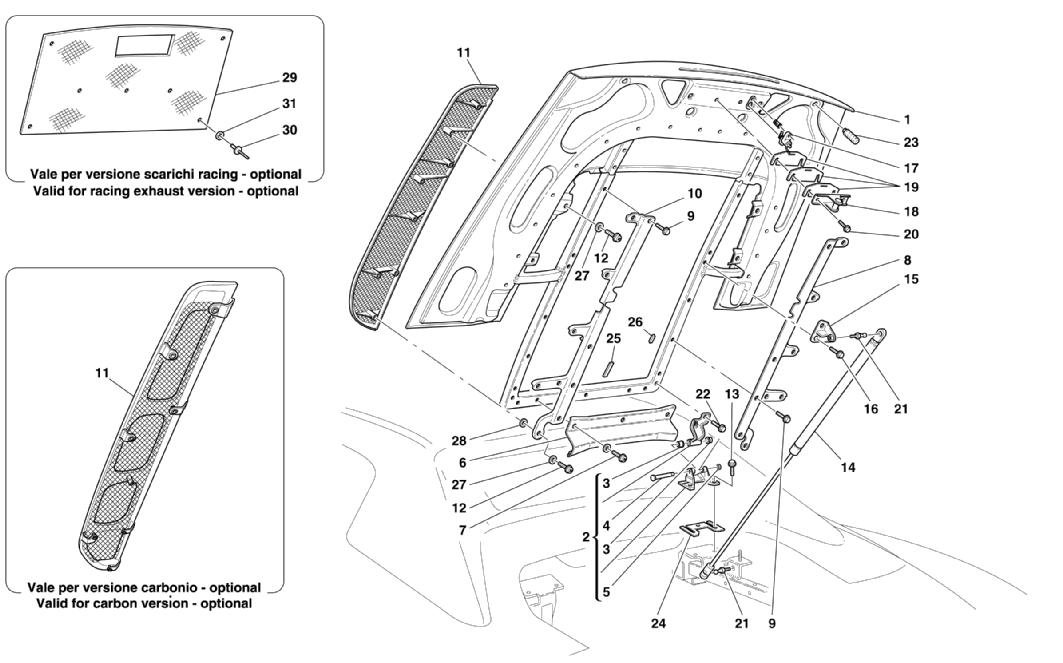

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65784200 *Qty: 1 REAR HOOD BONNET Unavailable
Location: 2 Prev | Next Part: 65789900 *Qty: 1 L.H. HINGE $143.75
Location: 2 Prev | Next Part: 65789500 *Qty: 1 R.H. HINGE $143.75
Location: 3 Prev | Next Part: 62825300 *Qty: 8 HINGE BUSHING $31.40
Location: 4 Prev | Next Part: 64807100 *Qty: 2 PIN $9.39
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 65796700 *Qty: 1 FRONT HOOD CONTOUR $75.90
Location: 7 Prev | Next Part: 65864100 *Qty: 3 SCREW $1.64
Location: 8 Prev | Next Part: 65795000 *Qty: 1 R.H. PLATE $136.80
Location: 9 Prev | Next Part: 66157800 *Qty: 10 SCREW $2.19
Location: 10 Prev | Next Part: 65795100 *Qty: 1 L.H. PLATE $136.80
Location: 11 Prev | Next Part: 68404200 *Qty: 1 L.H. GRILL -Valid for carbon version -Optional $2,514.52
Location: 11 Prev | Next Part: 65785100 *Qty: 1 R.H. GRILL $241.18
Location: 11 Prev | Next Part: 68404100 *Qty: 1 R.H. GRILL -Valid for carbon version -Optional $2,514.52
Location: 11 Prev | Next Part: 65785200 *Qty: 1 L.H. GRILL $241.18
Location: 12 Prev | Next Part: 66294400 *Qty: 16 SCREW Unavailable
Location: 13 Prev | Next Part: 66253700 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 65796000 *Qty: 2 GAS SPRING $75.99
Location: 15 Prev | Next Part: 65526300 *Qty: 2 BRACKET $38.72
Location: 16 Prev | Next Part: 66233700 *Qty: 4 SCREW Unavailable
Location: 17 Prev | Next Part: 143331 *Qty: 1 ADDITIONAL STOP LIGHT MOBILE CONTACT $7.16
Location: 18 Prev | Next Part: 64867900 *Qty: 1 HOOD CLOSING STRIKER $121.03
Location: 19 Prev | Next Part: 65524800 *Qty: 4 ADJUSTING PLATE -Possible fitting $4.30
Location: 20 Prev | Next Part: 16286027 *Qty: 2 SCREW Unavailable
Location: 21 Prev | Next Part: 65939900 *Qty: 2 PIN $3.55
Location: 22 Prev | Next Part: 66233600 *Qty: 4 SCREW $1.69
Location: 23 Prev | Next Part: 62167600 *Qty: 2 SMALL BLOCK $4.93
Location: 24 Prev | Next Part: 65901200 *Qty: 4 THICKNESS $2.33
Location: 25 Prev | Next Part: 65714600 *Qty: 4 SPACER Unavailable
Location: 26 Prev | Next Part: 63023300 *Qty: 2 SPACER Unavailable
Location: 27 Prev | Next Part: 12644478 *Qty: 16 WASHER Unavailable
Location: 28 Prev | Next Part: 12643778 *Qty: 0 WASHER -Possible fitting $0.90
Location: 29 Prev | Next Part: 68453200 *Qty: 1 INSULATION FOR ENGINE HOOD BONNET -Valid for racing exhaust version -Optional $137.28
Location: 30 Prev | Next Part: 14641495 *Qty: 7 RIVET -Valid for racing exhaust version -Optional Unavailable
Location: 31 Prev | Next Part: 12637824 *Qty: 7 WASHER -Valid for racing exhaust version -Optional $0.90

* Quantity shown indicates the number of pieces used in the diagram.
