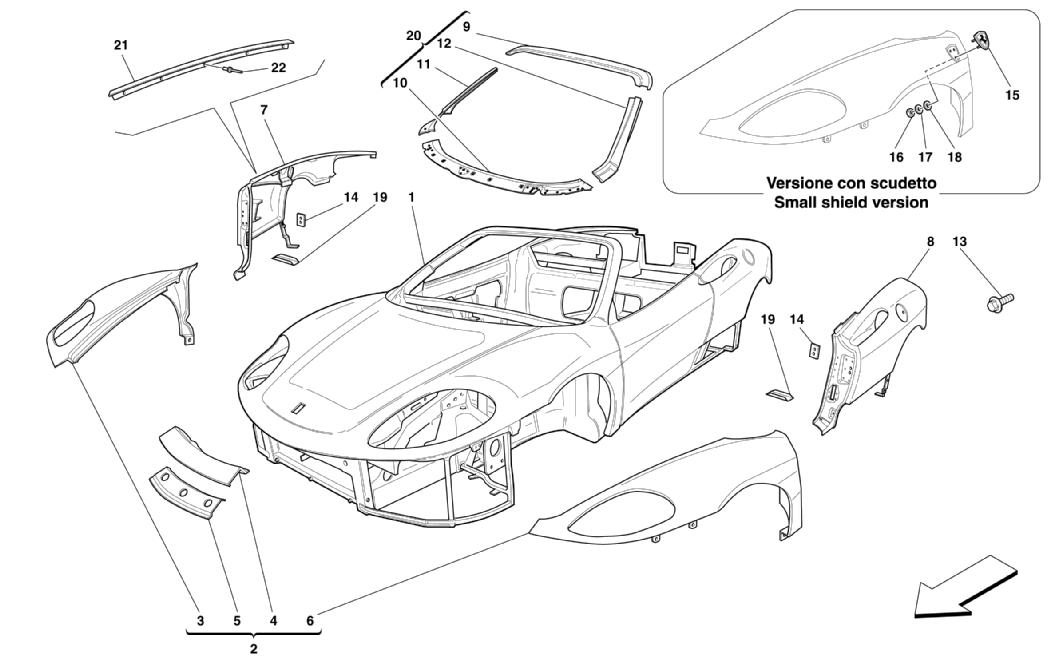

BODY - OUTER TRIMS

Location Part # Quantity* Description Price Add To Cart
2 65392611 1 COMPLETE FRONT FENDER ASSEMBLY Unavailable
2 65924711 1 COMPLETE FRONT FENDER ASSEMBLY -Small shield version Unavailable
3 65924811 1 COMPLETE R.H. FRONT FENDER -Small shield version Unavailable
3 65313711 1 COMPLETE R.H. FRONT FENDER Unavailable
4 65314111 1 FRONT CENTRAL LINING Unavailable
5 66233911 1 FRONT CENTRAL MOULDING $422.22
6 65313811 1 COMPLETE L.H. FRONT FENDER Unavailable
6 65924911 1 COMPLETE L.H. FRONT FENDER -Small shield version Unavailable
7 66158611 1 COMPLETE R.H. REAR FENDER -Valid for RHD $5,614.15
7 65783911 1 COMPLETE R.H. REAR FENDER -Not for RHD $5,614.15
7 66650411 1 COMPLETE R.H. REAR FENDER -Valid for RHD -Not as spare part replaced by 66158611 Unavailable
8 66158711 1 COMPLETE L.H. REAR FENDER -Valid for RHD $5,458.15
8 65784011 1 COMPLETE L.H. REAR FENDER -Not for RHD $5,614.15
8 66650511 1 COMPLETE L.H. REAR FENDER -Valid for RHD -Not as spare part replaced by 66158711 Unavailable
9 65780100 1 COMPLETE WINDSHIELD LINING CROSS MEMBER $126.55
10 65703100 1 TAIL WINDSHIELD TRIM $543.76
11 65315011 1 R.H. WINDSHIELD PILLAR SHIELD $500.37
12 65315111 1 L.H. WINDSHIELD PILLAR SHIELD $419.70
13 13836971 0 SCREW Unavailable
14 65934600 2 PLATE $50.02
15 65921900 2 SQUADRA CORSE SMALL SHIELD $504.11
16 16101711 6 NUT Unavailable
17 14498521 6 WASHER Unavailable
18 12624178 6 WASHER Unavailable
19 65155300 2 FIXED REAR BRACKET FOR REAR FENDER $241.55
20 65783800 1 COMPLETE WINDSCREEN FRAME Unavailable
21 66156300 1 L.H. INSERT $22.84
21 66155400 1 R.H. INSERT $27.59
22 60110103 10 RIVET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
