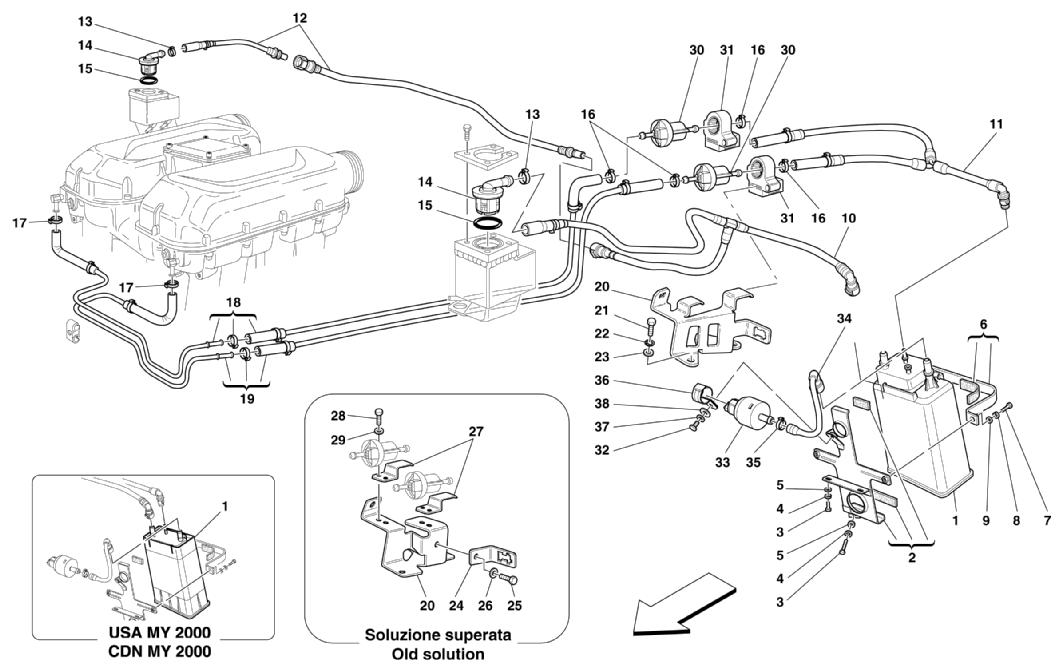

ANTIEVAPORATION DEVICE - VALID FOR USA MY 2000-2004

Go to Split View

ANTIEVAPORATION DEVICE - VALID FOR USA MY 2000-2004

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 178536 *Qty: 1 FUEL VAPOR FILTER -Not for USA MY 2001,2002,2003,2004 and CDN MY 2001,2002,2003,2004 Call
Location: 1 Prev | Next Part: 186316 *Qty: 1 FUEL VAPOR FILTER -Valid for USA MY 2001, 2002,2003,2004 and CDN MY 2001,2002,2003,2004 $292.06
Location: 2 Prev | Next Part: 180615 *Qty: 1 FRAME FASTENING FILTER BRACKET $33.83
Location: 3 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 5 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 180636 *Qty: 1 VAPOR FILTER FIXING CLAMP $8.54
Location: 7 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 179475 *Qty: 1 PIPE FROM VALVE TO DISAREATOR $118.46
Location: 11 Prev | Next Part: 179476 *Qty: 1 PIPE FROM ANTIEVAPORATION VALVES TO DISAREATOR $96.80
Location: 12 Prev | Next Part: 181018 *Qty: 1 R.H. ROLL-OVER PIPE $97.89
Location: 13 Prev | Next Part: 13432070 *Qty: 2 COLLAR FOR SLEEVE $0.90
Location: 14 Prev | Next Part: 178533 *Qty: 2 ANTI FLOWING BACK VALVE $50.40
Location: 15 Prev | Next Part: 180934 *Qty: 2 GASKET $0.90
Location: 16 Prev | Next Part: 13432070 *Qty: 4 COLLAR FOR SLEEVE $0.90
Location: 17 Prev | Next Part: 13432070 *Qty: 2 COLLAR FOR SLEEVE $0.90
Location: 18 Prev | Next Part: 179477 *Qty: 1 PIPE FROM R.H. ANTIEVAPORATION VALVE TO ENGINE $81.89
Location: 19 Prev | Next Part: 179478 *Qty: 1 PIPE FROM L.H. ANTIEVAPORATION VALVE TO ENGINE $96.35
Location: 20 Prev | Next Part: 186271 *Qty: 1 VALVE SUPPORTING BRACKET -Valid till stock exhaustion $62.76
Location: 20 Prev | Next Part: 194348 *Qty: 1 VALVE AND CONNECTORS SUPPORTING BRACKET -Valid after stock exhaustion of 186271 -Replace also particulars ref. 24,25,26,27,28,29 Call
Location: 21 Prev | Next Part: 10979434 *Qty: 2 SCREW $1.17
Location: 22 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 178366 *Qty: 1 CONNECTOR FIXING BRACKET $14.96
Location: 25 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 174708 *Qty: 2 BRACKET $5.12
Location: 28 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 162412 *Qty: 2 WASHING VALVE $39.51
Location: 31 Prev | Next Part: 174623 *Qty: 2 BUFFER FOR SUPPORT $11.13
Location: 32 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 179138 *Qty: 1 ON-OFF VALVE $130.33
Location: 34 Prev | Next Part: 178540 *Qty: 1 COMPLETE TUBE $44.03
Location: 35 Prev | Next Part: 13430770 *Qty: 1 COLLAR FOR SLEEVE $0.90
Location: 36 Prev | Next Part: 181607 *Qty: 1 BRACKET WITH SHEATH $8.51
Location: 37 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
