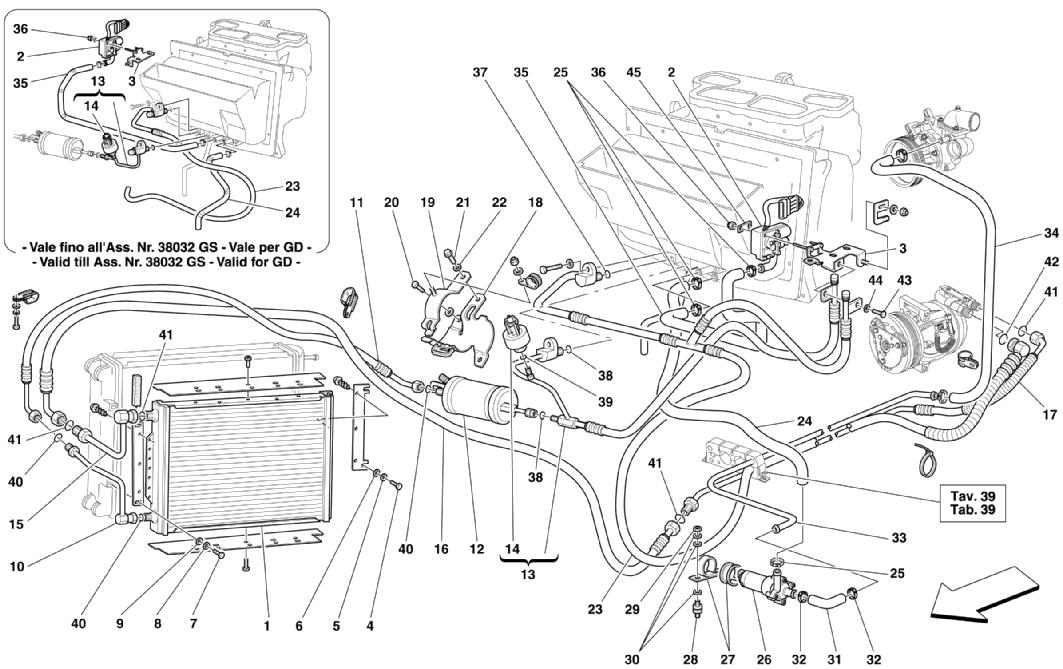

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 178565 *Qty: 1 A.C. CONDENSER $564.37
Location: 2 Prev | Next Part: 65066400 *Qty: 1 TGK VALVE $307.62
Location: 3 Prev | Next Part: 65848400 *Qty: 1 BRACKET FOR VALVE FIXING -Valid till Ass. Nr. 38032 -Not for RHD $9.09
Location: 3 Prev | Next Part: 66150300 *Qty: 1 BRACKET FOR VALVE FIXING -Valid from Ass. Nr. 38033 -Not for RHD $20.64
Location: 3 Prev | Next Part: 65882200 *Qty: 1 BRACKET FOR VALVE FIXING -Valid for RHD Call
Location: 4 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 14496424 *Qty: 3 WASHER Superseded
Location: 7 Prev | Next Part: 60909500 *Qty: 1 SCREW $2.39
Location: 8 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 12643724 *Qty: 1 WASHER Superseded
Location: 10 Prev | Next Part: 65830900 *Qty: 1 DELIVERY METAL PIPE $262.53
Location: 11 Prev | Next Part: 65830700 *Qty: 1 HOSE FROM CONDENSER TO FILTER $245.06
Location: 12 Prev | Next Part: 65628300 *Qty: 1 DEHYDRATING FILTER $106.29
Location: 13 Prev | Next Part: 66147900 *Qty: 1 PIPE FROM FILTER TO A.C. SYSTEM -Valid from Ass. Nr. 38033 -Not for RHD $308.28
Location: 13 Prev | Next Part: 66090200 *Qty: 1 PIPE FROM FILTER TO A.C. SYSTEM -Valid for RHD $446.56
Location: 13 Prev | Next Part: 65898700 *Qty: 1 PIPE FROM FILTER TO A.C. SYSTEM -Valid till Ass. Nr. 38032 -Not for RHD $426.34
Location: 14 Prev | Next Part: 65628200 *Qty: 1 PRESSOSTAT $164.41
Location: 15 Prev | Next Part: 65830800 *Qty: 1 INLET METAL PIPE $277.91
Location: 16 Prev | Next Part: 65830600 *Qty: 1 PIPE FROM UNDERFLOOR PIPE TO CONDENSER -Not for RHD $290.38
Location: 16 Prev | Next Part: 65744300 *Qty: 1 PIPE FROM UNDERFLOOR PIPE TO CONDENSER -Valid for RHD Call
Location: 17 Prev | Next Part: 65230500 *Qty: 1 UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR Call
Location: 18 Prev | Next Part: 65539400 *Qty: 1 FILTER SUPPORT -Not for RHD $6.87
Location: 18 Prev | Next Part: 65880700 *Qty: 1 FILTER SUPPORT -Valid for RHD Call
Location: 19 Prev | Next Part: 65880900 *Qty: 1 BRACKET -Valid for RHD Call
Location: 19 Prev | Next Part: 65547700 *Qty: 1 BRACKET -Not for RHD $4.43
Location: 20 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 68721400 *Qty: 1 SCREW $1.04
Location: 21 Prev | Next Part: 13840511 *Qty: 1 SCREW -Not as spare part -Replaced by 68721400 $4.42
Location: 22 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 65921100 *Qty: 1 PIPE FROM A.C. SYSTEM TO COMPRESSOR -Valid till Ass. Nr. 38032 LHD -Valid for RHD $254.94
Location: 23 Prev | Next Part: 66148000 *Qty: 1 PIPE FROM A.C. SYSTEM TO COMPRESSOR -Valid from Ass. Nr. 38033 LHD -Not for RHD $318.01
Location: 24 Prev | Next Part: 65460800 *Qty: 1 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for RHD $163.21
Location: 24 Prev | Next Part: 65744600 *Qty: 1 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Valid for RHD $43.26
Location: 25 Prev | Next Part: 13000390 *Qty: 4 SCREW COLLAR $0.90
Location: 26 Prev | Next Part: 65460300 *Qty: 1 MINIMUM PUMP $229.54
Location: 27 Prev | Next Part: 63994900 *Qty: 1 COMPLETE BRACKET $10.90
Location: 28 Prev | Next Part: 142202 *Qty: 2 PAD $10.09
Location: 29 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 10571570 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 65460700 *Qty: 1 PIPE FROM UNDERFLOOR PIPE TO MINIMUM PUMP $86.07
Location: 32 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 33 Prev | Next Part: 65231400 *Qty: 1 WATER PIPE UNDERFLOOR $78.32
Location: 34 Prev | Next Part: 65831500 *Qty: 1 PIPE FROM WATER PUMP TO UNDRFLOOR PIPE $166.04
Location: 35 Prev | Next Part: 65231700 *Qty: 1 PIPE FROM A.C. HEATER TO TGK VALVE -Not for RHD $29.63
Location: 35 Prev | Next Part: 65744700 *Qty: 1 PIPE FROM A.C. HEATER TO TGK VALVE -Valid for RHD $55.16
Location: 36 Prev | Next Part: 14078010 *Qty: 2 NUT -Valid till Ass. Nr. 38032 LHD -Valid for RHD Call
Location: 36 Prev | Next Part: 62790300 *Qty: 2 NUT -Valid from Ass. Nr. 38033 LHD -Not for RHD $0.90
Location: 37 Prev | Next Part: 66309800 *Qty: 1 O.R. GASKET $4.73
Location: 38 Prev | Next Part: 66309700 *Qty: 2 O.R. GASKET $7.20
Location: 39 Prev | Next Part: 66309600 *Qty: 1 O.R. GASKET Call
Location: 40 Prev | Next Part: 66309300 *Qty: 2 O.R. GASKET $1.81
Location: 41 Prev | Next Part: 66309400 *Qty: 4 O.R. GASKET $2.18
Location: 42 Prev | Next Part: 66309500 *Qty: 1 O.R. GASKET $2.18
Location: 43 Prev | Next Part: 10977524 *Qty: 1 SCREW -Valid from Ass. Nr. 38033 -Not for RHD $0.90
Location: 44 Prev | Next Part: 11188079 *Qty: 1 WASHER -Valid from Ass. Nr. 38033 -Not for RHD $0.90
Location: 45 Prev | Next Part: 65929400 *Qty: 1 SMALL PLATE -Valid from Ass. Nr. 38033 -Not for RHD $2.28

* Quantity shown indicates the number of pieces used in the diagram.
