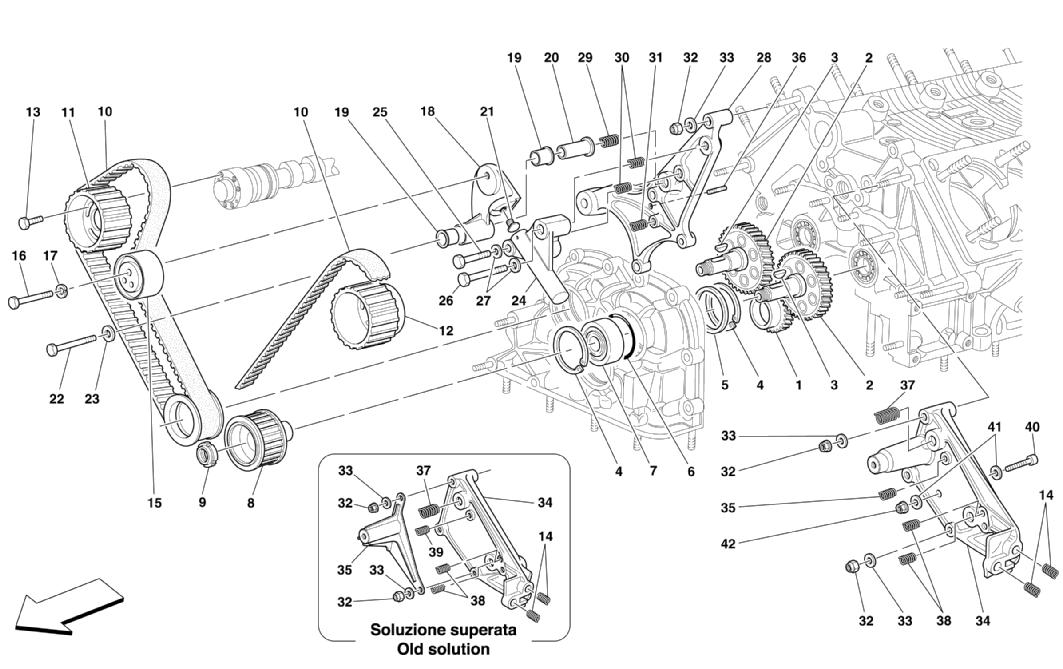

TIMING - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 160598 1 DRIVING GEAR $752.09
2 181984 2 DRIVEN GEAR -Replaces 179079 $2,168.10
3 10206320 2 DISC KEY $2.11
4 11060576 4 SEEGER RING $1.89
5 133377 2 WASHER $22.82
6 136140 2 O.R. GASKET $1.81
7 170787 2 BEARING $235.00
8 154238 2 DRIVING PULLEY $621.16
9 104919 2 RING NUT $7.45
10 184986 2 TIMING CONTROL BELT $211.10
11 169154 2 R.H. EXHAUST INDUCTION DISTRIBUTION PULLEY $125.94
12 169153 2 L.H. EXHAUST INDUCTION DISTRIBUTION PULLEY $983.51
13 181336 16 SCREW Unavailable
14 13525770 2 THREADED INSERT Unavailable
15 181264 2 BELT TIGHTENING PULLEY Superseded
16 11307024 2 SCREW $1.25
17 127497 2 WASHER $0.90
18 181253 2 BELT TIGHTENER ARM Unavailable
19 159425 4 BUSHING $4.65
20 158138 2 BUSHING $91.43
21 158156 2 PAWL Unavailable
22 11288034 2 SCREW $1.81
23 184318 2 WASHER $4.49
24 202784 1 L.H. HYDRAULIC TIGHTENER -Valid from engine Nr.83762 $621.16
24 157356 1 R.H. HYDRAULIC TIGHTENER $396.84
25 205693 2 SCREW $85.24
25 125506 2 SCREW -Not as spare part -Replaced by 205693 Unavailable
26 185234 2 SCREW $86.76
26 16044234 2 SCREW -Not as spare part -Replaced by 185234 Unavailable
27 12601374 4 WASHER $0.90
28 179635 1 UPPER BRACKET FOR GENERATOR SUPPORT $345.08
29 13526170 1 THREADED INSERT $6.52
30 13525870 2 THREADED INSERT Unavailable
31 13525570 1 THREADED INSERT $2.86
32 101139 4 NUT -M 8X8 $0.90
32 177778 2 NUT -m8x7 $1.97
33 12601374 3 WASHER $0.90
34 180168 1 BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Not as spare part replaced by 181822 Unavailable
34 202786 1 BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Valid from engine Nr.83762 Unavailable
34 181822 1 BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Replaces 180168, 181816, 181302 and 181815 -Valid Unavailable
35 181302 1 BELT TIGHTENING SUPPORT BRACKET -Not as spare part replaced by 181822 Unavailable
35 181822 1 BELT TIGHTENING SUPPORT BRACKET -Not as spare part replaced by 181822 Unavailable
36 11499924 1 STUD Unavailable
37 13526170 1 THREADED INSERT $6.52
38 13525870 2 THREADED INSERT Unavailable
39 13525570 1 THREADED INSERT $2.86
40 14306424 1 SCREW -Valid from engine Nr.82119 Unavailable
41 12604474 2 WASHER -Valid from engine Nr.82119 $0.90
42 177778 1 NUT -Valid from engine Nr.82119 $1.97

* Quantity shown indicates the number of pieces used in the diagram.
