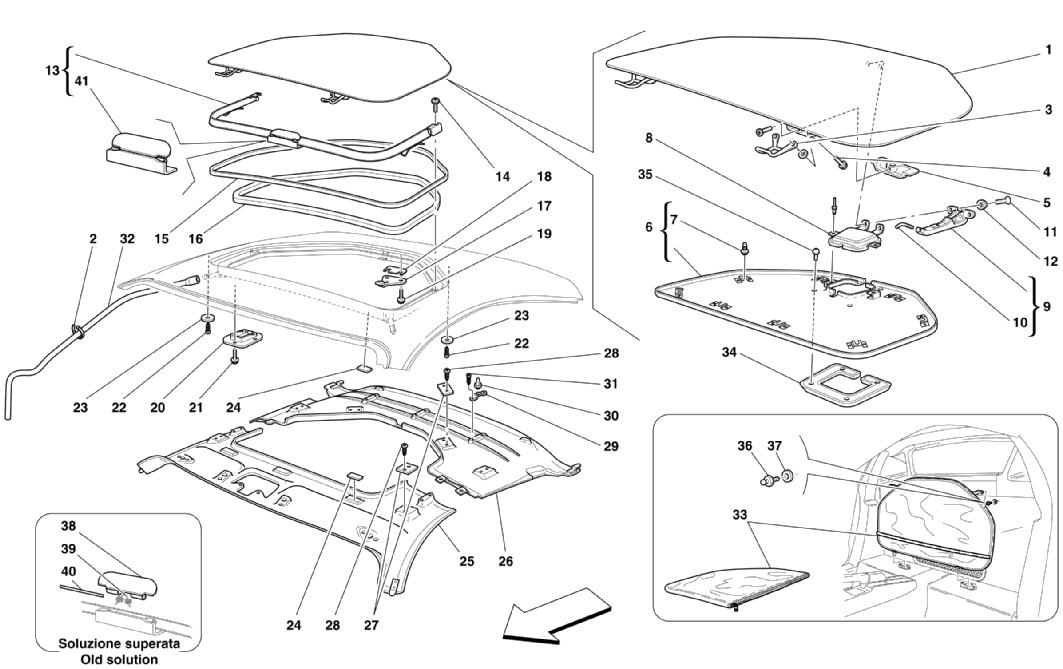

REMOVABLE TOP

Go to Split View

REMOVABLE TOP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65726211 *Qty: 1 SHEETED COMPLETE REMOVABLE TOP $2,942.22
Location: 2 Prev | Next Part: 13000390 *Qty: 2 CLAMP $0.90
Location: 2 Prev | Next Part: 10175090 *Qty: 2 CLAMP -Not as spare part -Replaced by 13000390 $0.90
Location: 3 Prev | Next Part: 65970200 *Qty: 2 TOP HOOK $187.15
Location: 4 Prev | Next Part: 13835814 *Qty: 4 SCREW $3.76
Location: 5 Prev | Next Part: 65737000 *Qty: 2 TOP HOOK COVER $10.08
Location: 6 Prev | Next Part: 65934831 *Qty: 0 Description not available Call
Location: 6 Prev | Next Part: 65934800 *Qty: 0 RICOPRIMENTO OSSAT.FINIZ.TETTO CPL $1,365.68
Location: 6 Prev | Next Part: 65934817 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.GRIGIO S.4302 Call
Location: 6 Prev | Next Part: 65934828 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.C.ZUCCH.A4577 Call
Location: 6 Prev | Next Part: 65934802 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.BLU SCU.3282 Call
Location: 6 Prev | Next Part: 65934819 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.CHARCOAL 4304 Call
Location: 6 Prev | Next Part: 65934829 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.CUOIO 4609 Call
Location: 6 Prev | Next Part: 65934804 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.CREMA 3997 Call
Location: 6 Prev | Next Part: 65934825 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.BORDEAUX 4481 Call
Location: 6 Prev | Next Part: 65934830 *Qty: 0 Description not available Call
Location: 6 Prev | Next Part: 65934805 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.BEIGE 4208 Call
Location: 6 Prev | Next Part: 65934827 *Qty: 0 RICOPRIM.FINIZ.TETTO-P.SABBIA A4310 Call
Location: 7 Prev | Next Part: 14591687 *Qty: 8 FIXING BUTTON $0.90
Location: 8 Prev | Next Part: 65736600 *Qty: 1 PLATE $83.24
Location: 9 Prev | Next Part: 66303200 *Qty: 1 COMPLETE ROOF HANDLE $489.16
Location: 10 Prev | Next Part: 65914400 *Qty: 1 PIN FASTENING -Not as spare part -With complete handle Call
Location: 11 Prev | Next Part: 66078500 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 66078600 *Qty: 2 WASHER $3.81
Location: 13 Prev | Next Part: 65738400 *Qty: 1 COMPLETE SPOILER $670.39
Location: 14 Prev | Next Part: 16285924 *Qty: 2 SCREW -Not as spare part -Replaced by 66294400 $0.90
Location: 14 Prev | Next Part: 66294400 *Qty: 2 SCREW Call
Location: 15 Prev | Next Part: 65934500 *Qty: 1 OUTER GASKET $112.67
Location: 16 Prev | Next Part: 66232800 *Qty: 1 INNER GASKET $111.73
Location: 16 Prev | Next Part: 65934300 *Qty: 1 INNER GASKET -Not as spare part replaced by 66232800 Call
Location: 17 Prev | Next Part: 65736500 *Qty: 1 STRIKER $276.91
Location: 18 Prev | Next Part: 65738800 *Qty: 0 PLATE -Th. 1,0mm- -Possible fitting Call
Location: 18 Prev | Next Part: 65738900 *Qty: 0 PLATE -Th. 0,5mm- -Possible fitting Call
Location: 19 Prev | Next Part: 65377400 *Qty: 2 SCREW Superseded
Location: 20 Prev | Next Part: 65737200 *Qty: 2 GUIDE SHOE Call
Location: 21 Prev | Next Part: 65377400 *Qty: 6 SCREW Superseded
Location: 22 Prev | Next Part: 15902670 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 10374811 *Qty: 2 SCREW -Not as spare part -Replaced by 13299116 Call
Location: 22 Prev | Next Part: 13299116 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 65728300 *Qty: 6 WASHER $8.77
Location: 24 Prev | Next Part: 65728200 *Qty: 6 SMALL PLATE $8.89
Location: 25 Prev | Next Part: 65725125 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.BORDEAUX 4481 Call
Location: 25 Prev | Next Part: 65725130 *Qty: 0 Description not available Call
Location: 25 Prev | Next Part: 65725105 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.BEIGE 4208 Call
Location: 25 Prev | Next Part: 65725127 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.SABBIA A4310 Call
Location: 25 Prev | Next Part: 65725131 *Qty: 0 Description not available Call
Location: 25 Prev | Next Part: 65725100 *Qty: 0 Description not available Call
Location: 25 Prev | Next Part: 65725117 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.GRIGIO S.4302 Call
Location: 25 Prev | Next Part: 65725128 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.C.ZUCCH.A4577 Call
Location: 25 Prev | Next Part: 65725102 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.BLU SCU.3282 Call
Location: 25 Prev | Next Part: 65725119 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.CHARCOAL 4304 Call
Location: 25 Prev | Next Part: 65725129 *Qty: 0 Description not available Call
Location: 25 Prev | Next Part: 65725104 *Qty: 0 RICOPRIM.ANT.PADIGL.-P.CREMA 3997 Call
Location: 26 Prev | Next Part: 65724705 *Qty: 0 RICOPRIM.POST.PADIGL-P.BEIGE 4208 Call
Location: 26 Prev | Next Part: 65724727 *Qty: 0 RICOPRIM.POST.PADIGL-P.SABBIA A4310 Call
Location: 26 Prev | Next Part: 65724731 *Qty: 0 Description not available Call
Location: 26 Prev | Next Part: 65724700 *Qty: 0 Description not available Call
Location: 26 Prev | Next Part: 65724717 *Qty: 0 RICOPRIM.POST.PADIGL-P.GRIGIO S.4302 Call
Location: 26 Prev | Next Part: 65724728 *Qty: 0 RICOPRIM.POST.PADIGL-P.C.ZUCCH.A4577 Call
Location: 26 Prev | Next Part: 65724702 *Qty: 0 RICOPRIM.POST.PADIGL-P.BLU SCU.3282 Call
Location: 26 Prev | Next Part: 65724719 *Qty: 0 RICOPRIM.POST.PADIGL-P.CHARCOAL 4304 Call
Location: 26 Prev | Next Part: 65724729 *Qty: 0 RICOPRIM.POST.PADIGL-P.CUOIO 4609 Call
Location: 26 Prev | Next Part: 65724704 *Qty: 0 RICOPRIM.POST.PADIGL-P.CREMA 3997 Call
Location: 26 Prev | Next Part: 65724725 *Qty: 0 RICOPRIM.POST.PADIGL-P.BORDEAUX 4481 Call
Location: 26 Prev | Next Part: 65724730 *Qty: 0 Description not available Call
Location: 27 Prev | Next Part: 65728400 *Qty: 8 SMALL PLATE Call
Location: 28 Prev | Next Part: 15957201 *Qty: 16 SCREW $0.90
Location: 29 Prev | Next Part: 65069900 *Qty: 3 PLATE $0.90
Location: 30 Prev | Next Part: 14186880 *Qty: 3 RETAINER $0.90
Location: 31 Prev | Next Part: 16082901 *Qty: 6 SCREW $0.90
Location: 32 Prev | Next Part: 66052100 *Qty: 2 WATER EXHAUST TUBE Call
Location: 33 Prev | Next Part: 65729600 *Qty: 1 PORTFOLIO $529.11
Location: 34 Prev | Next Part: 66303500 *Qty: 1 PROTECTION MOULDING $51.49
Location: 35 Prev | Next Part: 65212000 *Qty: 4 SCREW $1.17
Location: 36 Prev | Next Part: 63992200 *Qty: 2 SCREW TAP $10.99
Location: 37 Prev | Next Part: 12624177 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 66184700 *Qty: 1 FIN -Not as spare part -Replaced by 66184600 Call
Location: 39 Prev | Next Part: 66184900 *Qty: 1 SPRING -Not as spare part -Replaced by 66184600 Call
Location: 40 Prev | Next Part: 66200000 *Qty: 1 PIN -Not as spare part -Replaced by 66184600 Call
Location: 41 Prev | Next Part: 66184600 *Qty: 1 COMPLETE AIR DEFLECTOR $308.26

* Quantity shown indicates the number of pieces used in the diagram.
