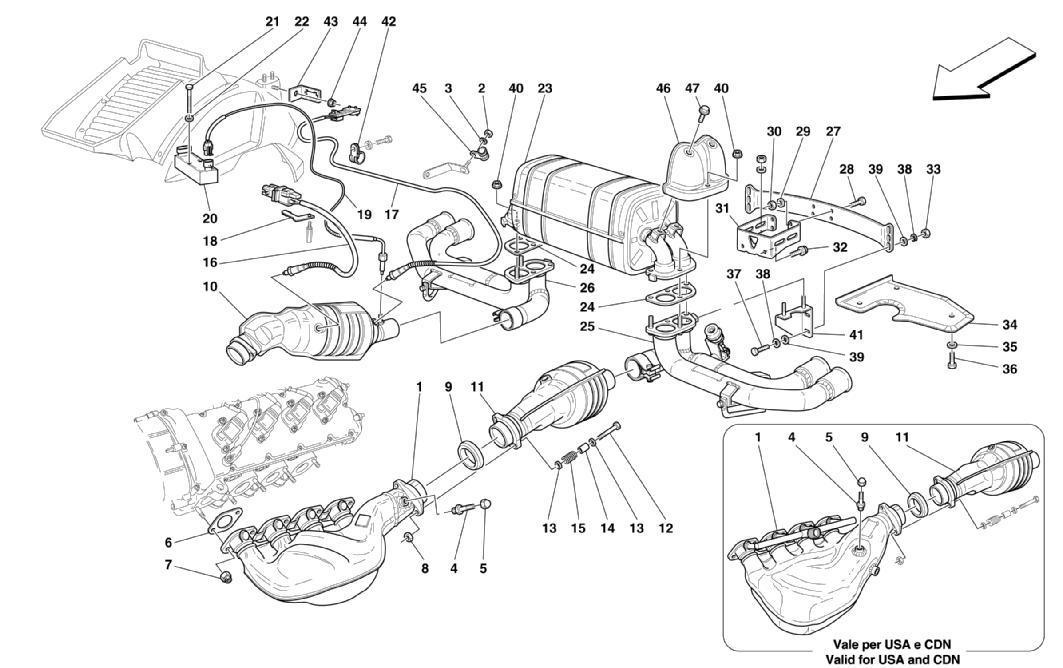

RACING EXHAUST SYSTEM -OPTIONAL-

Location Part # Quantity* Description Price Add To Cart
1 184393 1 R.H. EXHAUST MANIFOLD -Valid for USA,CDN and J Unavailable
1 189666 1 L.H. EXHAUST MANIFOLD -Not for USA, CDN and J $10,801.61
1 184394 1 L.H. EXHAUST MANIFOLD -Valid for USA, CDN and J Unavailable
1 189665 1 R.H. EXHAUST MANIFOLD -Not for USA, CDN and J $10,801.61
2 10725914 1 NUT $0.90
3 14498804 1 WASHER Superseded
4 144240 2 THREADED UNION $51.74
5 150595 2 CAP NUT $1.16
6 151064 8 GASKET $7.94
7 138392 16 NUT $1.50
8 114748 4 NUT $21.29
9 159914 2 GASKET $25.96
10 181966 1 R.H. CATALYST -Valid for USA, CDN e J Unavailable
10 199064 1 R.H. CATALYST -Not for USA, CDN and J $3,764.44
11 199065 1 L.H. CATALYST -Not for USA, CDN and J $3,764.44
11 181967 1 L.H. CATALYST -Valid for USA, CDN and J Unavailable
12 16044834 4 SCREW $0.90
13 12646778 8 WASHER Unavailable
14 114749 4 SPACER $5.16
15 111743 4 SPRING $16.46
16 199612 2 FRONT LAMBDA FEELER -Not for USA, CDN and AUS $211.10
16 182837 2 FRONT LAMBDA FEELER -Valid for USA, CDN and AUS $324.80
17 180915 2 REAR LAMBDA FEELER $276.06
18 199901 2 CONNECTOR FIXING BRACKET $9.60
19 193467 2 THERMOCOUPLE $324.78
20 179278 2 CATALYST TEMPERATURE CONTROL STATION $621.16
21 15210824 4 SCREW Unavailable
22 10519224 4 WASHER $0.90
23 195811 1 COMPLETE EXHAUST SILENCER Unavailable
24 177612 2 GASKET $120.16
25 199061 1 COMPLETE L.H. OUTLET PIPE Unavailable
26 199060 1 COMPLETE R.H. OUTLET PIPE $2,604.88
27 195803 1 SILENCER SUPPORT EXHAUST SIDE $324.78
28 16043324 4 SCREW $0.90
29 127496 4 WASHER $0.90
30 16100824 4 NUT Unavailable
31 212691 1 SILENCER SUPPORT GEAR SIDE $341.02
32 16043434 4 SCREW Unavailable
33 16100824 4 NUT Unavailable
34 196340 1 L.H. SHIELD $448.61
34 196339 1 R.H. SHIELD $448.61
35 12625224 4 WASHER Unavailable
35 12643724 2 WASHER Superseded
36 16043324 4 SCREW -M8x18 $0.90
36 10902424 2 SCREW -M6x18 Unavailable
37 16043534 4 SCREW Unavailable
38 12646778 8 WASHER Unavailable
39 127496 8 WASHER $0.90
40 179808 8 NUT $0.90
41 201155 1 R.H. BRACKET $224.29
41 201156 1 L.H. BRACKET $224.29
42 10441390 1 BRACKET WITH SHEATH Unavailable
43 178366 2 CONNECTORS FIXING BRACKET $5.01
44 14059211 1 NUT $0.90
45 10440990 1 BRACKET WITH SHEATH $1.97
46 203904 2 PROTECTION FOR MUFFLER $431.35
47 206161 4 SCREW $30.43

* Quantity shown indicates the number of pieces used in the diagram.
